Plastic Tweezer Tips

A5UFCF

Kit of 2 Carbon fiber tips and 3 screws - tips: straight, ultra fine, very sharp (for #5UFCFR.SA Tweezers). OAL: 40mm - 1.57". ESD safe

Documents

Datasheet Download Tip material TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

Kit of 2 Carbon Fiber tips and 3 screws for type 5UFCF tweezers is suitable to applications which require holding a small component firmly. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.

Product Details

Category

Plastic Tweezer Tips

Tip style

5

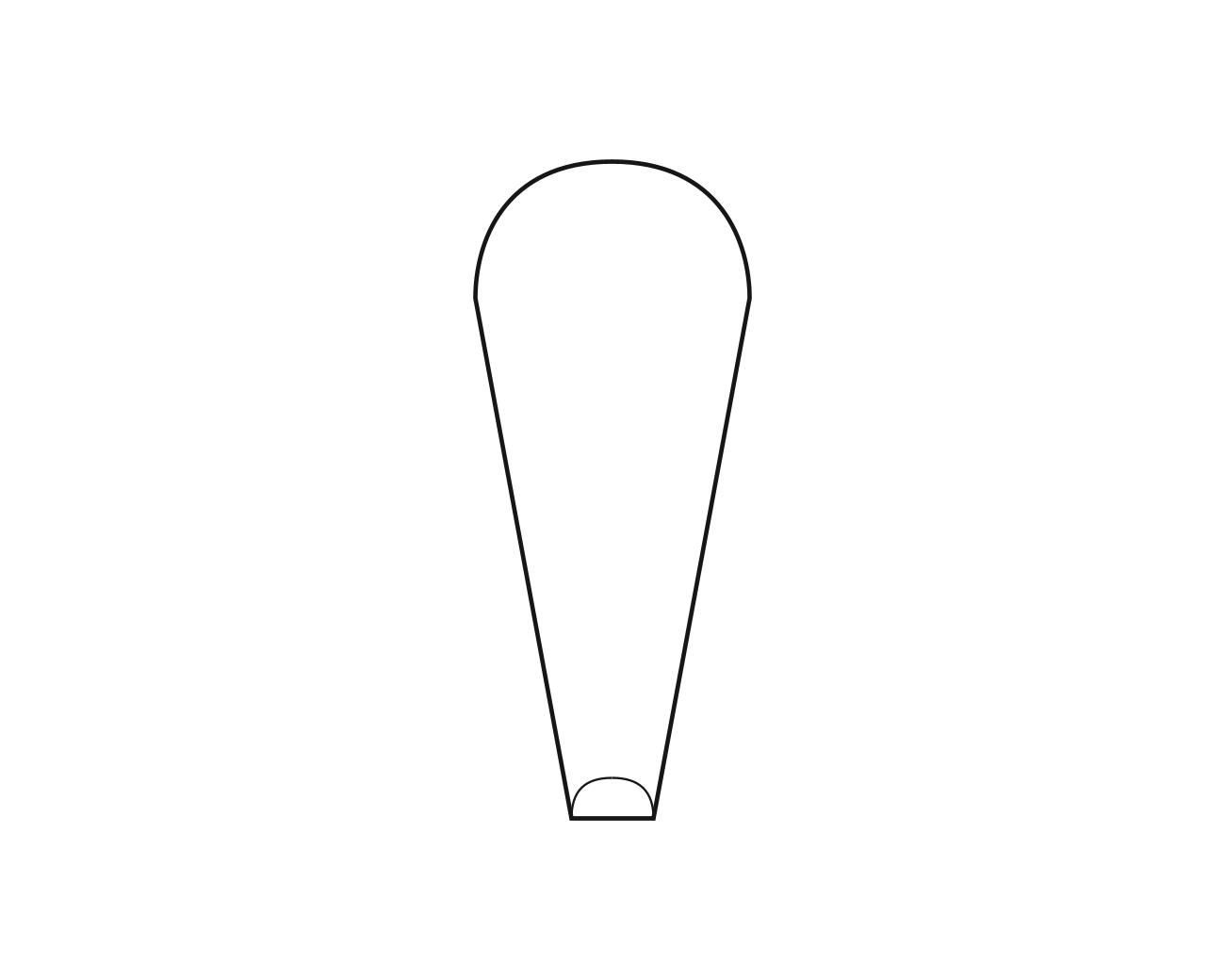

Tip features

ultra fine, very sharp

Tip type

straight

Reverse action

no

ESD safe

yes

Body material

CF

Tip material

CF

Product OAL (mm - in)

40.00 - 1.575

Product width (mm - in)

8.00 - 0.315

Product height (mm - in)

3.50 - 0.138

Tip length (mm - in)

40.00 - 1.575

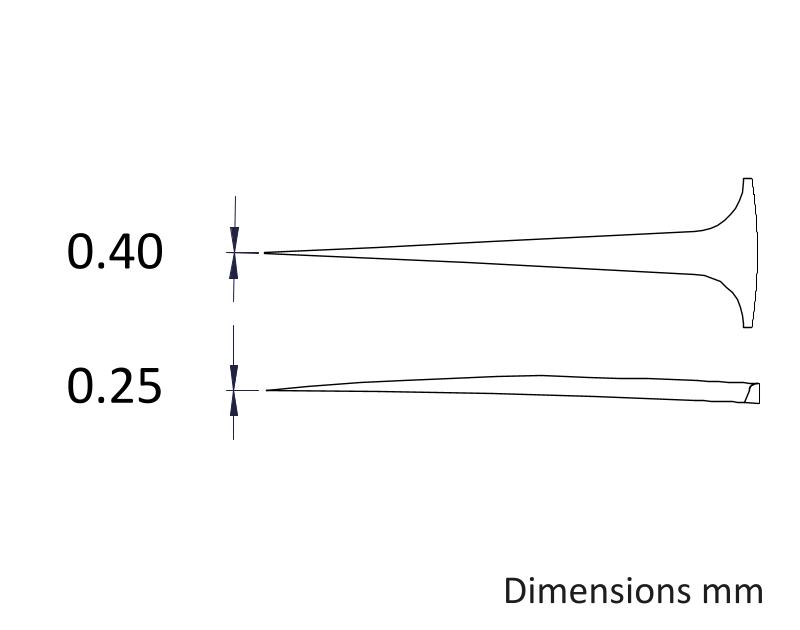

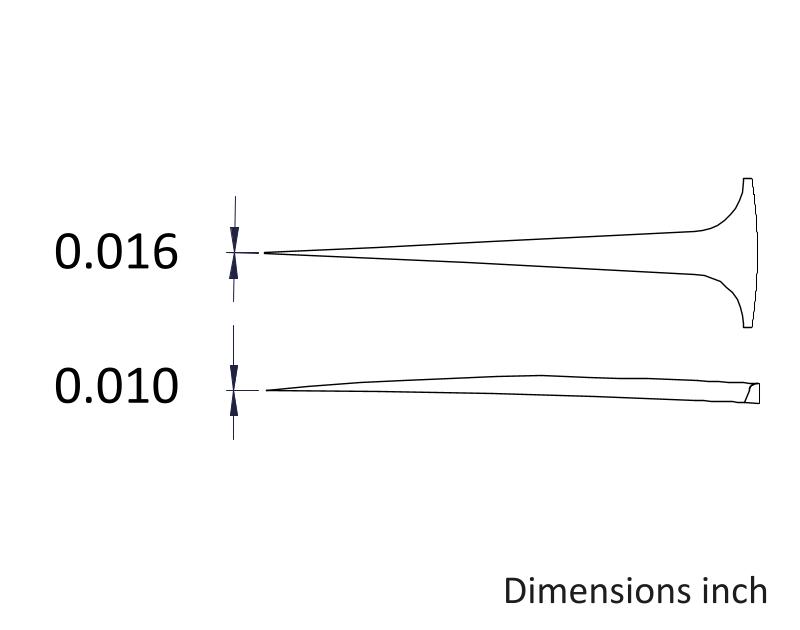

Tip thickness (mm - in)

0.25 - 0.01

Tip width (mm - in)

0.40 - 0.016

Net weight (g-lb)

1.0 - 0.002

RoHS compliant

yes
