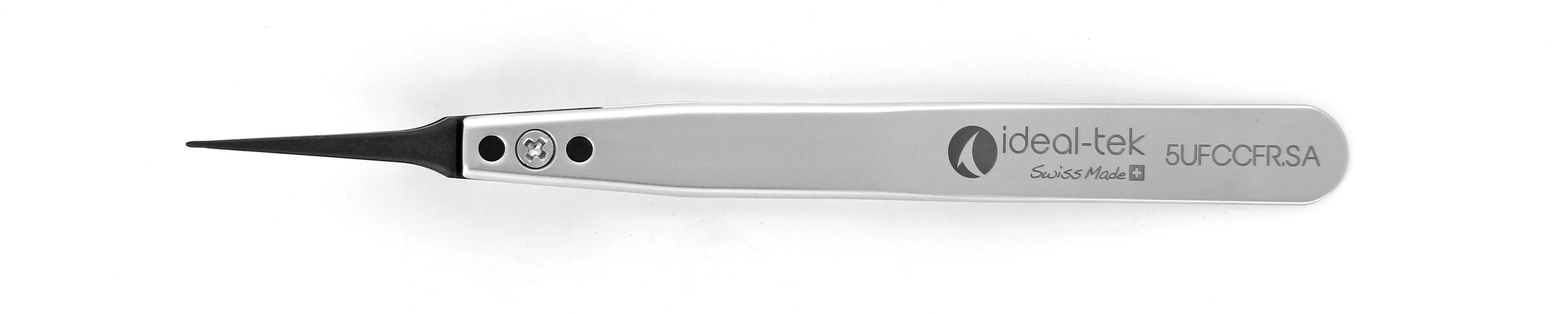

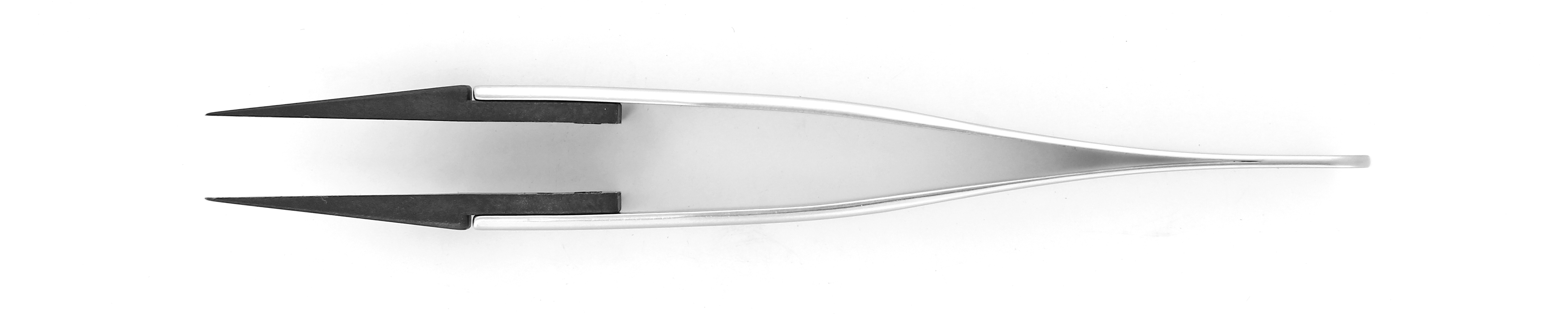

Plastic Replaceable Tip Tweezers

5UFCCFR.SA.1

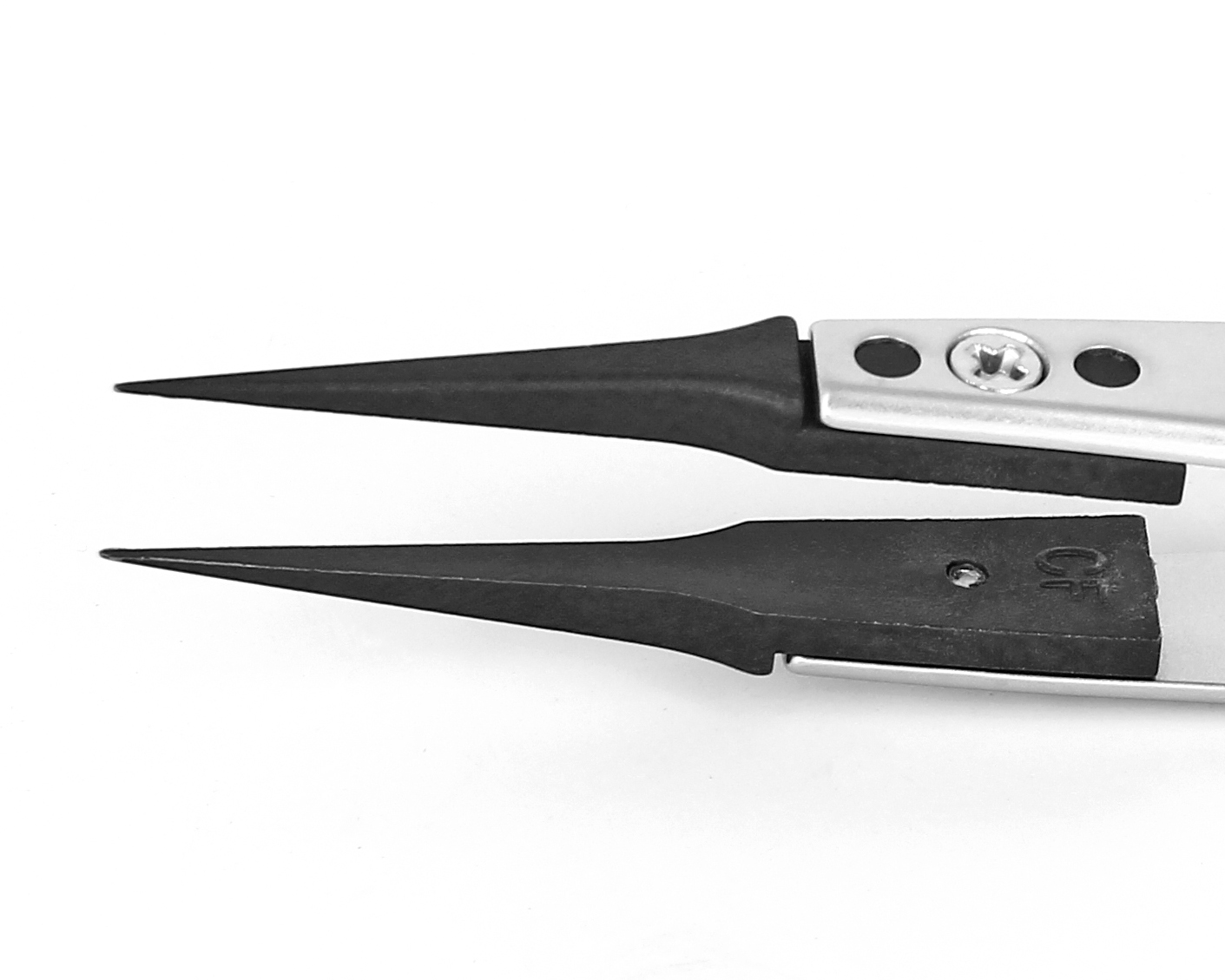

Plastic replaceable tip tweezers - Carbon fiber - tips: ultra fine, tapered for maximum visibility, very sharp (#A5UFCF). OAL: 115mm - 4.53". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 5UFCF Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
5
Tip features
ultra fine, very sharp
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
115.00 - 4.528
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
25.00 - 0.984

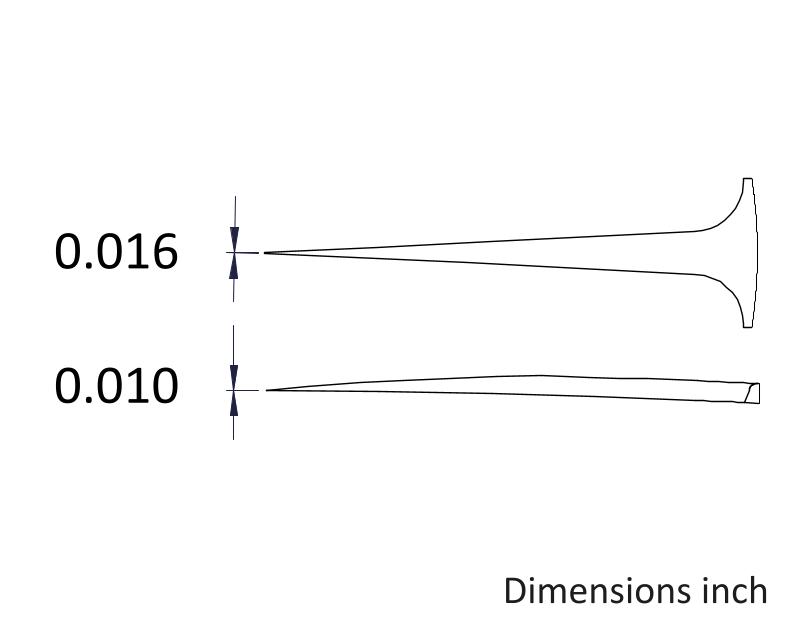

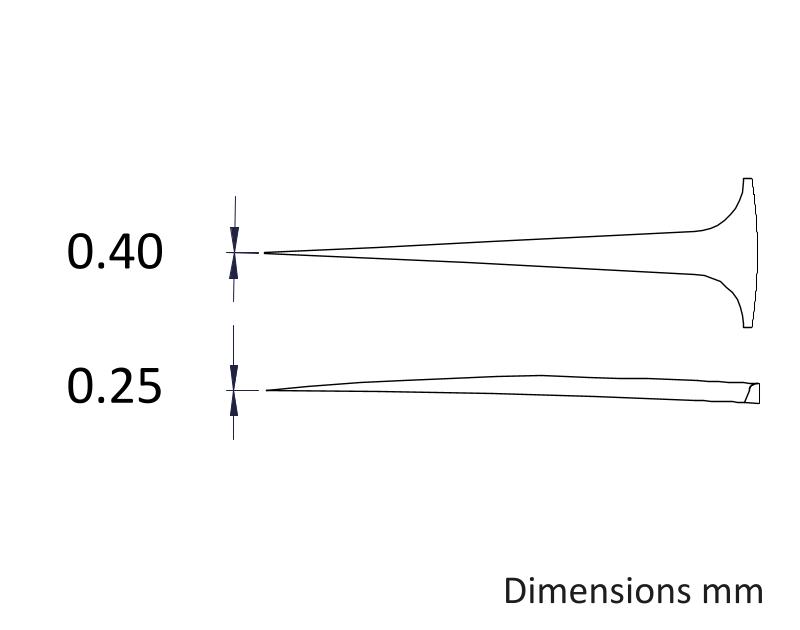

Tip thickness (mm - in)
0.25 - 0.01
Tip width (mm - in)
0.40 - 0.016
Tip opening gap (mm - in)
8.0 - 0.315
Net weight (g-lb)
14.0 - 0.031
RoHS compliant
yes
