Wafer Tweezers

8WTC1.SA.1

Wafer tweezers - Anti-Acid/Anti-Mag SS, conductive PTFE tips - serrated handles - tips: handling 8´, top lip, stepped bottom paddle. OAL: 150mm - 5.91". ESD safe

Documents

Datasheet Download Tip material TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

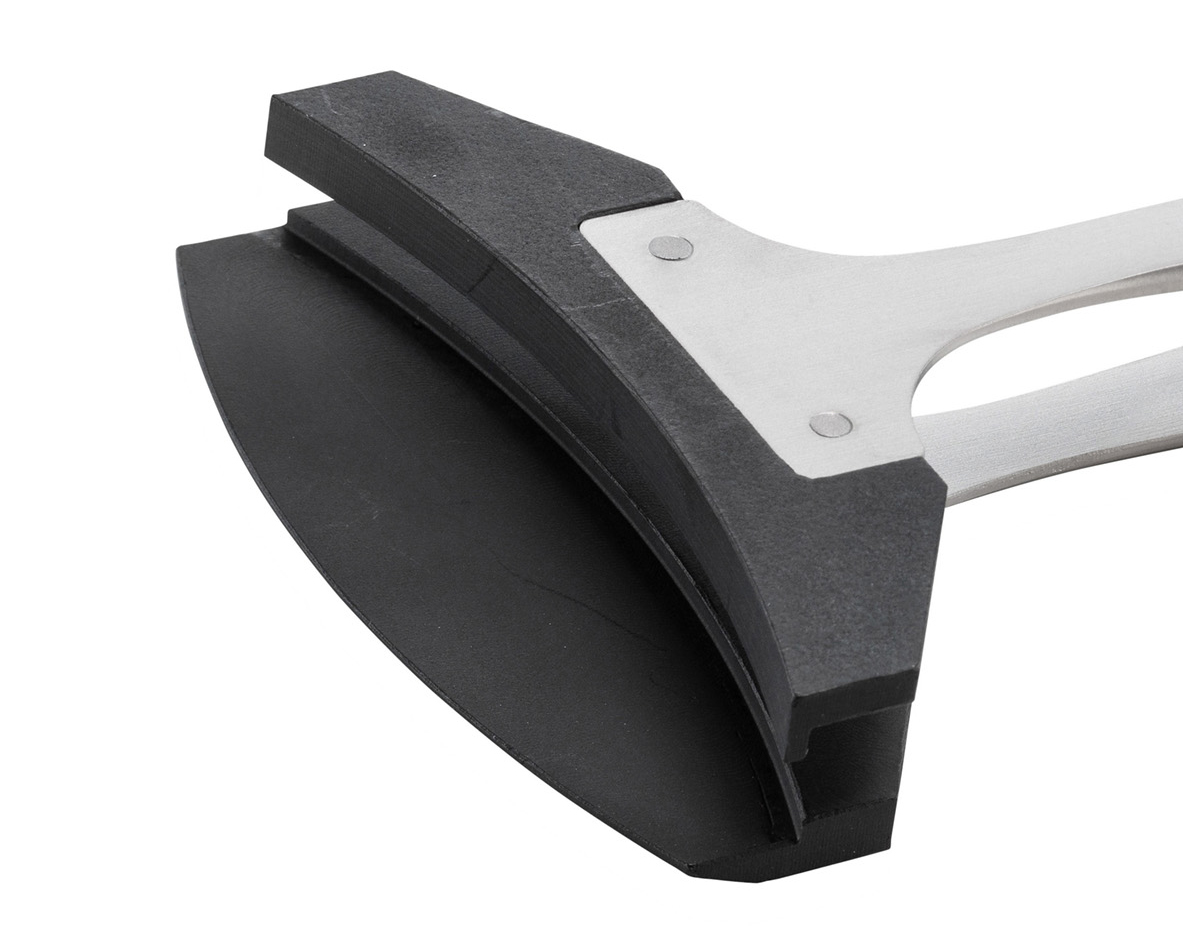

Type 8WTC1 Plastic tip tweezers are suitable to delicate applications which require holding a 8-inch flat component firmly. The conductive PTFE material (equivalent to Teflon�) provides the tweezers with ESD and excellent non-scratching properties combined with excellent chemical resistance.

Product Details

Category

Wafer Tweezers

Tip style

8W

Tip features

wafer

Tip type

straight

Reverse action

no

Handle serration type

line serrated

Component diameter/ cutting capacity (in)

8

ESD safe

yes

Body material

SA

Tip material

TC

Body coating/ finishing

Sandblasted

Product OAL (mm - in)

150.00 - 5.906

Product width (mm - in)

65.00 - 2.559

Product height (mm - in)

16.00 - 0.63

Tip thickness (mm - in)

4.60 - 0.181

Tip width (mm - in)

65.00 - 2.559

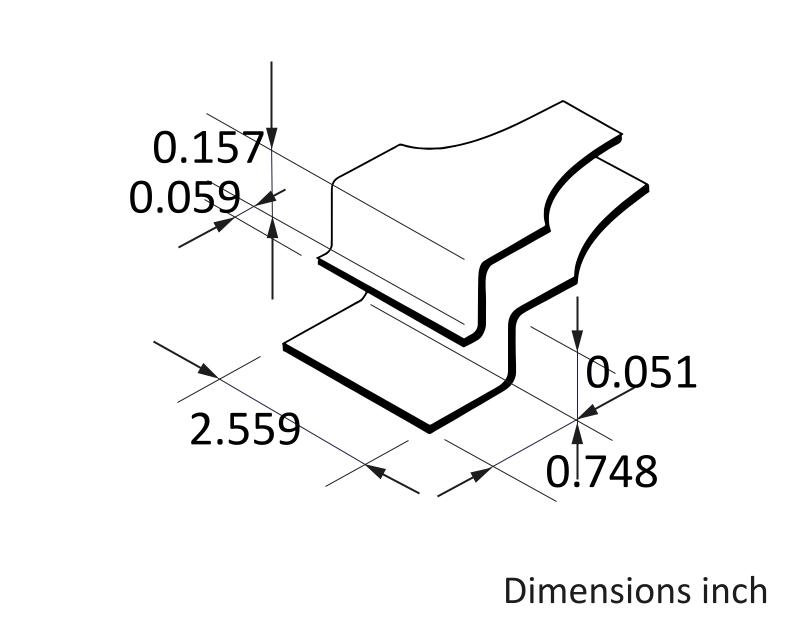

Wafer B (mm - in)

19.0 - 0.748

Wafer C (mm - in)

1.3 - 0.051

Wafer D (mm - in)

4.0 - 0.157

Wafer E (mm - in)

1.5 - 0.059

Tip opening gap (mm - in)

6.0 - 0.236

Net weight (g-lb)

44.0 - 0.097

RoHS compliant

yes
