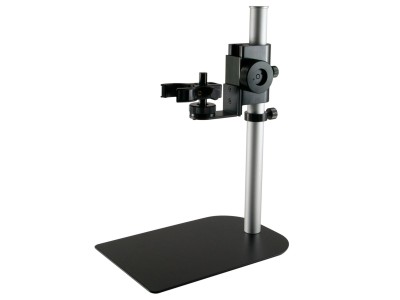

MS35B Visual inspection | Digital Microscopes Vertical (X) stand for microscopes
Square metal base with column and support providing several adaptable heights. The MS35B is a stable vertical desktop stand that was designed to be used with the Dino-Lite digital microscopes.

It provides 360 degrees of horizontal axis rotational perspective and as much as 20 cm of vertical working distance from the object. The Dino-Lite holder is mounted onto a ball and socket jointed post, which allows for a maximum of 45 degrees of adjustable lateral viewing angles. The ball and socket jointed post is mounted onto a dove tail slider for additional focus and magnification support. The slider can be positioned on any point of the pole for the various focal distances of the Dino-Lite digital microscope. The precision components of this stand provide smooth adjustment and positioning in a well balanced and stable ergonomic design. The MS35B is manufactured from a combination of resilient stainless steel and lightweight recycled aluminum. The MS35B is very portable yet stable stand solution.

Related products
Information request about this product
Market segment
Electronics
Watchmaking & Jewellery
Microscopy & Laboratory
Medical Device & Surgical
Beauty
Product Details
Title
Value
Market - MEDICAL DEVICE
yes
Market - LIFE SCIENCE & MICROSCOPY
yes
Market - ELECTRONICS
yes
Market - WATCHMAKING & JEWELRY
yes
Category
Digital Microscopes
Kit
no
Title
Value
ESD safe
no
Product OAL (mm - in)
205.00 - 8.071
Product width (mm - in)
125.00 - 4.921
Product height (mm - in)
305.00 - 12.008
Net weight (g-lb)
1.100 - 0.002
RoHS compliant
yes
