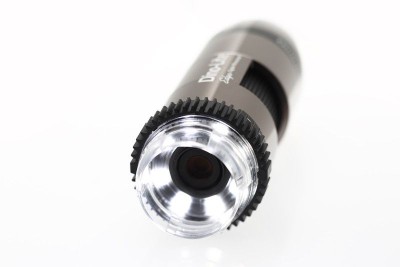

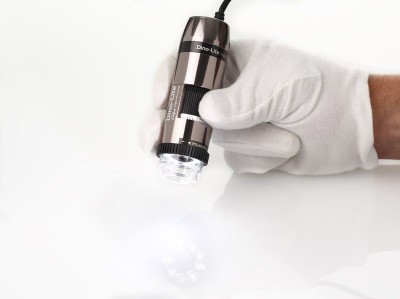

AM7515MZTL

Visual inspection | Digital Microscopes

Dino-Lite Edge, LWD, IR, Polarizer, FLC/AMR, 10-140x, 5Mpx, Aluminium

With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features such as Flexible LED Control (FLC) and full aluminum body, the Dino-Lite AM7515MZTL is a marvel of technology and the best choice for the high-demanding professional. The Dino-Lite AM7515MZTL offers superb image quality and color reproduction in a robust, compact and appealing housing.

The AM7515MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 – 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required.

The extra working distance and larger field of view make this model an ideal solution for tasks such as repair, rework or assembly or for working with bulky or fragile objects that cannot be touched. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The AMR function is of particular importance when the measurement functions are frequently used.

The main features of the AM7515MZTL are:
5 Megapixel Edge sensor, Long Working Distance (LWD) 10-140x magnification, larger Field Of View (FOV) integrated polarizer, aluminum housing, Automatic Magnification Reading (AMR), Flexible LED Control (FLC), extensive measurement functions, Calibration, exchangeable front caps and more.

Documents
Related products
Information request about this product
Market segment
Electronics
Watchmaking & Jewellery
Microscopy & Laboratory
Medical Device
Beauty
Product Details
Title
Value
Category
Digital Microscopes
Kit
no
Title
Value
ESD safe
no
Net weight (g-lb)
125 - 0.276
