TEK-ME Carbon Steel Hand tools

PC170WE

Tek-Me cutters - Medium size head with lead catcher, flush. OAL: 140mm - 5.51". ESD safe

Documents

Datasheet Download

Where to buy

Information Request

Information request about This product

Where to buy

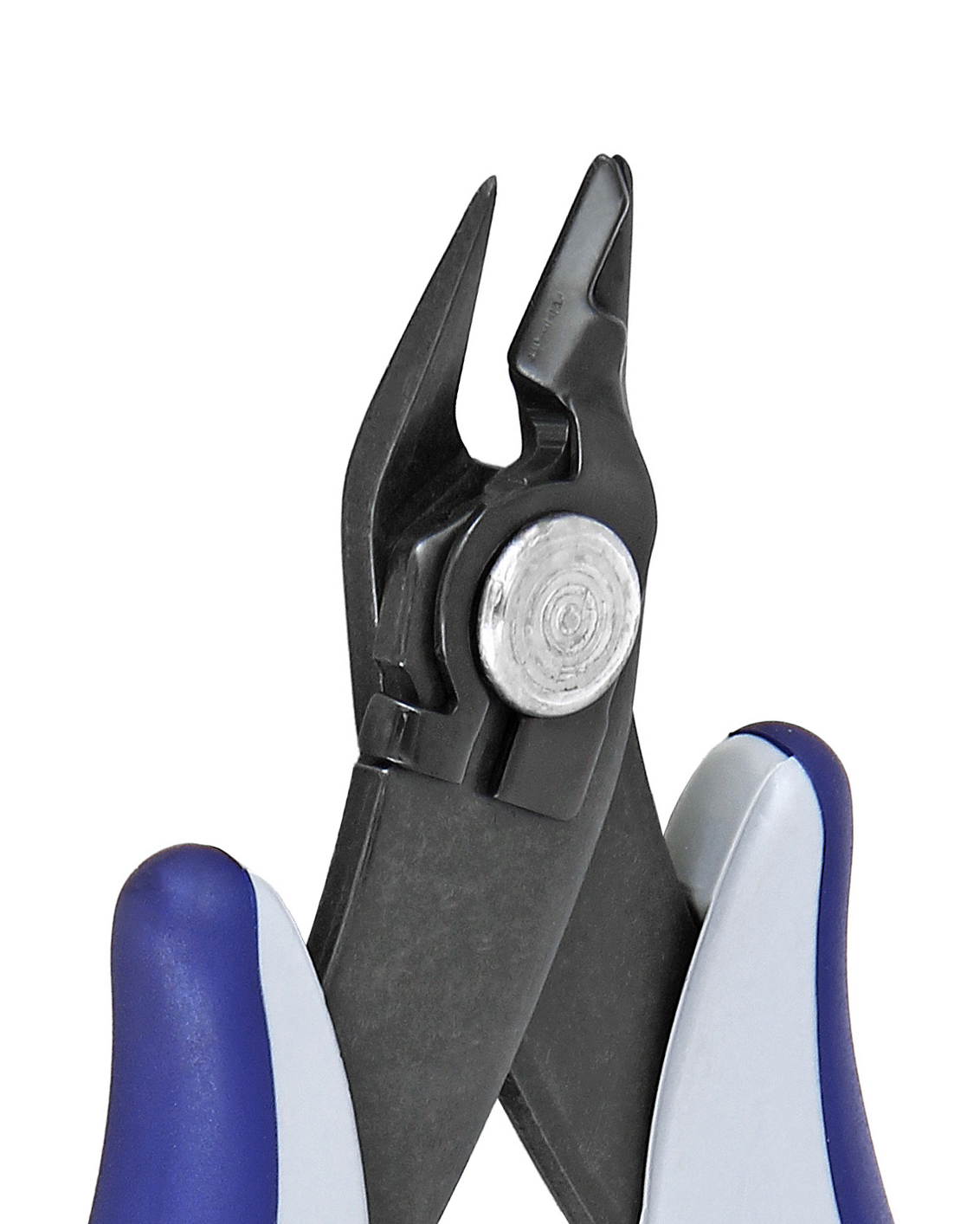

The PC170WE is a flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. This cutter is specially designed to reduce cutting effort while maintaining the same characteristics of PC25. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges. The blades are also equipped with a lead catcher safety clip.

Product Details

Category

TEK-ME Carbon Steel Hand tools

ESD safe

yes

Body material

C70

Body coating/ finishing

Phosphated

Product OAL (mm - in)

138.00 - 5.433

Product width (mm - in)

85.00 - 3.346

Product height (mm - in)

13.00 - 0.512

Head shape

Shear

Head width (mm - in) - C

13.50 - 0.531

Size/type

Angled Medium

Cutting edges

Full-Flush

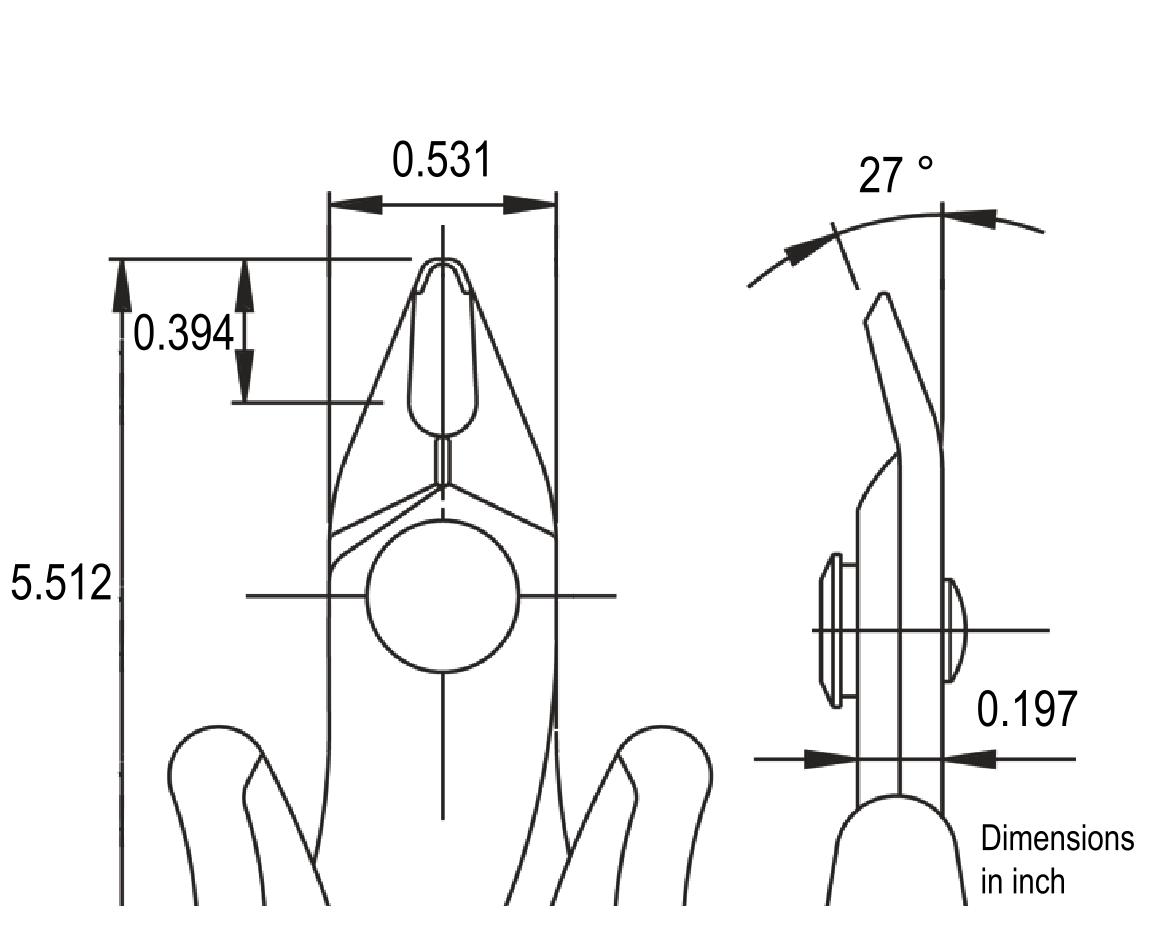

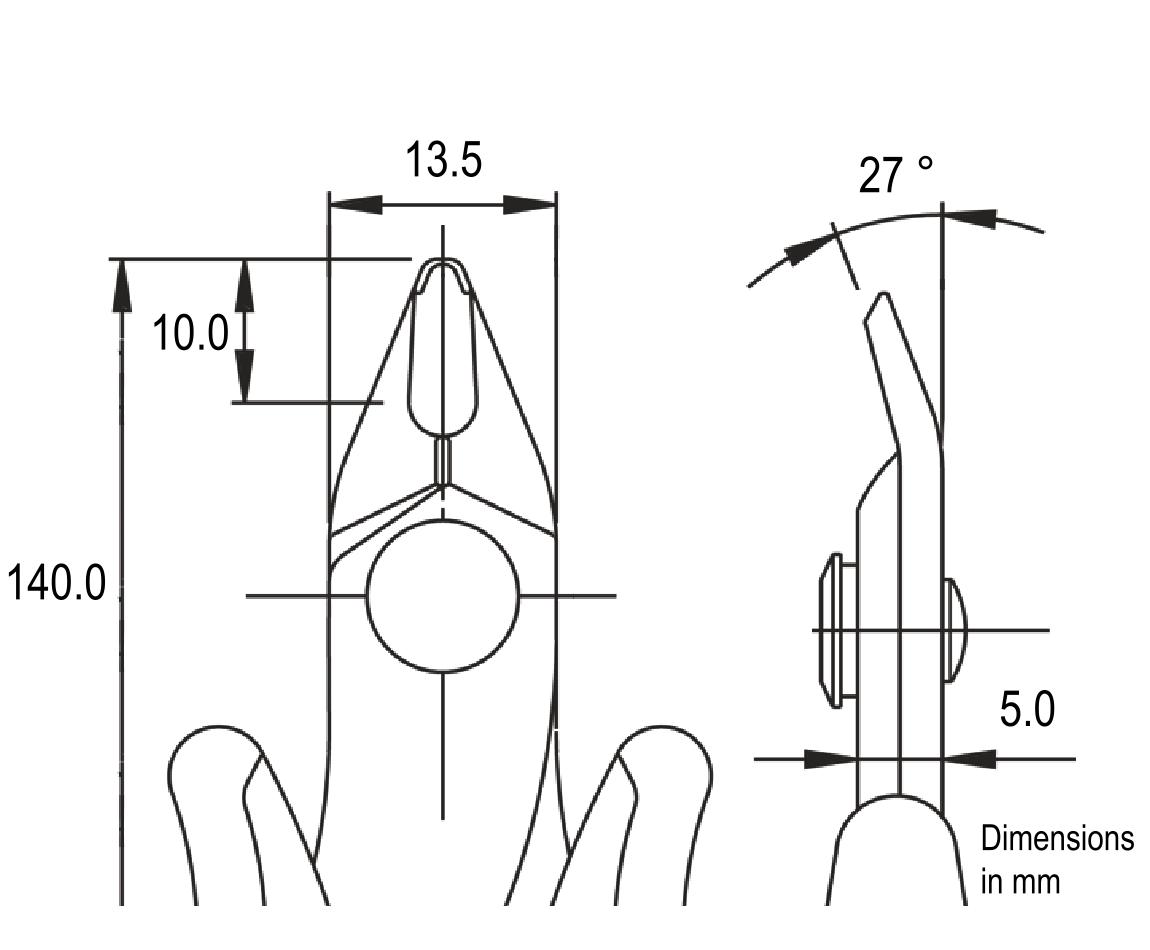

OAL (mm - in) - A

140.00 - 5.512

Head/Jaw length - B (mm - in)

10.00 - 0.394

Head thickness (mm - in) - D

5.00 - 0.197

Tip thickness - F (mm - in)

2.00 - 0.079

Cutting capacity soft (mm)

1.3

Cutting capacity soft (AWG)

16

Net weight (g-lb)

67.0 - 0.148

RoHS compliant

yes
