TEK-ME Carbon Steel Hand tools

PC25E

Tek-Me cutters - Medium size head, flush. OAL: 138mm - 5.43". ESD safe
Documents
Datasheet Download
Where to buy
Information Request
Information request about This product
Where to buy

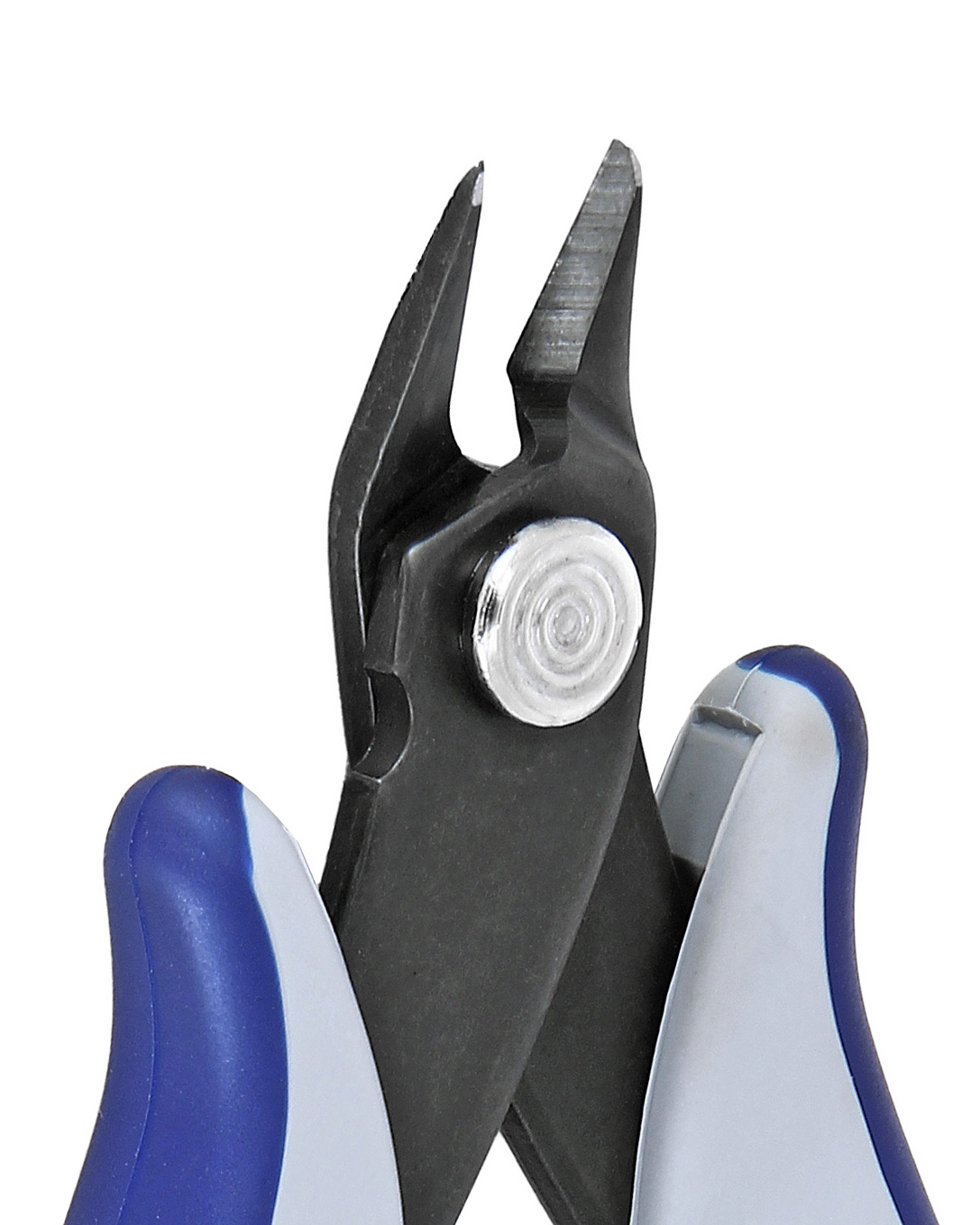

The PC25E is a flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Product Details
Category
TEK-ME Carbon Steel Hand tools
ESD safe
yes
Body material
C70
Body coating/ finishing
Phosphated

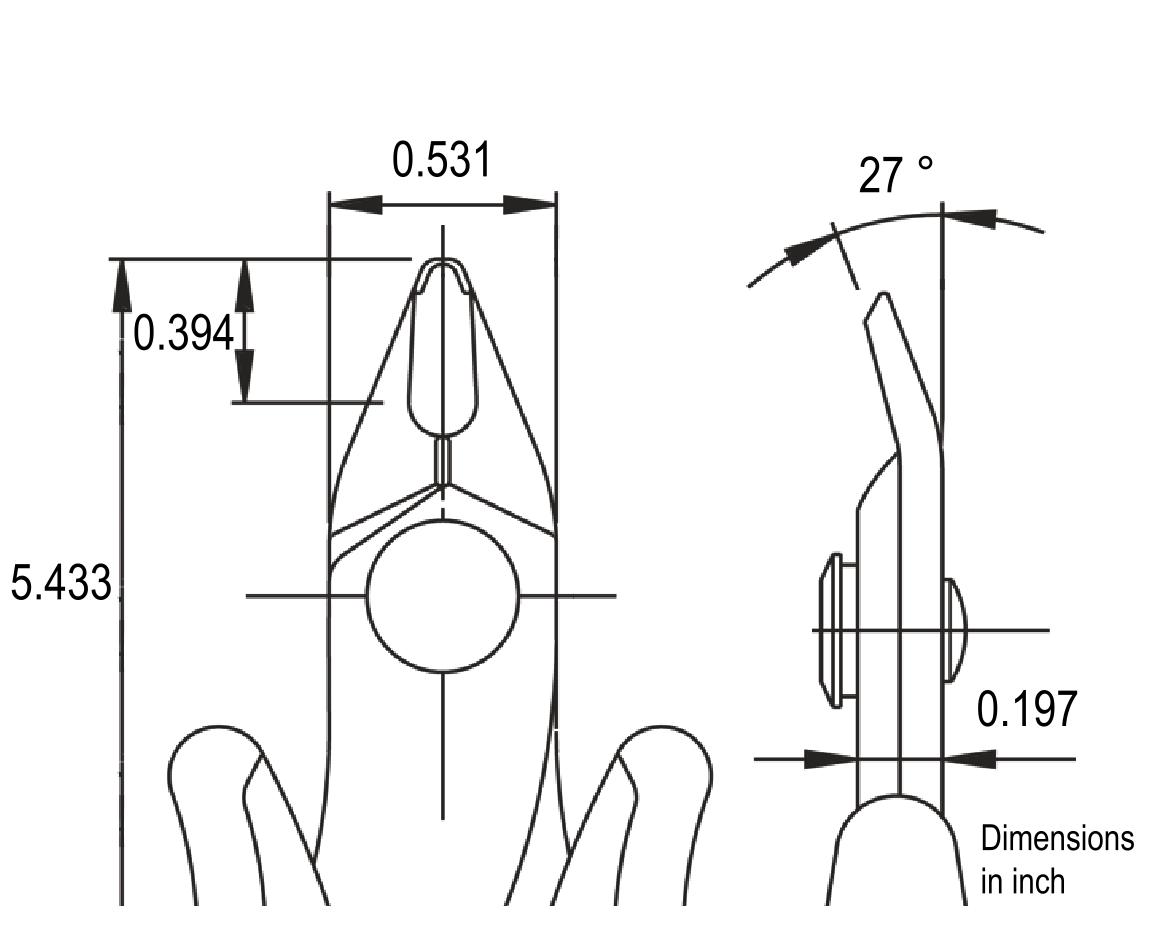

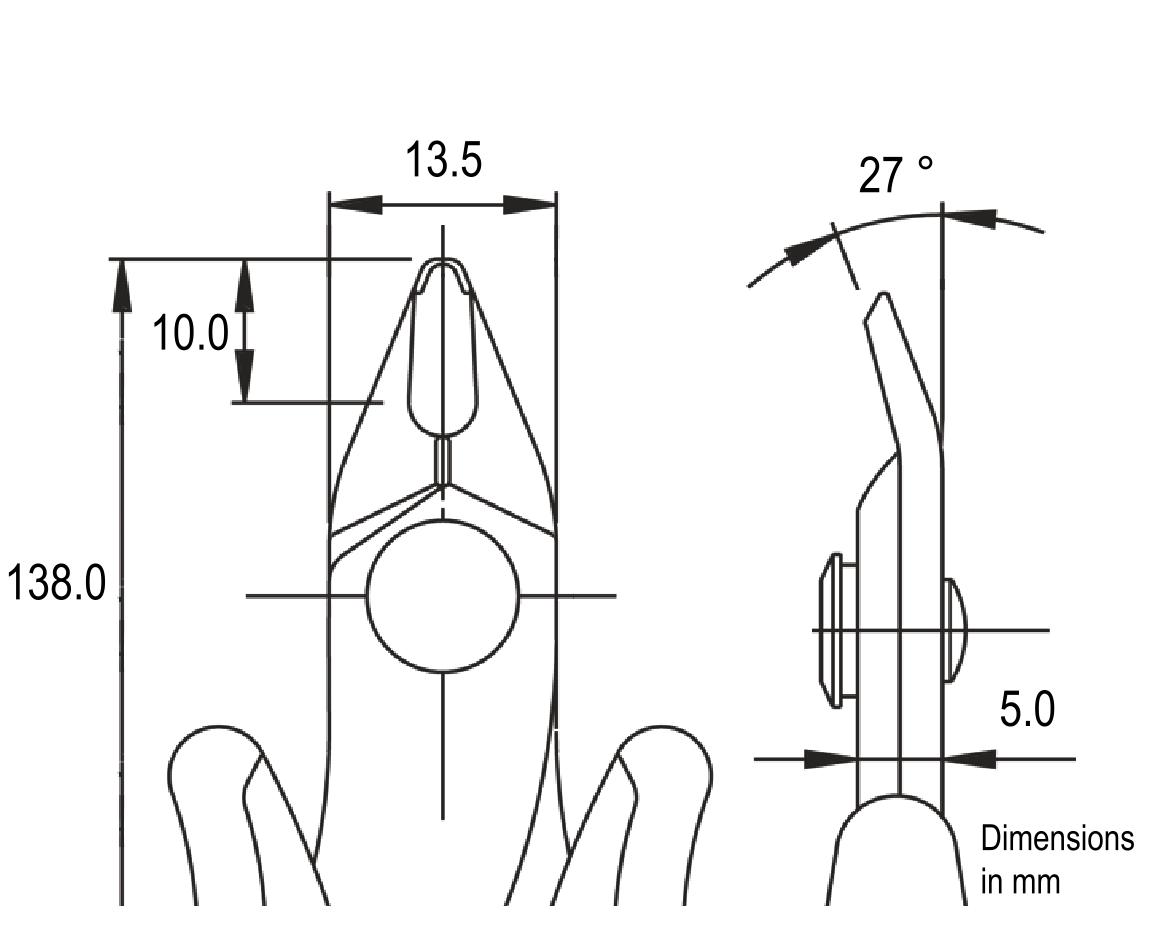

Product OAL (mm - in)
138.00 - 5.433
Product width (mm - in)
85.00 - 3.346
Product height (mm - in)
13.00 - 0.512
Head shape
Shear
Head width (mm - in) - C
13.50 - 0.531
Size/type
Medium
Cutting edges
Full-Flush
OAL (mm - in) - A
138.00 - 5.433
Head/Jaw length - B (mm - in)
10.00 - 0.394
Head thickness (mm - in) - D
5.00 - 0.197
Tip thickness - F (mm - in)
2.00 - 0.079
Cutting capacity soft (mm)
1.3
Cutting capacity soft (AWG)
16
Net weight (g-lb)
63.0 - 0.139
RoHS compliant
yes
