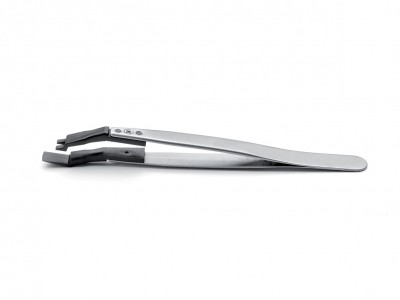

2WFCPR@.SA.1 Tweezers | Plastic Replaceable Tip Tweezers Plastic replaceable tip tweezers - Carbon PEEK - tips: handling 2'', fine, round, strong top fingers, stepped bottom paddle. OAL: 130mm. ESD safe

Plastic replaceable tip tweezers for 2 inches wafer.

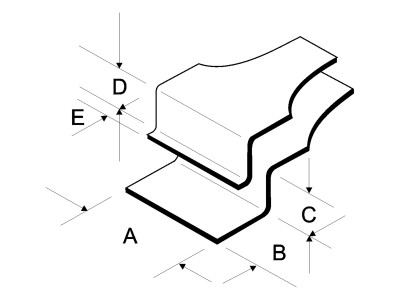

A 0.25''  6.6 mm
B 0.41''  10.5 mm
C 0.08''  2.0 mm
D 0.14''  3.5 mm
E 0.18''  4.5 mm

Documents
Tip material TDS Body material TDS
Related products
Information request about this product
Market segment
Electronics
Watchmaking & Jewellery
Microscopy & Laboratory
Medical Device
Beauty
Product Details
Title
Value
Market - MEDICAL DEVICE
yes
Market - LIFE SCIENCE & MICROSCOPY
yes
Market - ELECTRONICS
yes
Market - WATCHMAKING & JEWELRY
yes
Category
Plastic Replaceable Tip Tweezers
Kit
no
Tip style
2WF
Bent / angled / curved tip (y/n)
no
Reverse action
no
Handle serration(y/n)
no
Tip serration (y/n)
no
Locking system
no
Title
Value
Component diameter (mm)
2.00
ESD safe
yes
Body material
SA
Tip material
CP
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
20.00 - 0.787
Tip length (mm - in)
40.00 - 1.575
Tip thickness A (mm - in)
0.50 - 0.02
Tip width B (mm - in)
6.60 - 0.26
Tip opening gap (mm - in)
10.00 - 0.394
Related products
Article code
Family
Category
Full description
Tweezers
Plastic Tweezer Tips
Kit of 2 Carbon PEEK tips and 3 screws - tips: fine, round, strong top fingers, stepped bottom paddle. OAL: 40mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 PVDF tips and 3 screws - tips: fine, round, strong top fingers, stepped bottom paddle. OAL: 40mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 Carbon PEEK tips and 3 screws - tips: handling 4'', flat round, stepped bottom paddle. OAL: 40mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 PVDF tips and 3 screws - tips: handling 4'', flat round, stepped bottom paddle. OAL: 40mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 Carbon PEEK tips and 3 screws - tips: curved flat, round. OAL: 41mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 Carbon PEEK tips and 3 screws - tips: straight, strong, thick. OAL: 40mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 Carbon fiber tips and 3 screws - tips: thin, angled head. OAL: 36mm. ESD safe
Tweezers
Plastic Tweezer Tips
Kit of 2 PVDF tips and 3 screws - tips: straight, strong, thick. OAL: 40mm. ESD safe
