Micro-shears and Micro-pliers

EXLX

Micro Ergo-tek - Micro-Shear Flush Cutter - Polished. OAL: 127mm - 5.00". ESD safe
Documents
Datasheet Download Grip handle material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy

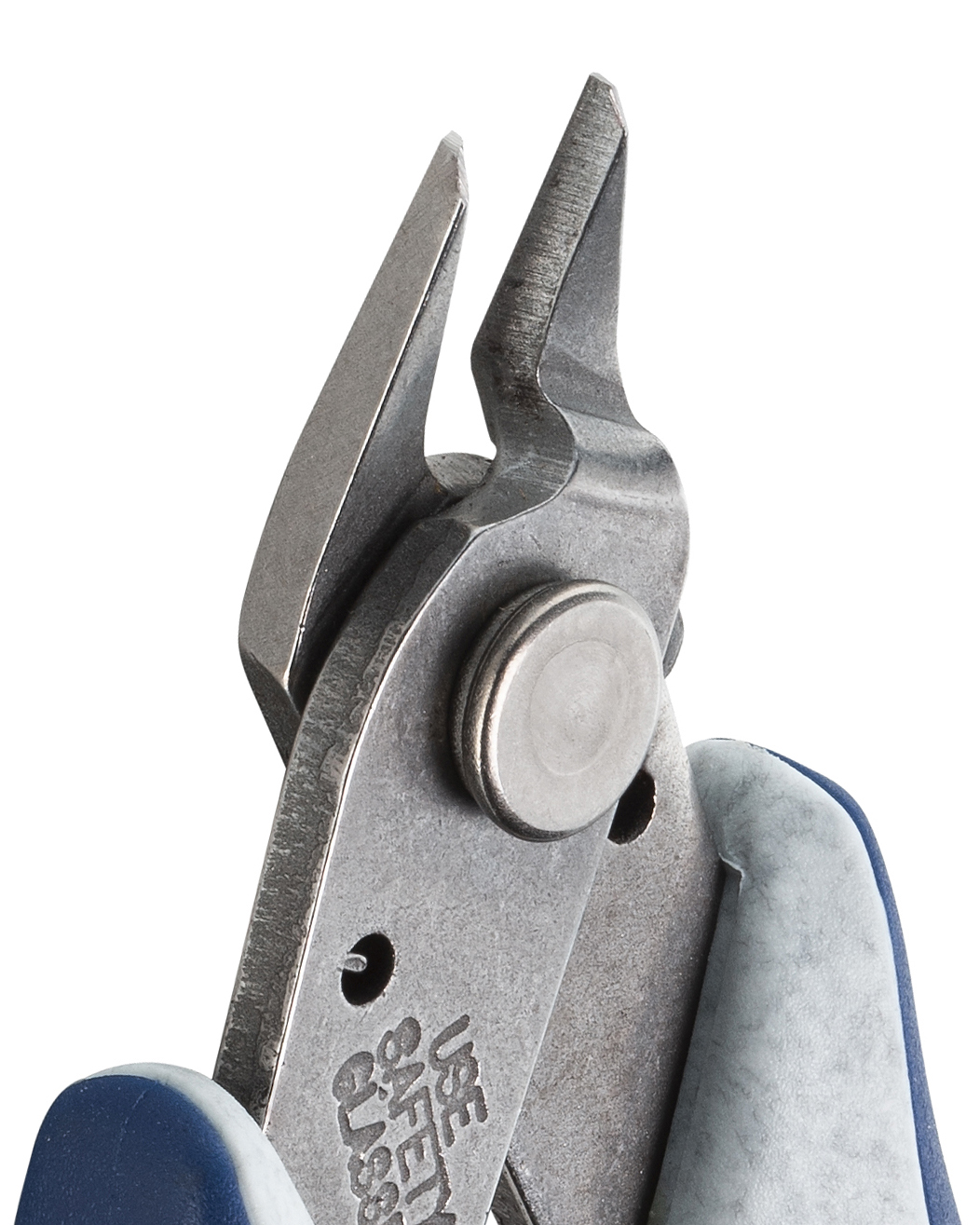

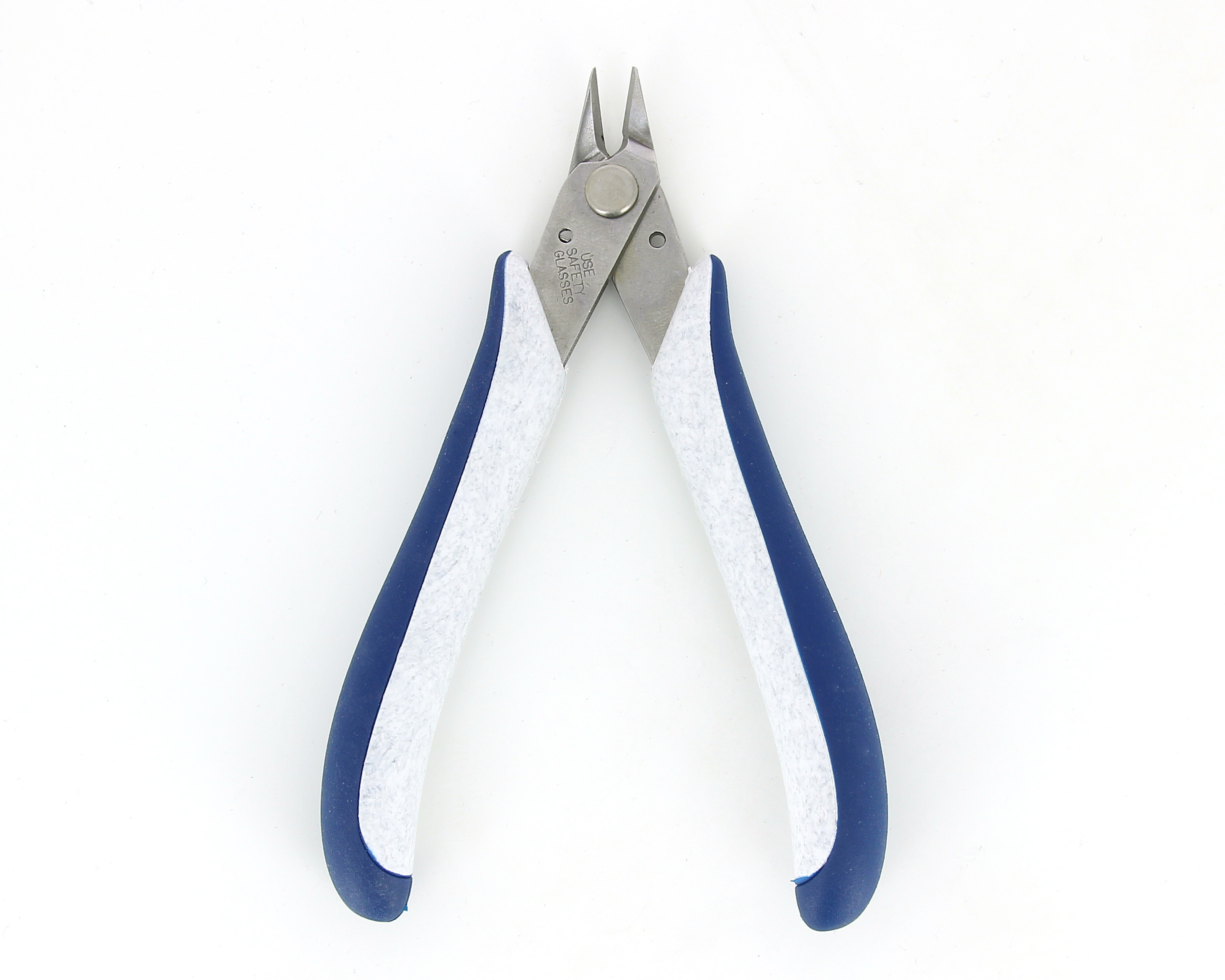

EXLX is a micro shear flush cutter with an ultra slim profile, also equipped with extra tough high Carbon Steel blades, which allow access in high density areas. EXLX is sized for smaller hands and maximum maneuverability. Its shears employ a unique technology to carry out a clean and smooth cut. Providing this cutter with anti-shock shear cut features, in fact, this system greatly reduces mechanical shock to the component and requires the operator less effort to perform the cut. The shears are equipped with an ESD Ergo-tek handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Product Details
Category
Micro-shears and Micro-pliers
Reverse action
no
ESD safe
yes
Body material
C
Grip handle material
TPE + PP
Product width (mm - in)
50.00 - 1.969
Product height (mm - in)
13.00 - 0.512
Degree of bending
20.0
Head shape
Shear
Head width (mm - in) - C
14.00 - 0.551
Size/type
Micro
Cutting edges
Flush
OAL (mm - in) - A
127.00 - 5
Head/Jaw length - B (mm - in)
9.00 - 0.354
Head thickness (mm - in) - D
2.50 - 0.098
Cutting capacity soft (mm)
1.29
Cutting capacity soft (AWG)
16
Net weight (g-lb)
54.0 - 0.119
RoHS compliant
yes
