Full Plastic Tweezers

709.CF

Full plastic tweezers - Carbon fiber - tips: angled, very fine, short, flat. OAL: 115mm - 4.53". ESD safe
Documents
Datasheet Download Body material TDS: Download
Where to buy
Information Request
Show kits
Information request about This product
Where to buy
Type 709 full Plastic tweezers are suitable to applications which require holding a very fragile flat component. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Full Plastic Tweezers
Tip style
709
Tip features
very fine, short, flat
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
CF
Product OAL (mm - in)
115.00 - 4.528
Product width (mm - in)
11.50 - 0.453
Product height (mm - in)
14.00 - 0.551

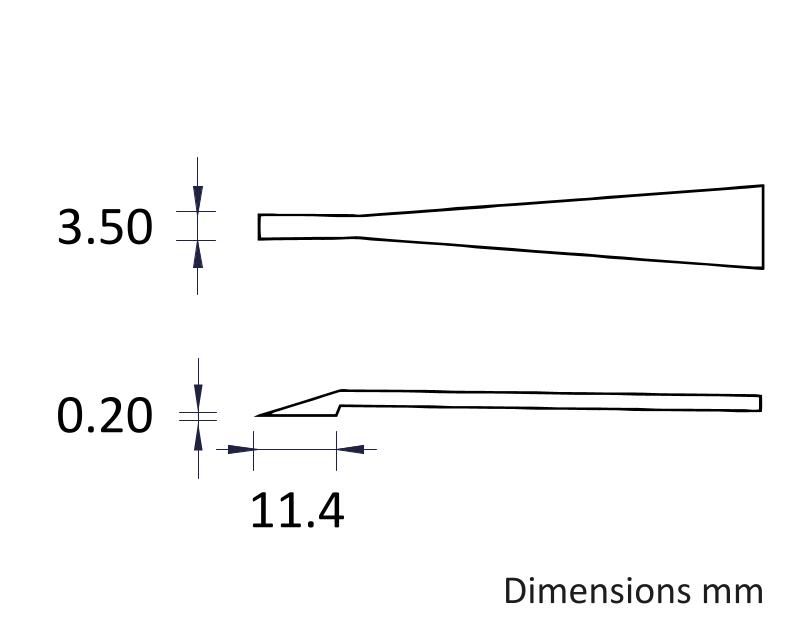

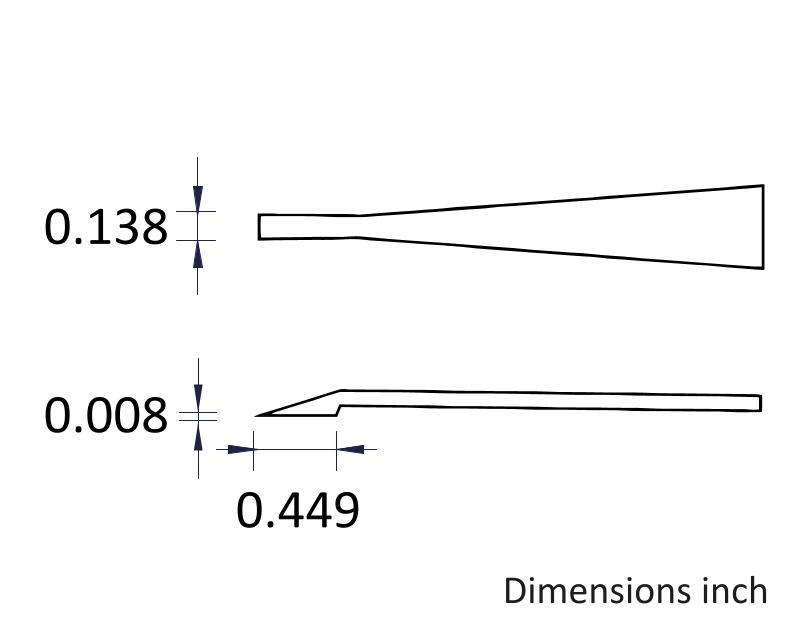

Tip length (mm - in)
11.40 - 0.449
Tip thickness (mm - in)
0.20 - 0.008
Tip width (mm - in)
3.50 - 0.138
Net weight (g-lb)
4.0 - 0.009
RoHS compliant
yes
