Loupes and Magnifiers

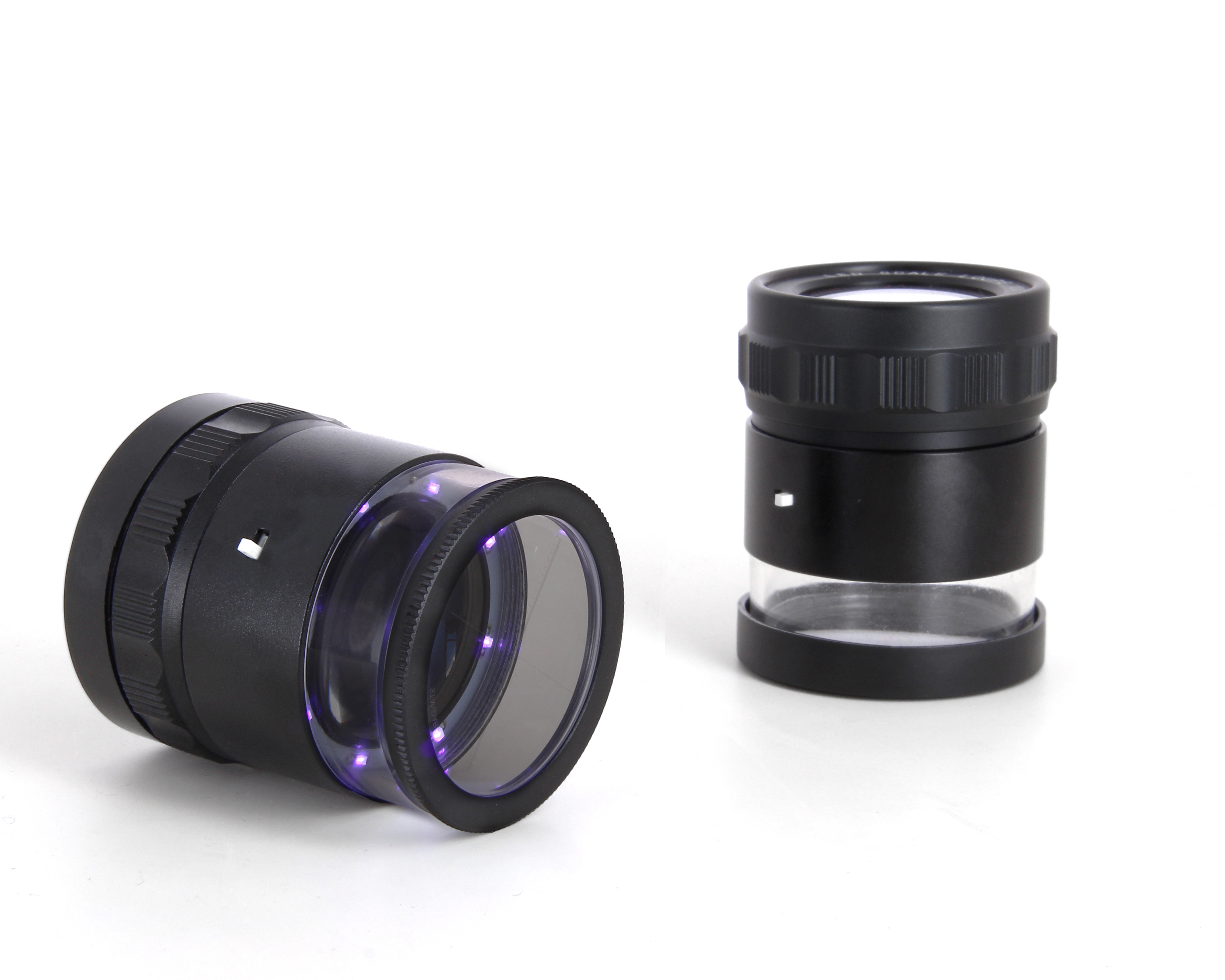

LE-003UV

Loupe - 10X, 8 UV LEDs, 395 nm, with mm scale
Documents
Datasheet Download
Where to buy
Information Request
Information request about This product
Where to buy
  • Magnification: 10x
  • Number of Ultra Violet LEDs: 8
  • Life time of LEDs: 10000 hours
  • Field of view: 30 mm
  • Wavelength of UV: 395 nm
  • Lens diameter: 30 mm
  • Number of lenses: 3 double lenses
  • Metric scale: smallest graduation 0.1 mm, total measurable length 30 mm
  • Focus ring: yes
  • Weight: 115 g
  • Dimension: 45x45x62 mm

The lens and the scale are made of glass.

Precautions:
  • Do not look into the sun through the lens directly, to prevent the damage of eyes.
  • Do not leave the magnifier lens exposed to sunlight directly, to prevent the ignition.
  • Do not leave the magnifier exposed to moisture and heat.
  • Do not mix the battery type when using or replacing it.
  • Do not remove or tamper LED parts
  • Clean the lens using a soft cloth. Do not use solvents or abrasives, etc.
  • Protect the magnifier from impacts.
  • To prevent the disrepair, do not apply excessive pressure to the magnifier.

Loupes and magnifiers leaflet
Product Details
Category
Loupes and Magnifiers
Reverse action
no
ESD safe
no
Magnification
10X
Special features
8 UV LEDs - 395 nm - mm scale
Product OAL (mm - in)
45.00 - 1.772
Product width (mm - in)
45.00 - 1.772
Product height (mm - in)
62.00 - 2.441
Net weight (g-lb)
115.0 - 0.254
RoHS compliant
no
Battery type
4 x ALKALINE CELL AG9
