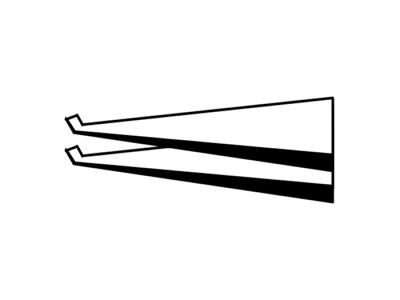

ESD Epoxy Coated Tweezers

SM109.SA.NE.1

ESD epoxy coated tweezers - Anti-Acid/Anti-Mag SS - tips: positioning, soldering 1mm wide components, 45°, no anti-crush feature, straight. OAL: 120mm - 4.72"

Documents

Datasheet Download Handle coating TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

Type SM109 SMD tweezers are specially designed for positioning and soldering 1-millimeter wide components. The epoxy coating provides the tweezers with ESD properties suitable to electronic components handling and to clean room use.

Product Details

Category

ESD Epoxy Coated Tweezers

Tip style

SM109

Tip type

straight

Reverse action

no

ESD safe

yes

Body material

SA

Body coating/ finishing

Sandblasted

Handle coating

NE

Product OAL (mm - in)

120.00 - 4.724

Product width (mm - in)

10.00 - 0.394

Product height (mm - in)

11.00 - 0.433

Tip length (mm - in)

32.00 - 1.26

Tip thickness (mm - in)

0.25 - 0.01

Tip width (mm - in)

1.10 - 1.00 - 0.043

Tip width B (mm)

1.0

Tip opening gap (mm - in)

8.0 - 0.315

Net weight (g-lb)

15.0 - 0.033

RoHS compliant

yes
