Plastic Tweezer Tips

A00DG

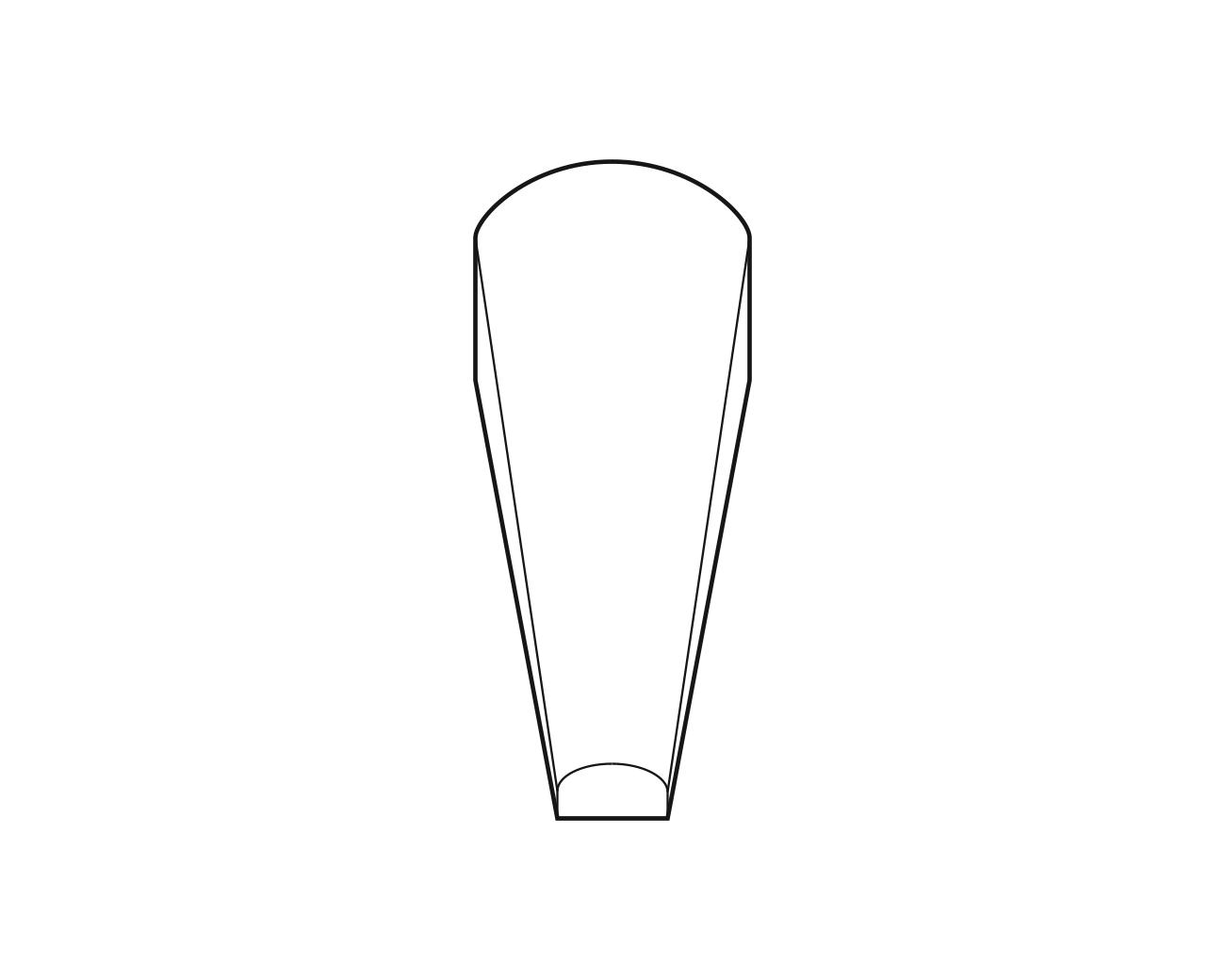

Kit of 2 Delrin tips and 3 screws - tips: straight, thick, squared, strong (for #00DGR.SA Tweezers). OAL: 40mm - 1.57"

Documents

Datasheet Download Tip material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

Kit of 2 Glass Fiber tips and 3 screws for type 00DG tweezers is suitable to applications which require holding a component firmly. The Glass Fiber reinforced POM Plastic provides the tweezers with electric insulation and good chemical resistance.

Product Details

Category

Plastic Tweezer Tips

Tip style

00

Tip features

thick, squared, strong

Tip type

straight

Reverse action

no

ESD safe

no

Tip material

DG

Product OAL (mm - in)

40.00 - 1.575

Product width (mm - in)

8.00 - 0.315

Product height (mm - in)

3.50 - 0.138

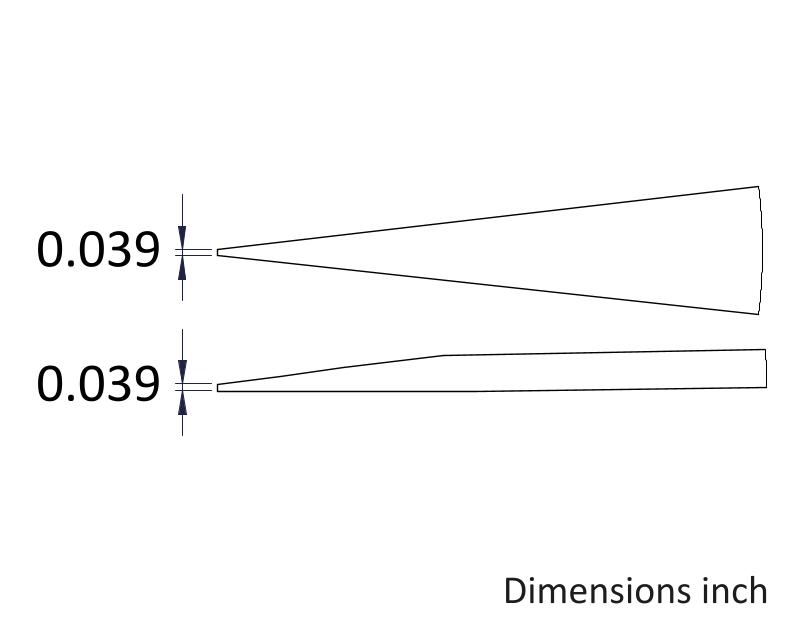

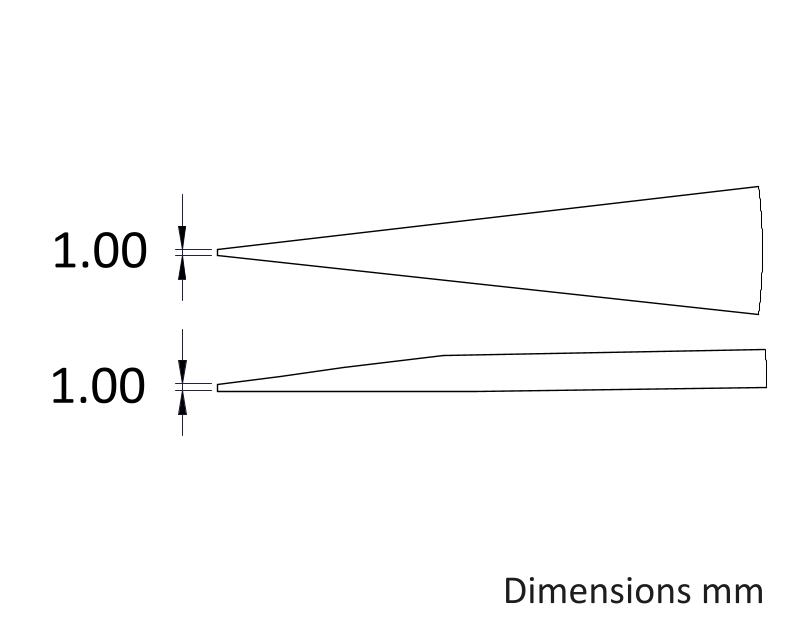

Tip thickness (mm - in)

1.00 - 0.039

Tip width (mm - in)

1.00 - 0.039

Net weight (g-lb)

1.0 - 0.002

RoHS compliant

yes
