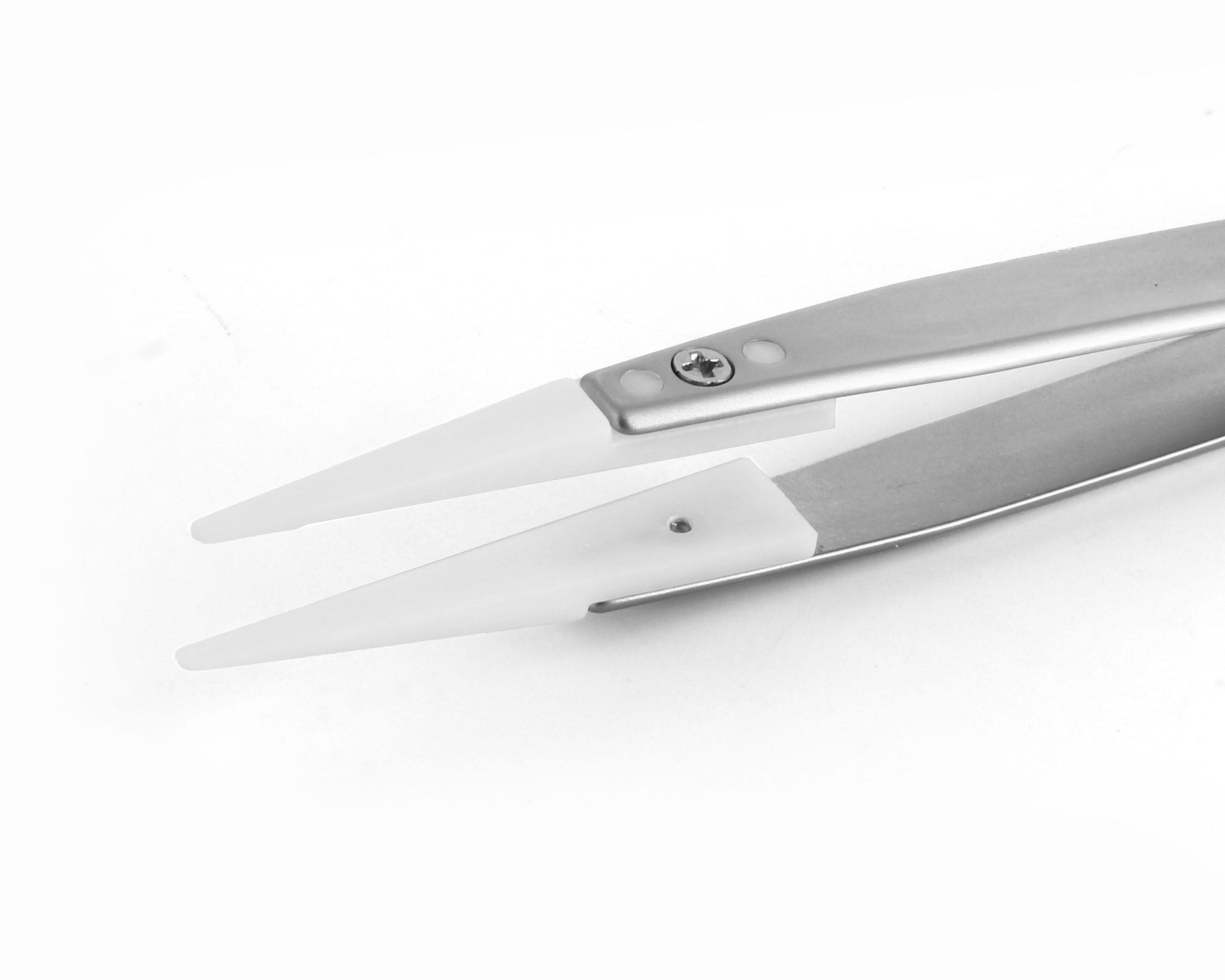

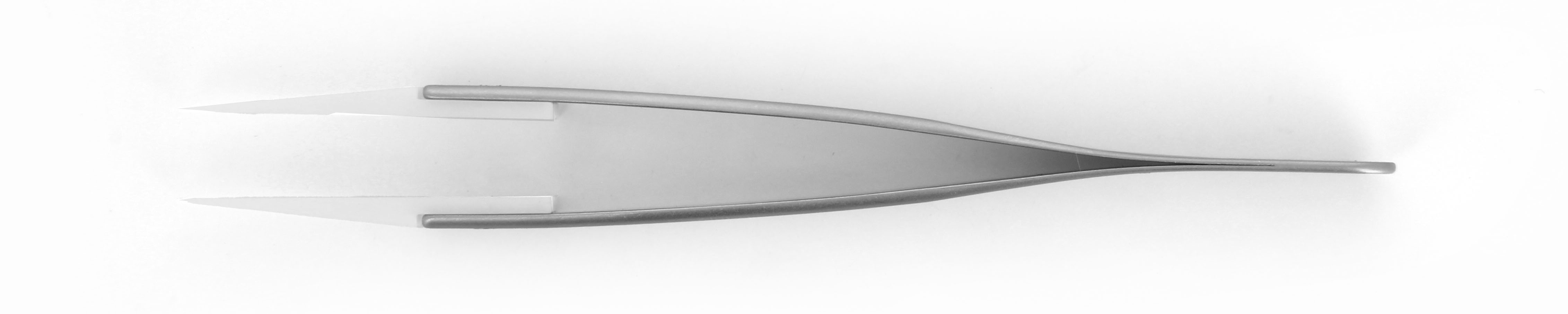

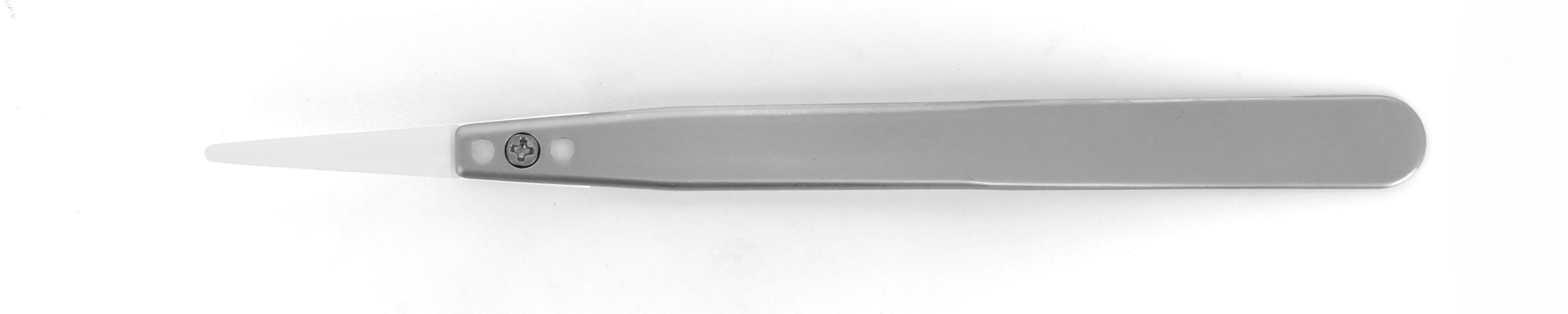

Plastic Replaceable Tip Tweezers

2ADGR.SA.1

Plastic replaceable tip tweezers - Delrin - tips: straight, very fine, round, flat (#A2ADG). OAL: 130mm - 5.12"
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 2ADG Plastic replaceable tip tweezers are suitable to applications which require holding a flat component firmly. The Glass Fiber reinforced POM Plastic provides the tweezers with electric insulation and good chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers

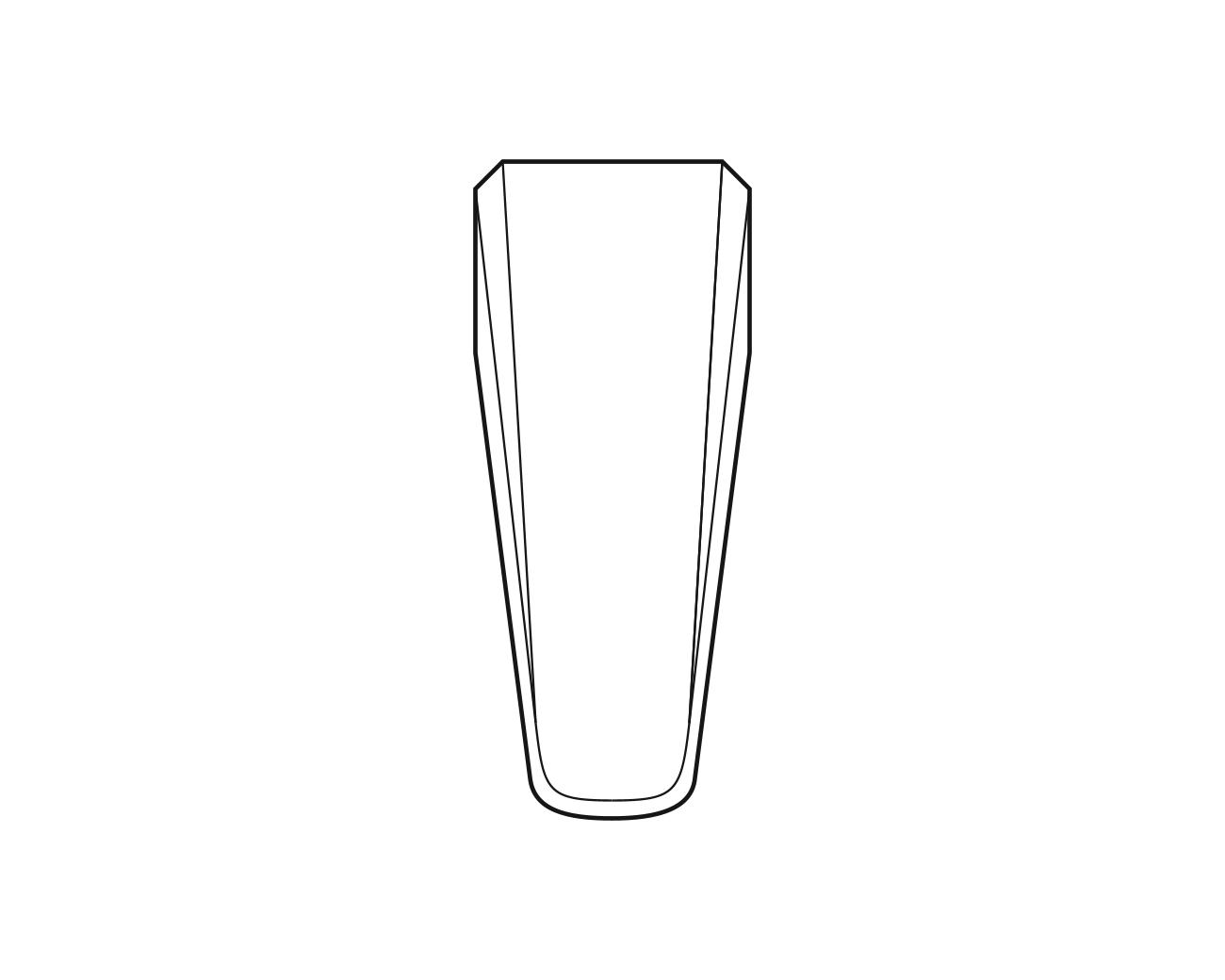

Tip style
2A
Tip features
very fine, round, flat
Tip type
straight
ESD safe
no
Body material
SA
Tip material
DG
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
17.00 - 0.669

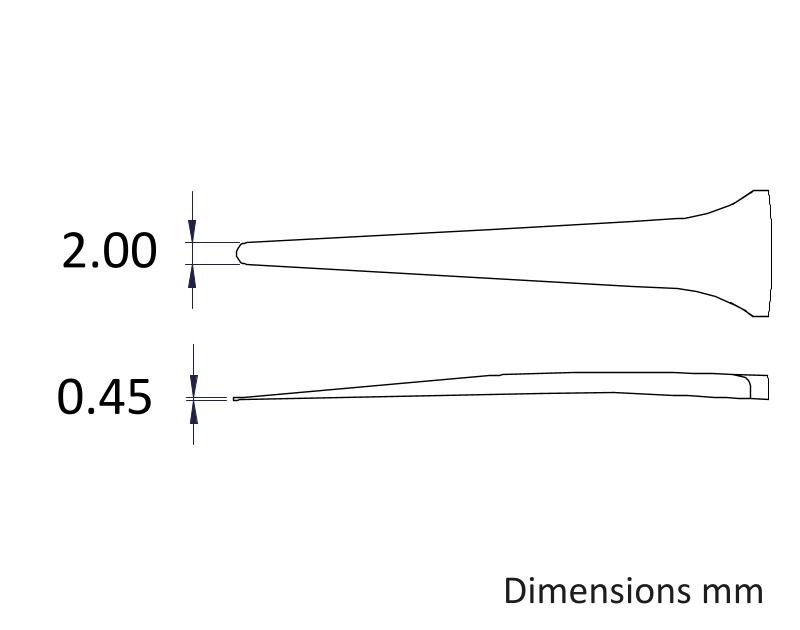

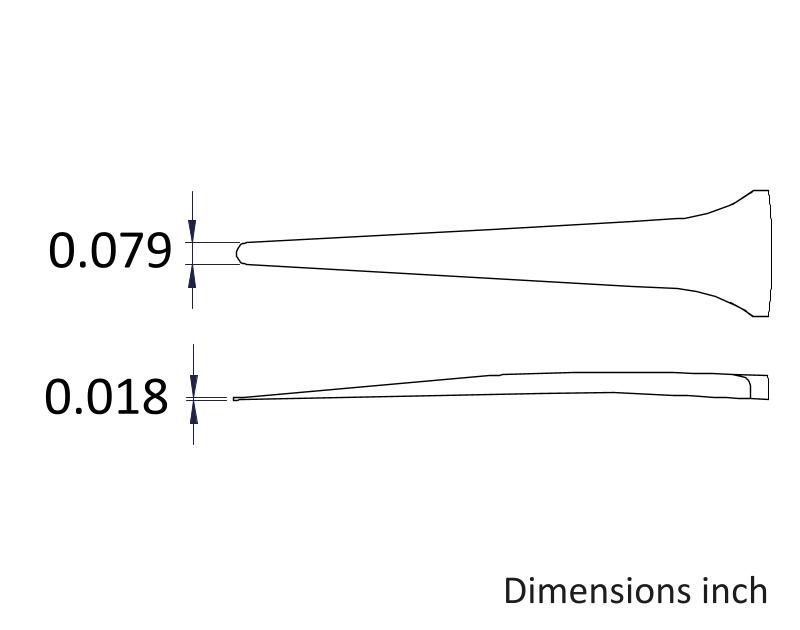

Tip length (mm - in)
25.00 - 0.984
Tip thickness (mm - in)
0.45 - 0.018
Tip width (mm - in)
2.00 - 0.079
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
