AAElectronics
Tweezers
Plastic Replaceable Tip Tweezers
Where to buy

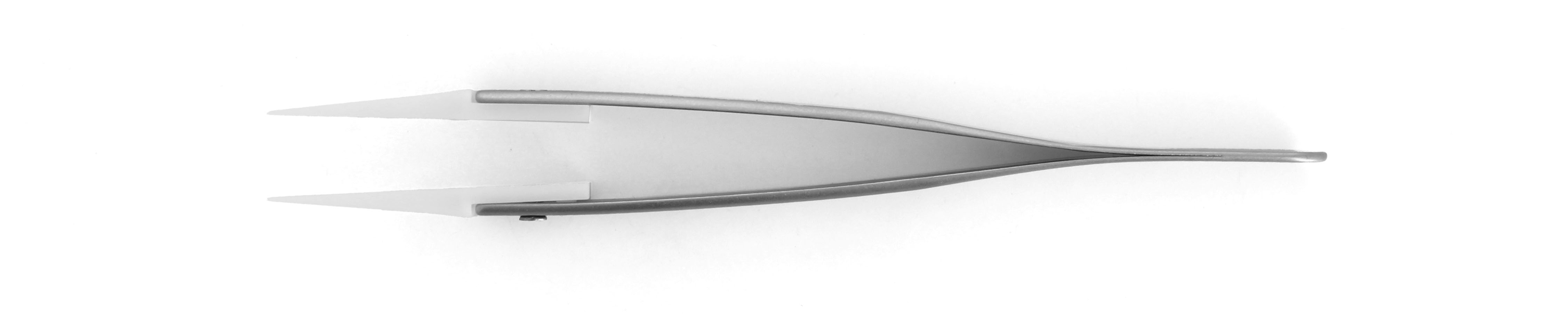

Plastic Replaceable Tip Tweezers

5DGR.SA.1

Plastic replaceable tip tweezers - Delrin - tips: straight, very fine, sharp (#A5DG). OAL: 130mm - 5.12"
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy

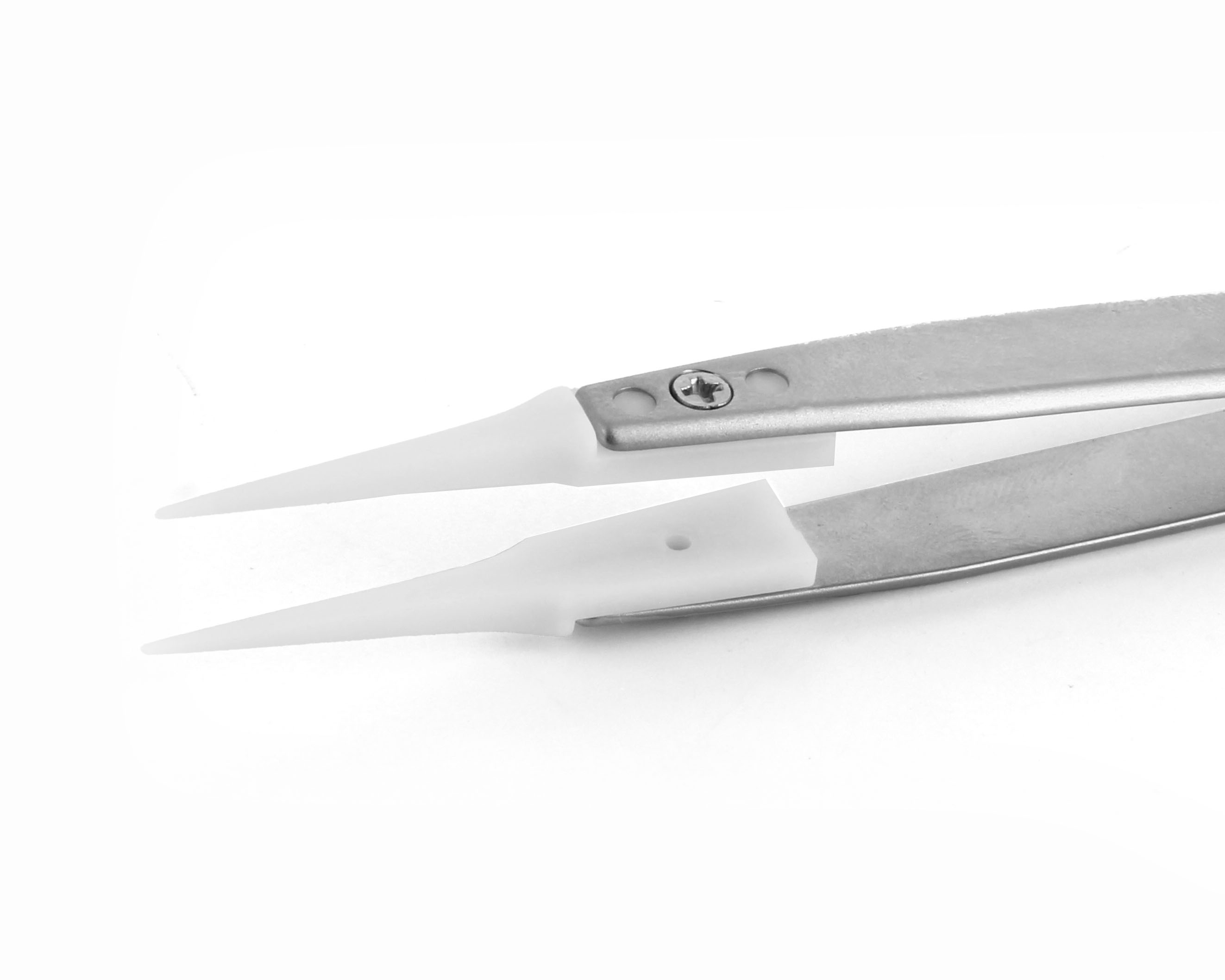

Type 5DG Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The Glass Fiber reinforced POM Plastic provides the tweezers with electric insulation and good chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers

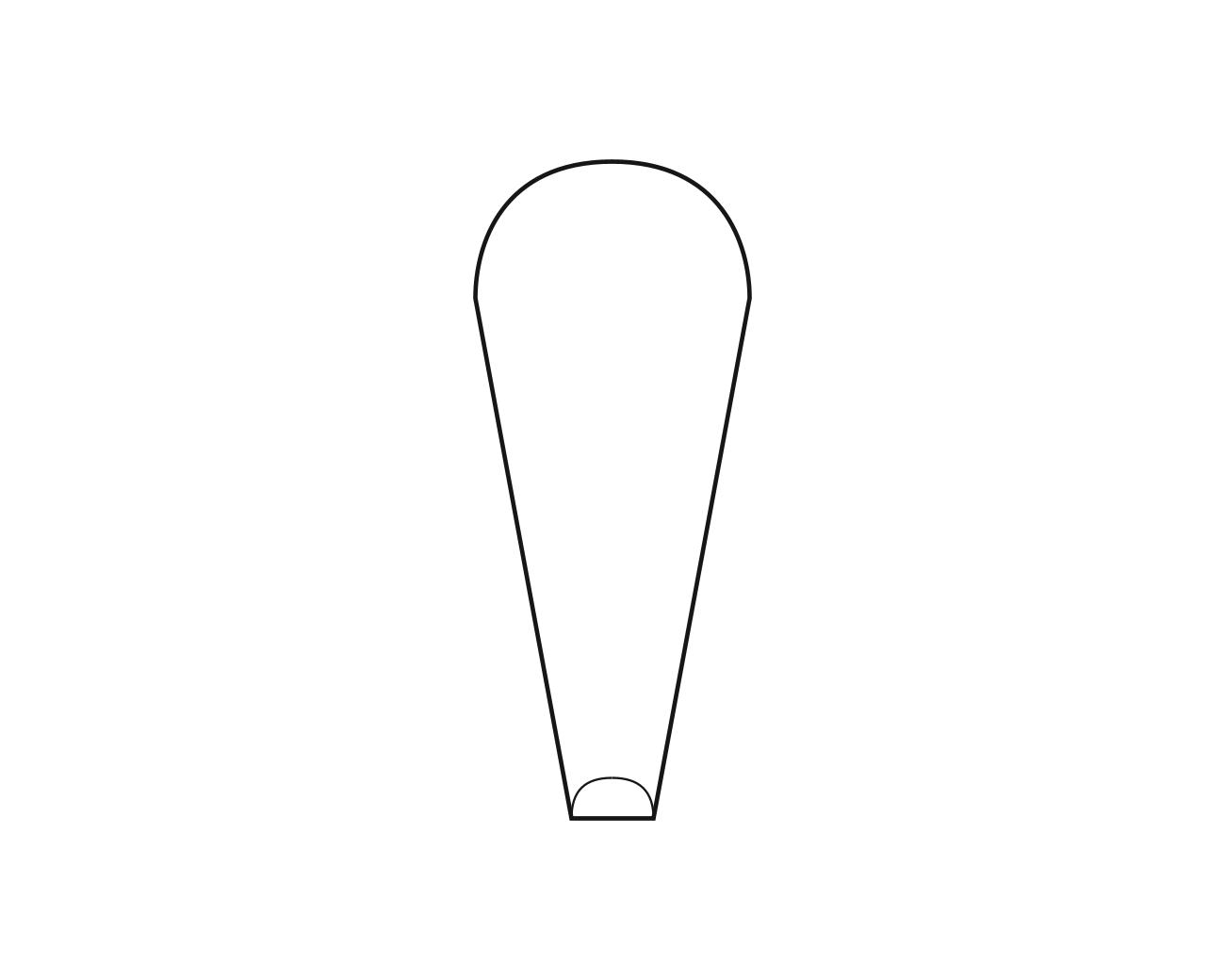

Tip style
5
Tip features
very fine, sharp
Tip type
straight
Reverse action
no
ESD safe
no
Body material
SA
Tip material
DG
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63

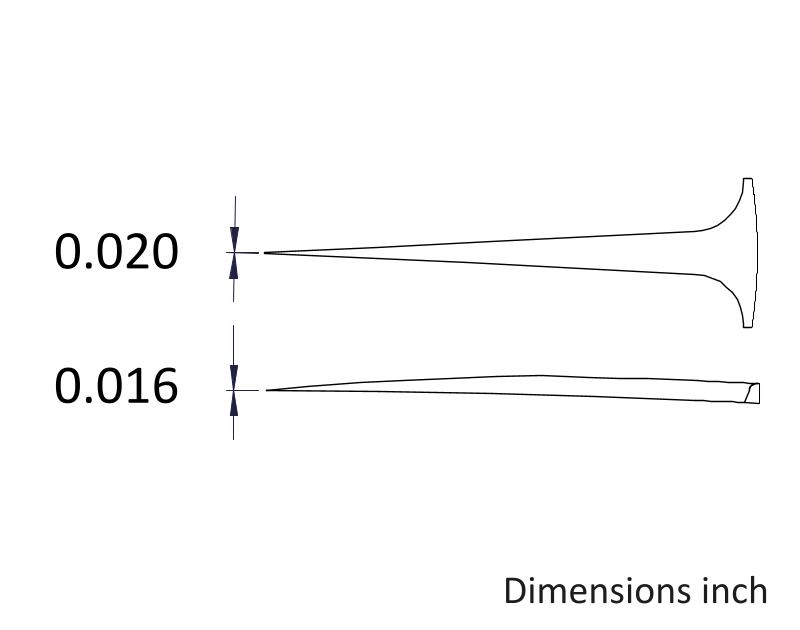

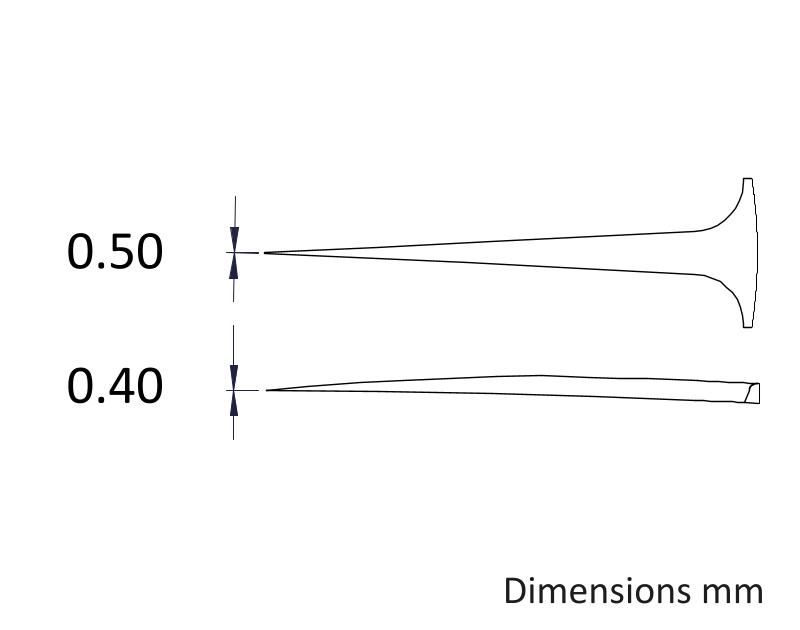

Tip length (mm - in)
25.00 - 0.984
Tip thickness (mm - in)
0.40 - 0.016
Tip width (mm - in)
0.50 - 0.02
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
17.5 - 0.039
RoHS compliant
yes
