Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

7DGR.SA.1

Plastic replaceable tip tweezers - Delrin - tips: curved, fine (#A7DG). OAL: 130mm - 5.12"
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 7DG Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The curved geometry provides maximum visibility and increased ergonomics. The Glass Fiber reinforced POM Plastic provides the tweezers with electric insulation and good chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
7
Tip features
fine
Tip type
curved
Reverse action
no
ESD safe
no
Body material
SA
Tip material
DG
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
12.00 - 0.472
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
26.00 - 1.024

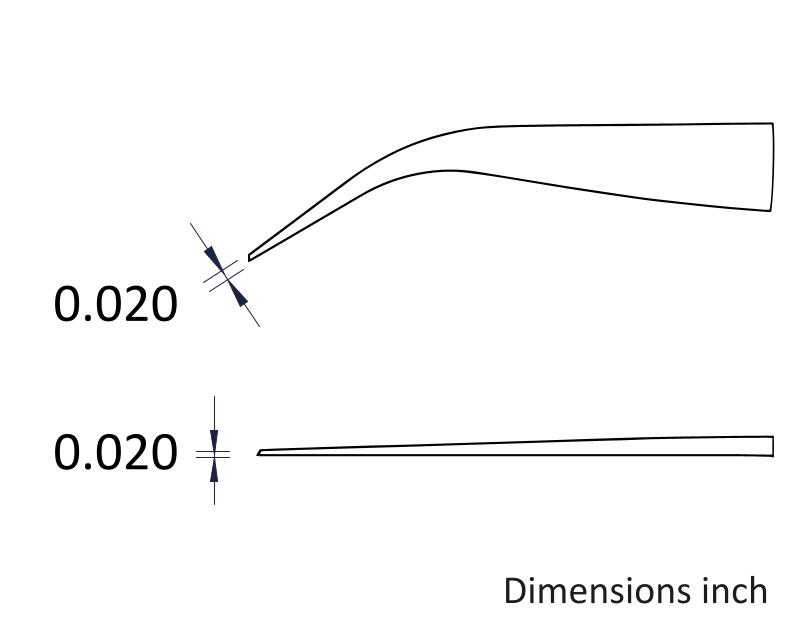

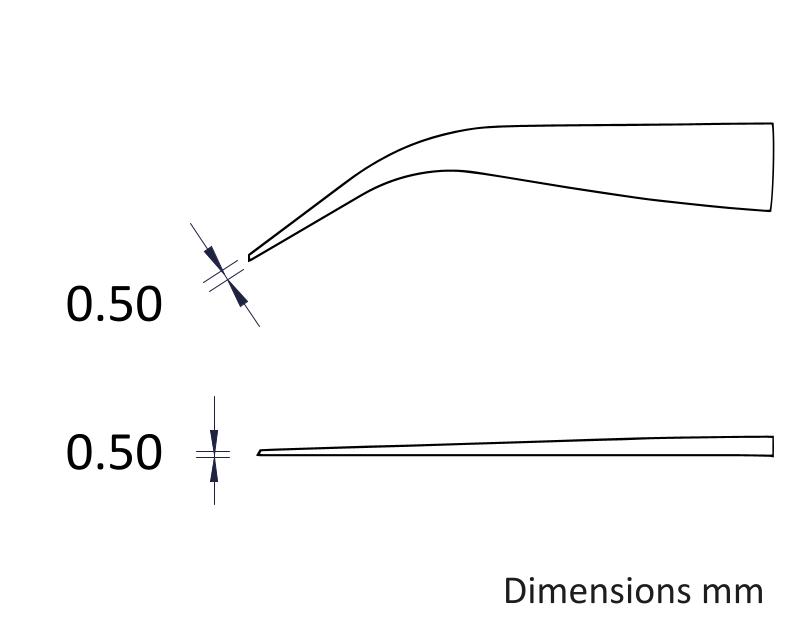

Tip thickness (mm - in)
0.50 - 0.02
Tip width (mm - in)
0.50 - 0.02
Tip opening gap (mm - in)
10.0 - 0.394
Degree of bending
60.0
Net weight (g-lb)
15.0 - 0.033
RoHS compliant
yes
