Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

242CFR.SA.1

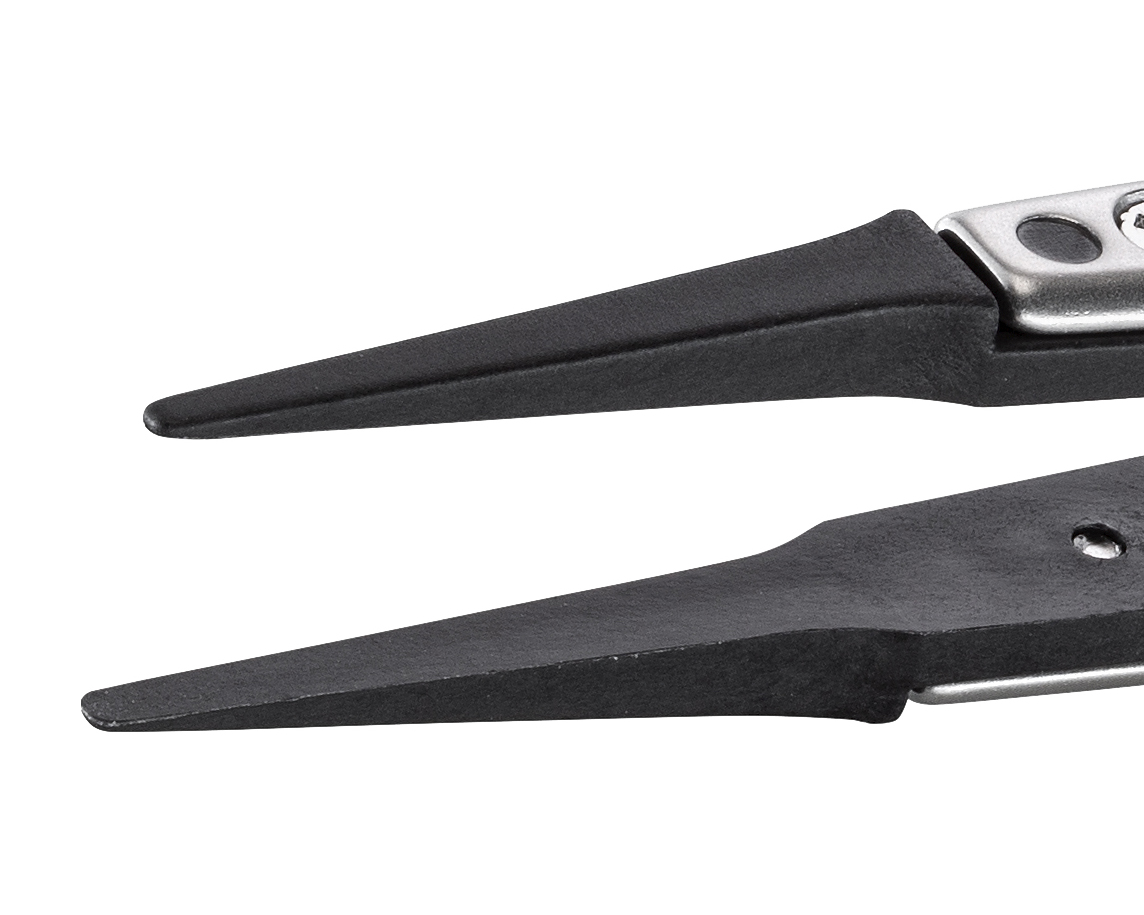

Plastic replaceable tip tweezers - Carbon fiber - tips: straight, fine, round, flat (#A242CF). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 242CF Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers

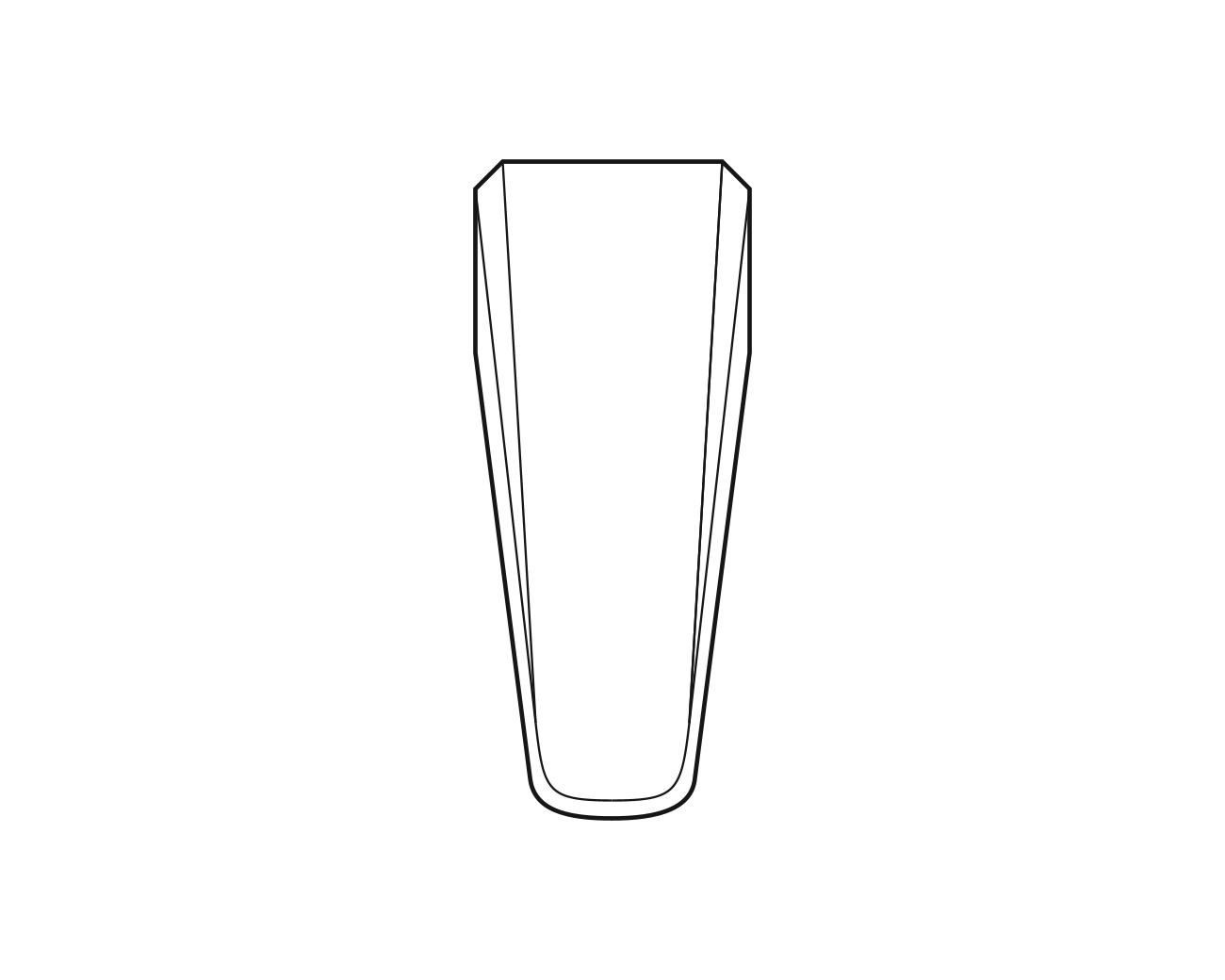

Tip style
242
Tip features
fine, round, flat
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
25.00 - 0.984

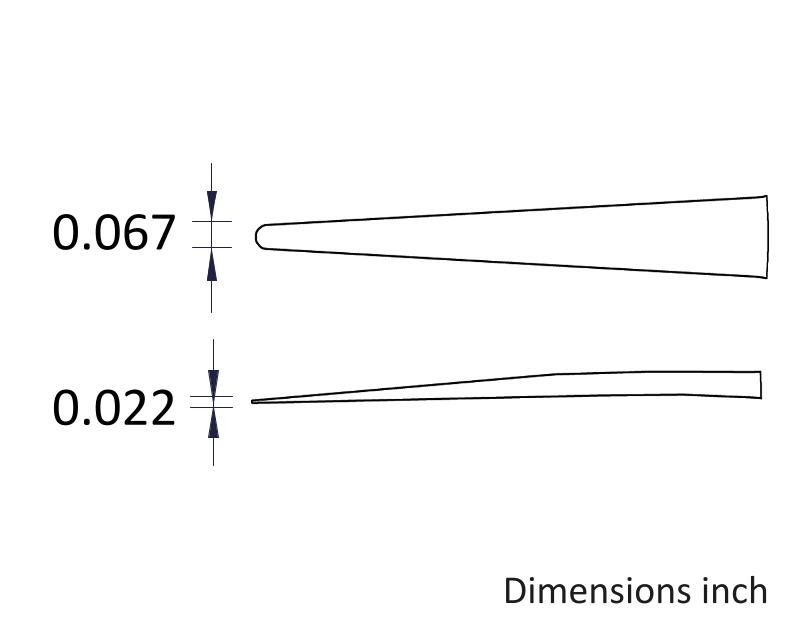

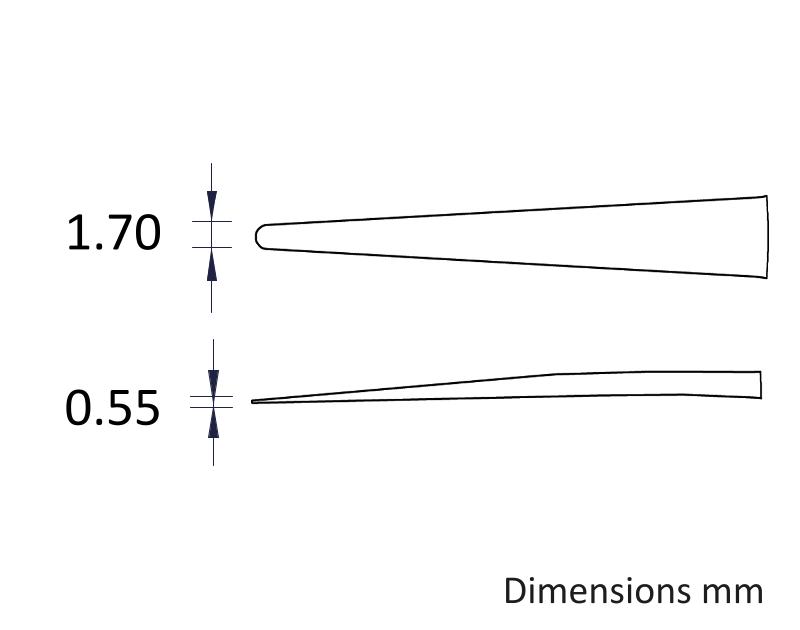

Tip thickness (mm - in)
0.55 - 0.022
Tip width (mm - in)
1.70 - 0.067
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
17.5 - 0.039
RoHS compliant
yes
