AAElectronics
Tweezers
Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

246SVR.SA.1

Plastic replaceable tip tweezers - PVDF - tips: thin, angled head (#A246SV). OAL: 125mm - 4.92". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy

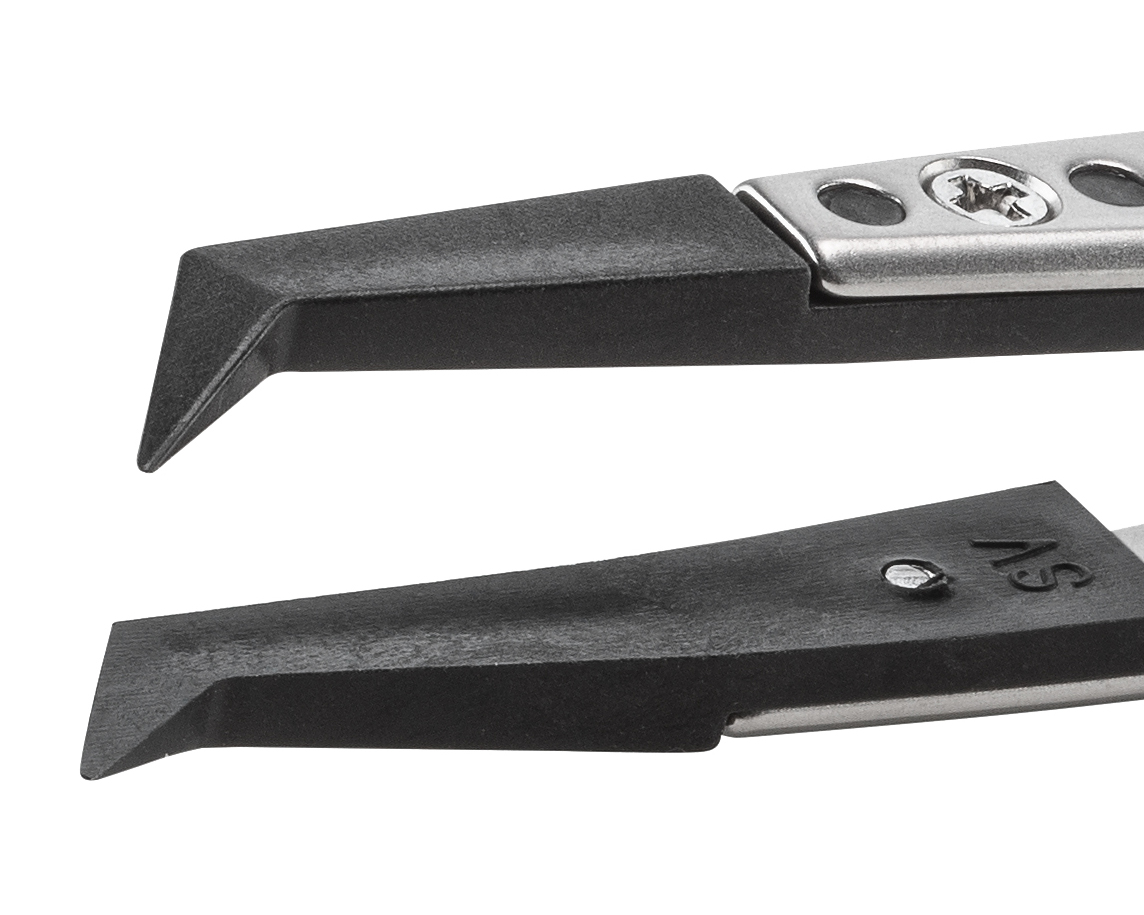

Type 246SV Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The bent geometry provides maximum visibility and increased ergonomics. The Carbon Fiber reinforced ESD PVDF Plastic provides the tweezers with ESD and exceptional non-scratching properties combined with excellent chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
246
Tip features
very fine, pointed
Tip type
angled
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
SV
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
125.00 - 4.921
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
15.00 - 0.591
Tip length (mm - in)
21.50 - 0.846
Tip length 1 (mm)
9.5
Tip thickness (mm - in)
0.25 - 0.01
Tip width (mm - in)
0.50 - 0.02
Tip opening gap (mm - in)
10.0 - 0.394
Degree of bending
45.0
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
