AAElectronics
Tweezers
Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

259CCFR.SA.1

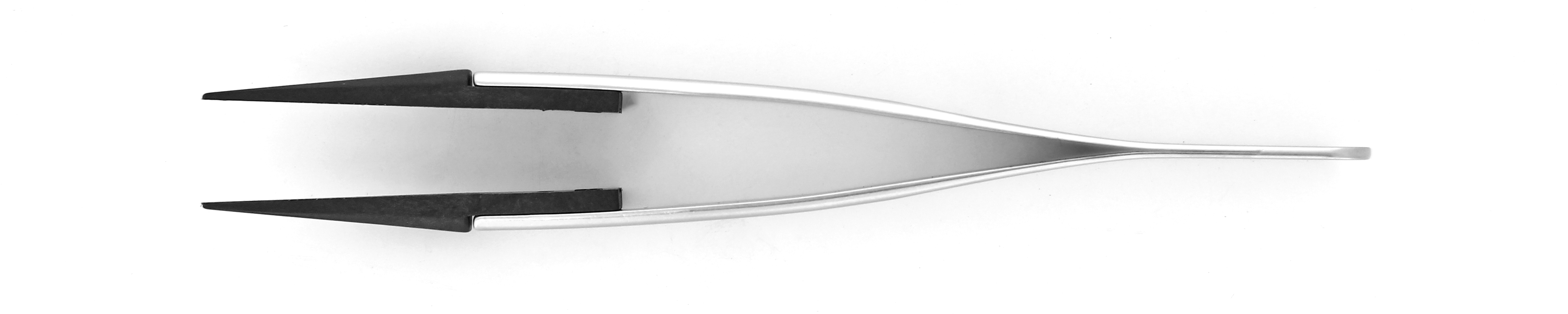

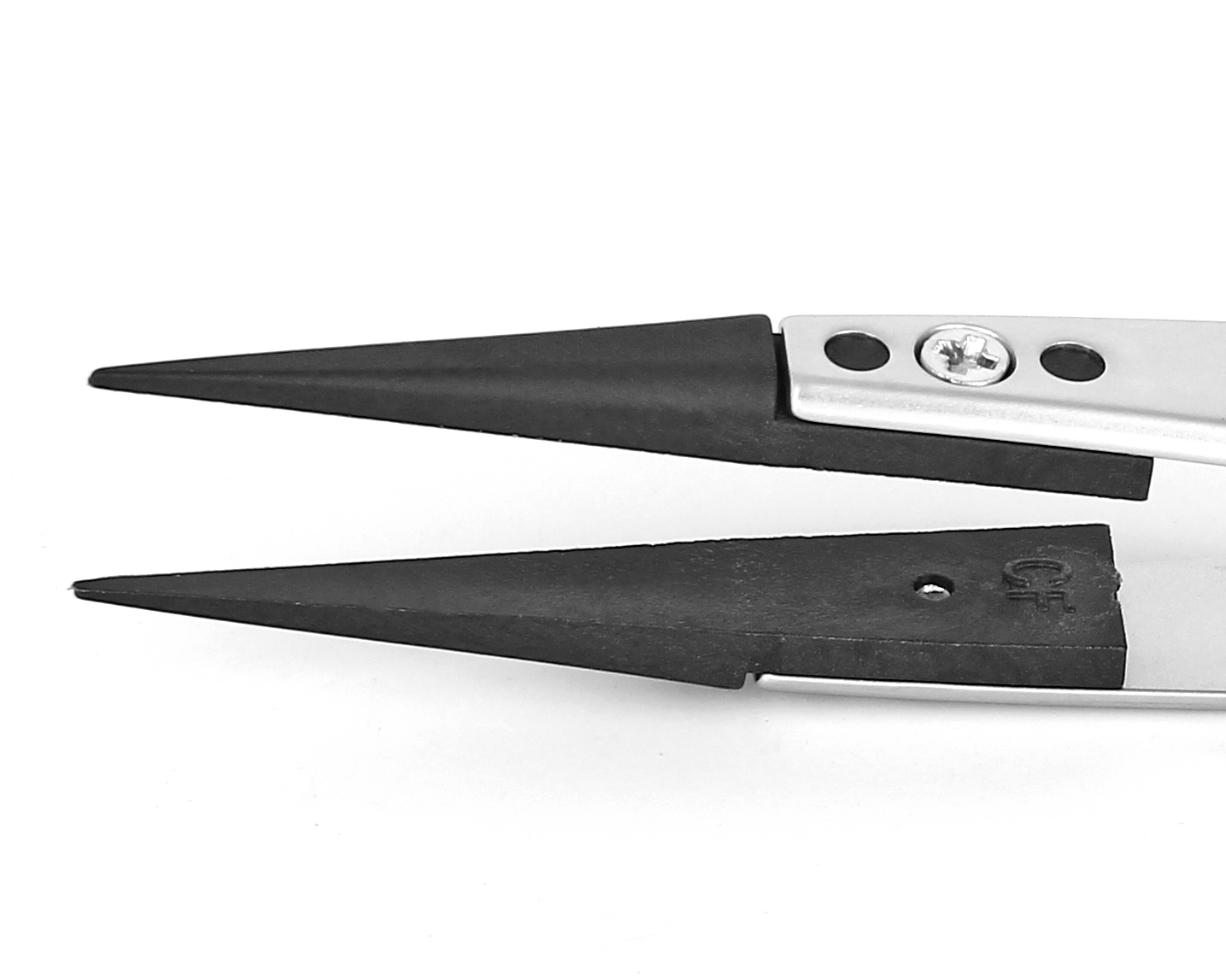

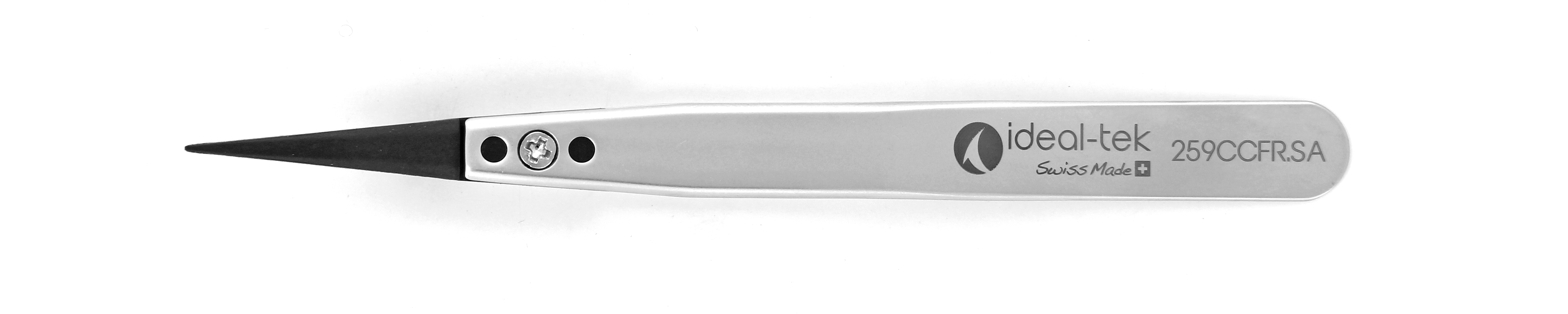

Plastic replaceable tip tweezers - Carbon fiber - tips: straight, fine, pointed, strong (#A259CF). OAL: 115mm - 4.53". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 259CF Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
259
Tip features
fine, pointed, strong
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
115.00 - 4.528
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
25.00 - 0.984

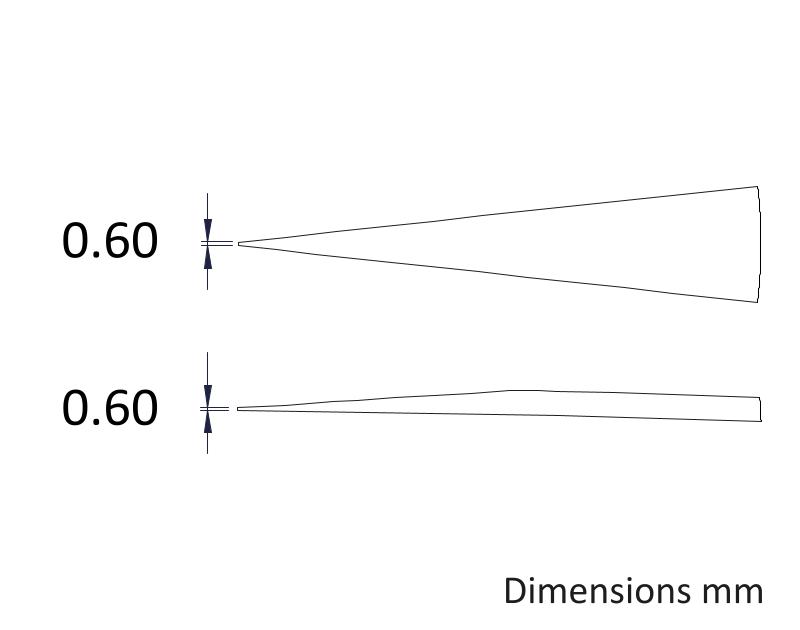

Tip thickness (mm - in)
0.60 - 0.024
Tip width (mm - in)
0.60 - 0.024
Tip opening gap (mm - in)
8.0 - 0.315
Net weight (g-lb)
13.0 - 0.029
RoHS compliant
yes
