Plastic Replaceable Tip Tweezers

259DGR.SA.1

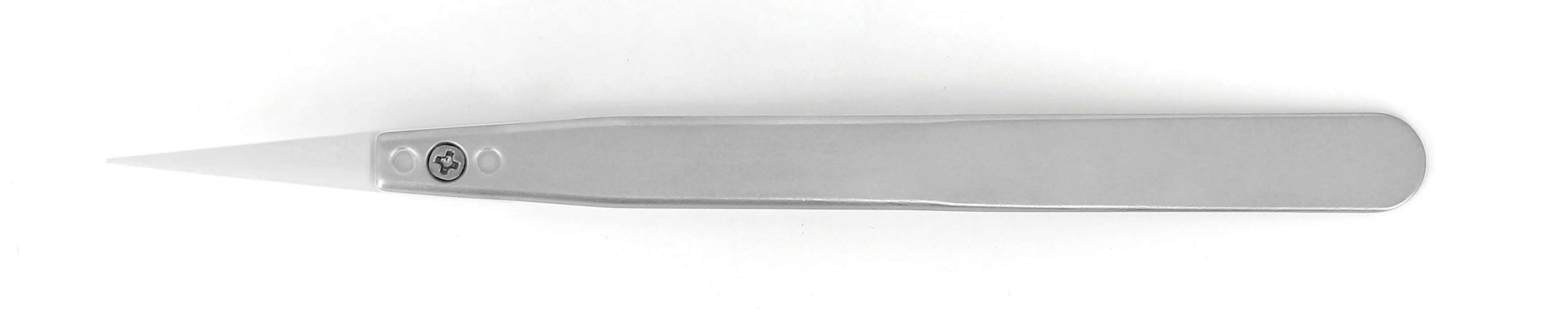

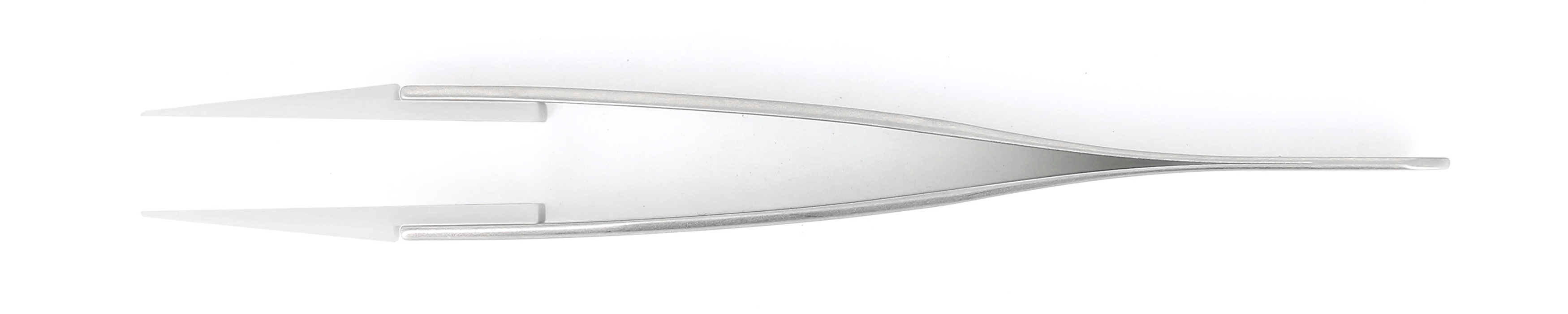

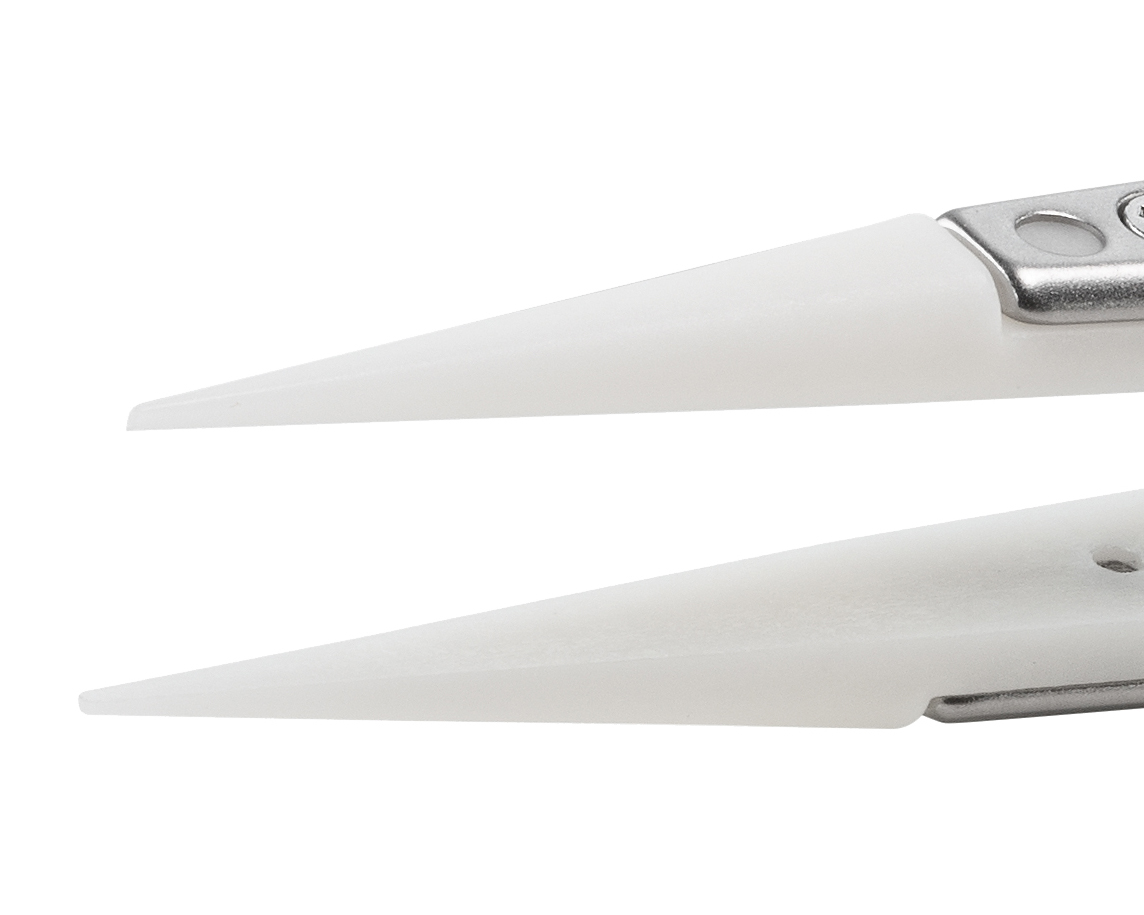

Plastic replaceable tip tweezers - Delrin - tips: straight, fine, pointed, strong (#A259DG). OAL: 130mm - 5.12"
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 259CF Plastic tip tweezers are suitable to applications which require holding a small component firmly. The Glass Fiber reinforced POM Plastic provides the tweezers with electric insulation and good chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
259
Tip features
fine, pointed, strong
Tip type
straight
ESD safe
no
Body material
SA
Tip material
DG
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
26.00 - 1.024

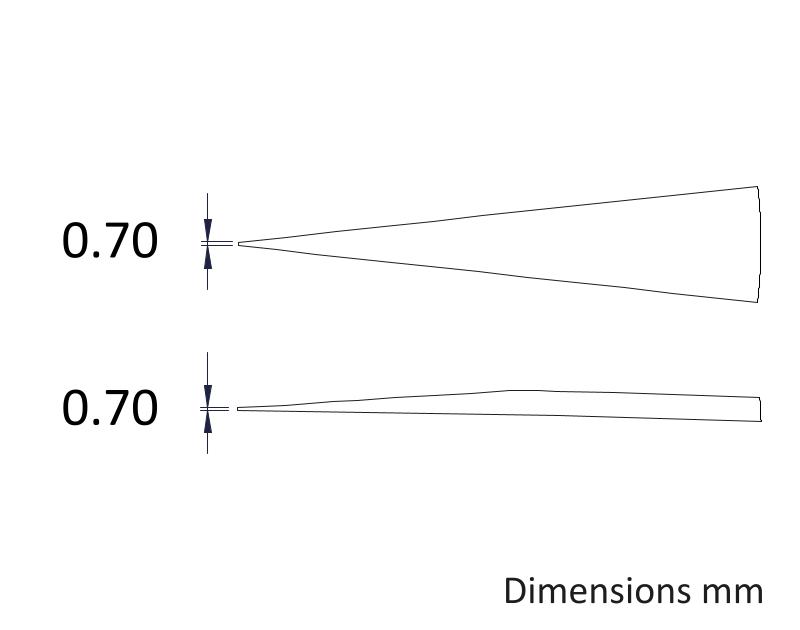

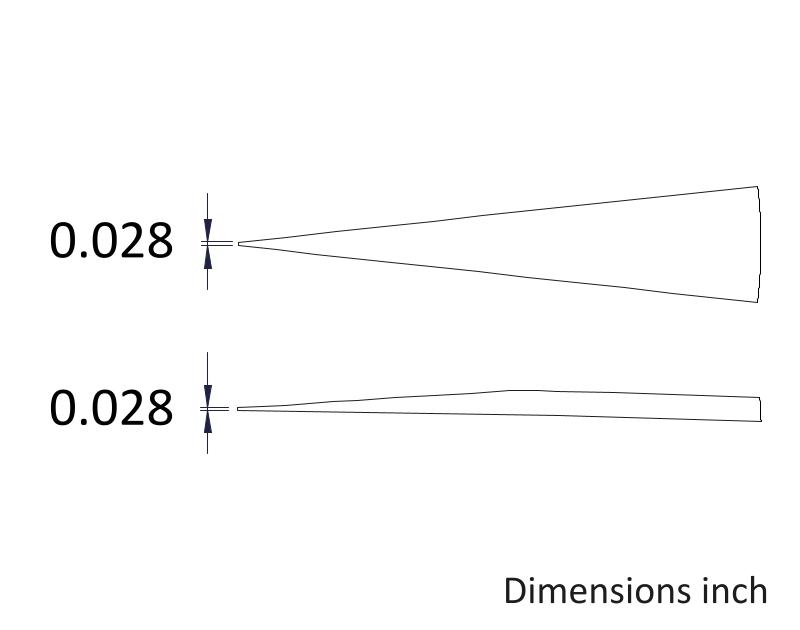

Tip thickness (mm - in)
0.70 - 0.028
Tip width (mm - in)
0.70 - 0.028
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
17.0 - 0.037
RoHS compliant
yes
