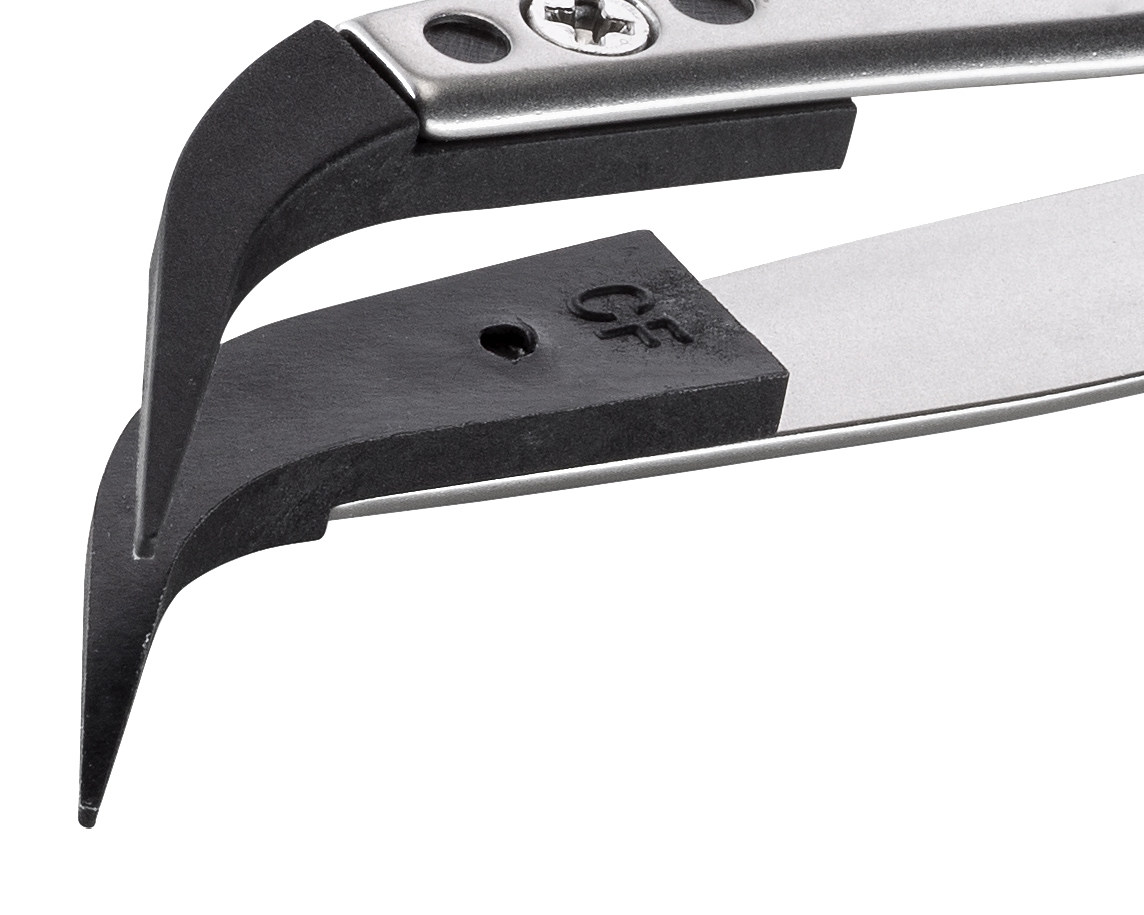

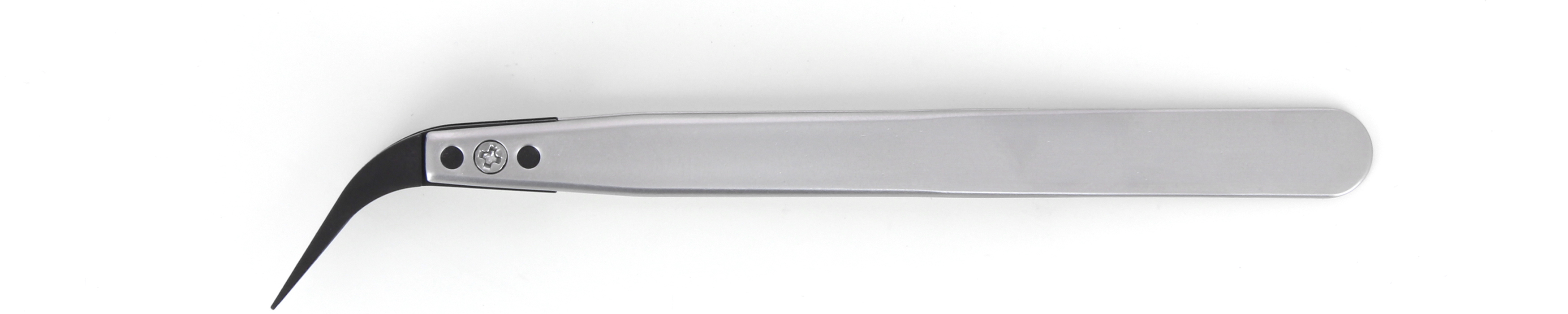

Plastic Replaceable Tip Tweezers

277CFR.SA.1

Plastic replaceable tip tweezers - Carbon fiber - tips: curved, fine (#A277CF). OAL: 120mm - 4.72". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 277CF Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The curved geometry provides maximum visibility and increased ergonomics. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
277
Tip features
fine
Tip type
curved
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
120.00 - 4.724
Product width (mm - in)
20.00 - 0.787
Product height (mm - in)
18.00 - 0.709

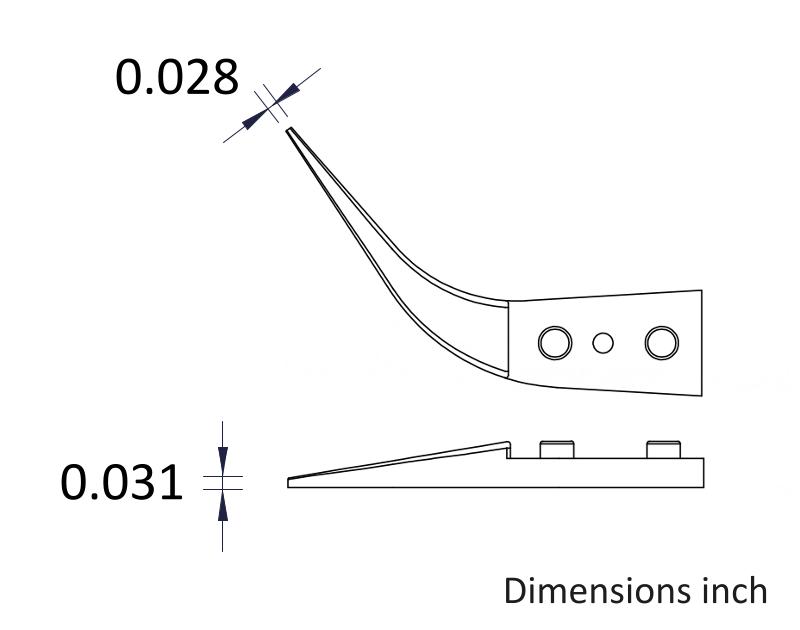

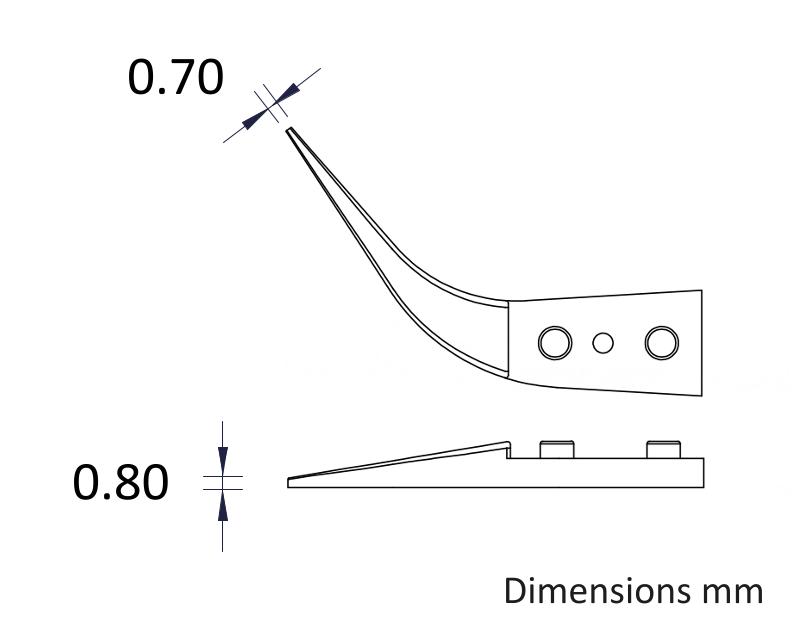

Tip length (mm - in)
16.50 - 0.65
Tip thickness (mm - in)
0.80 - 0.031
Tip width (mm - in)
0.70 - 0.028
Tip opening gap (mm - in)
10.0 - 0.394
Degree of bending
55.0
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
