Plastic Replaceable Tip Tweezers

2ABCFR.SA.1

Plastic replaceable tip tweezers - Carbon fiber - tips: curved, very fine, round, flat (#A2ABCF). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy

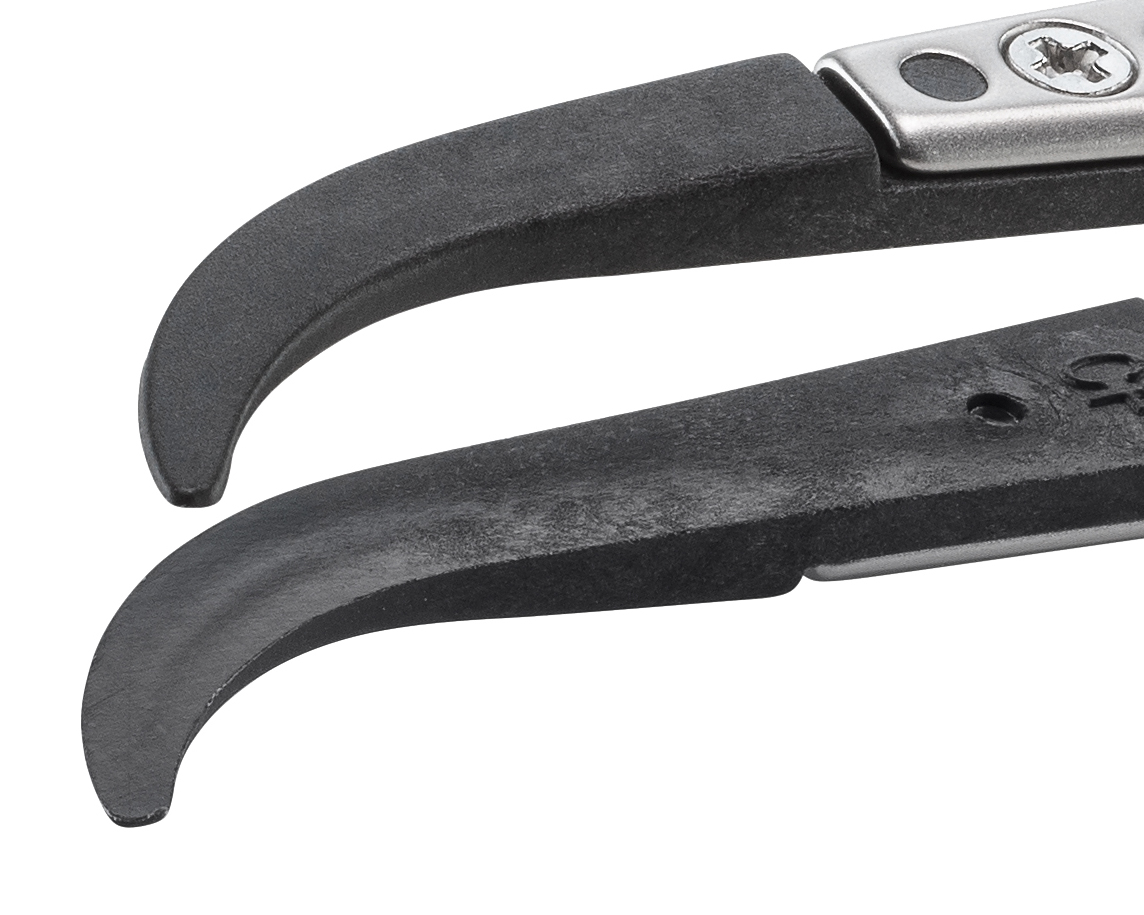

Type 2ABCF Plastic replaceable tip tweezers are suitable to applications which require holding a flat component firmly. The curved geometry provides maximum visibility and increased ergonomics. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
2AB
Tip features
very fine, round, flat
Tip type
curved
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63

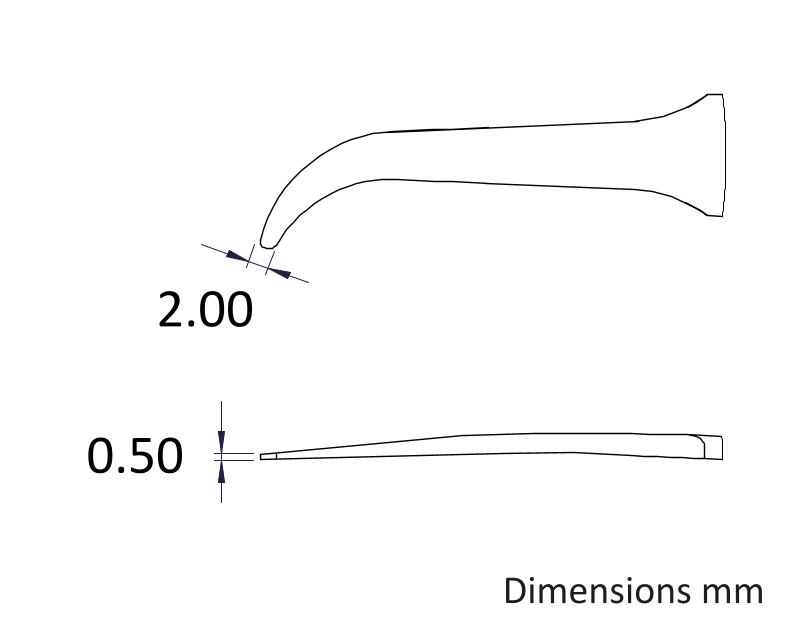

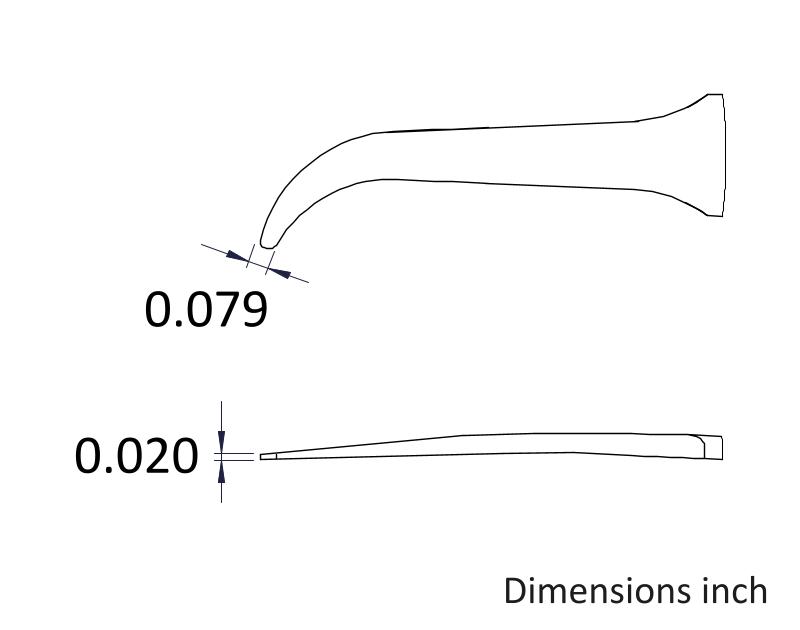

Tip length (mm - in)
26.00 - 1.024
Tip thickness (mm - in)
0.50 - 0.02
Tip width (mm - in)
2.00 - 0.079
Tip opening gap (mm - in)
10.0 - 0.394
Degree of bending
45.0
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
