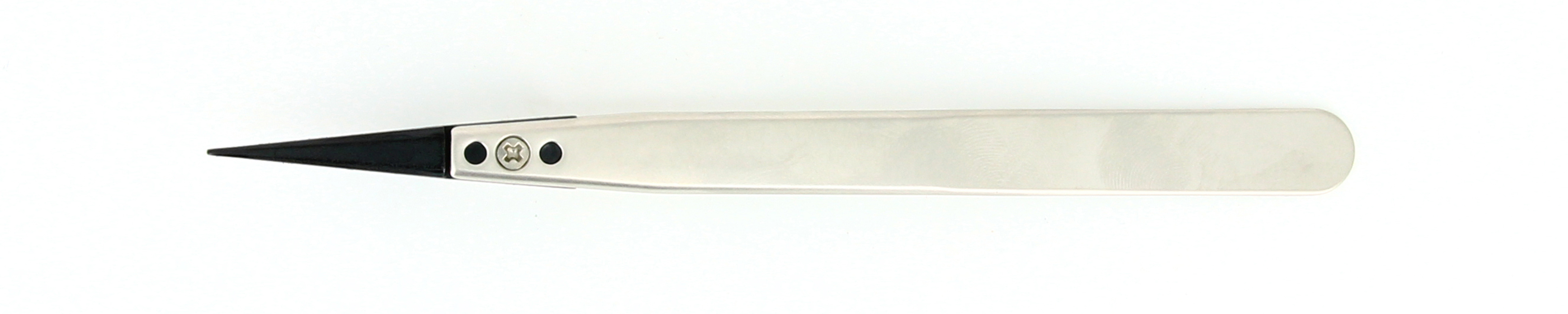

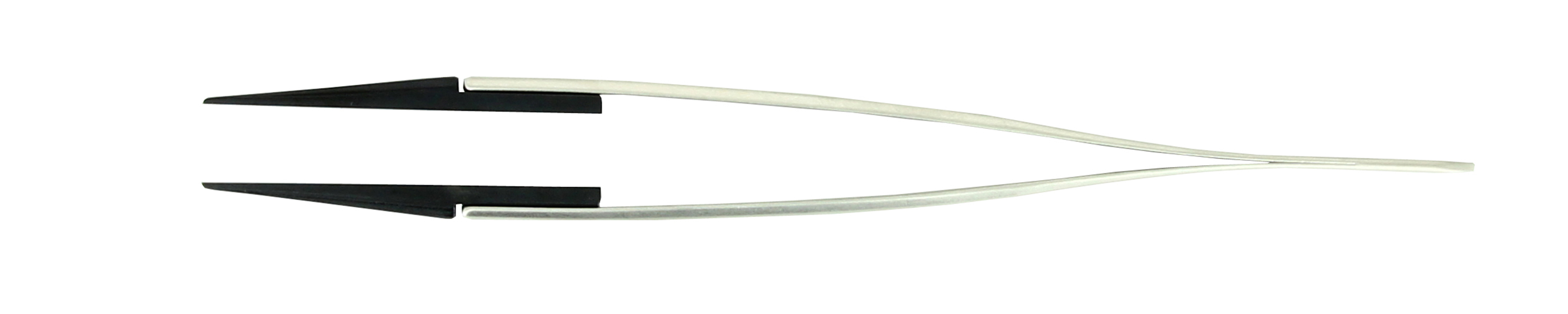

Plastic Replaceable Tip Tweezers

3CPR.SA.1

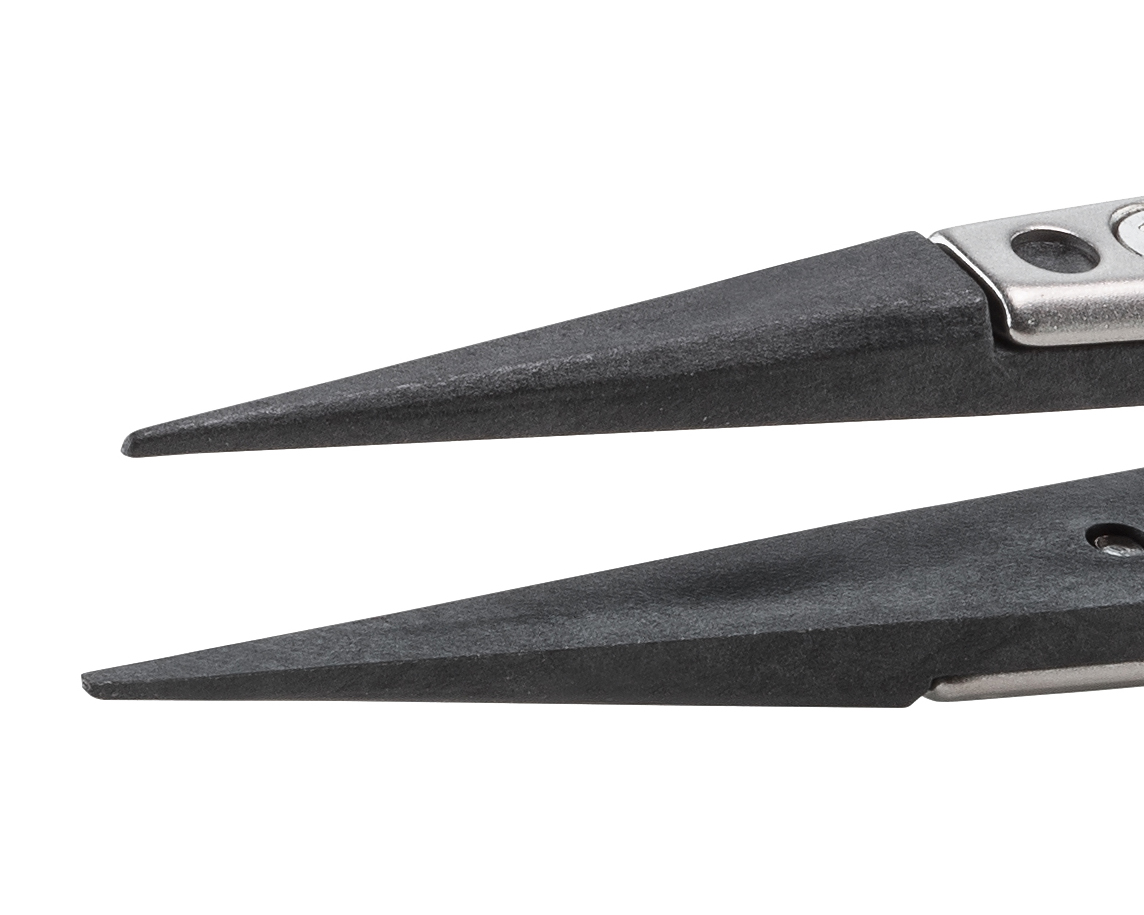

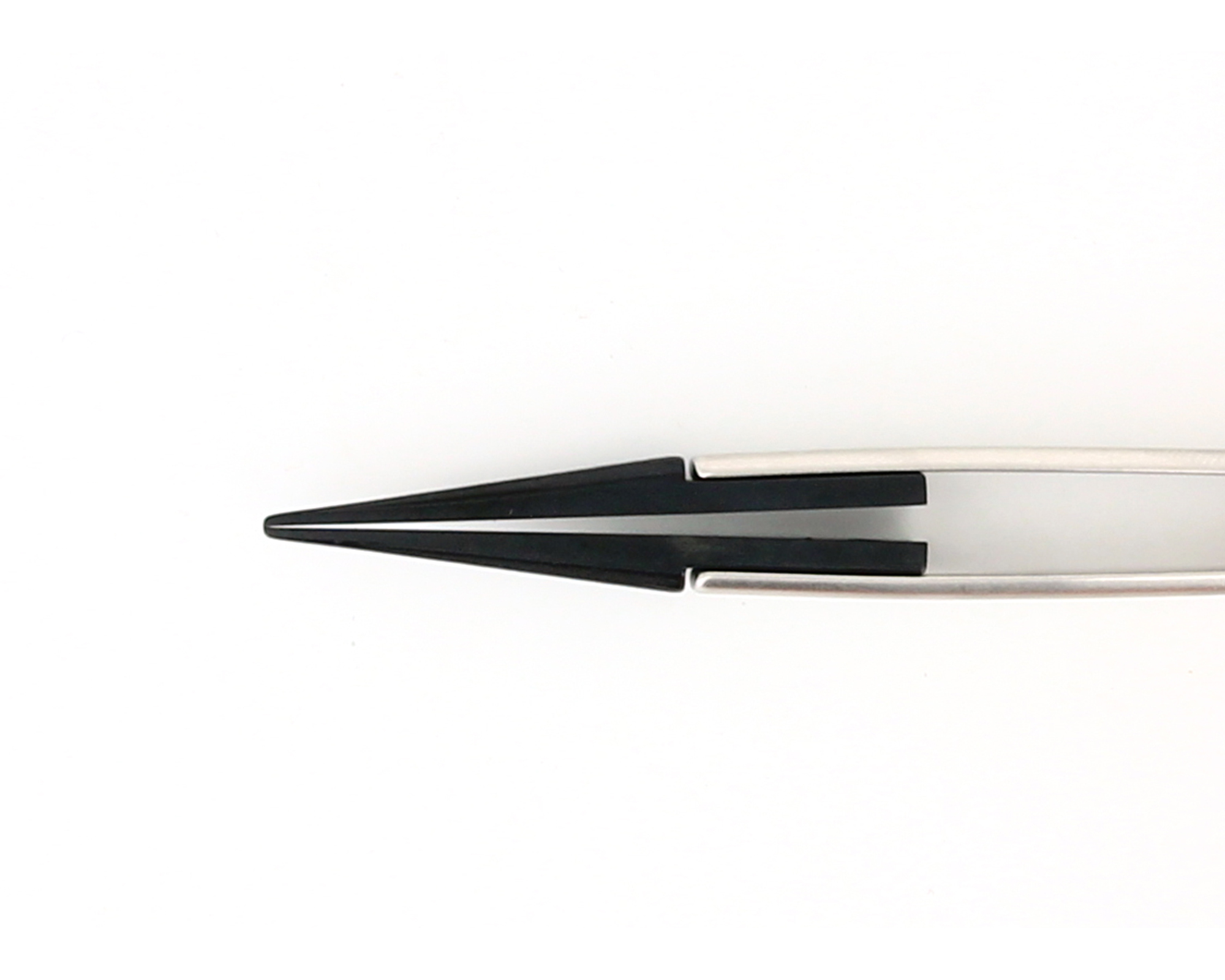

Plastic replaceable tip tweezers - Carbon PEEK - tips: straight, fine, pointed (#A3CP). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 3CP Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers ESD and non-scratching properties combined with excellent high temperature resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers

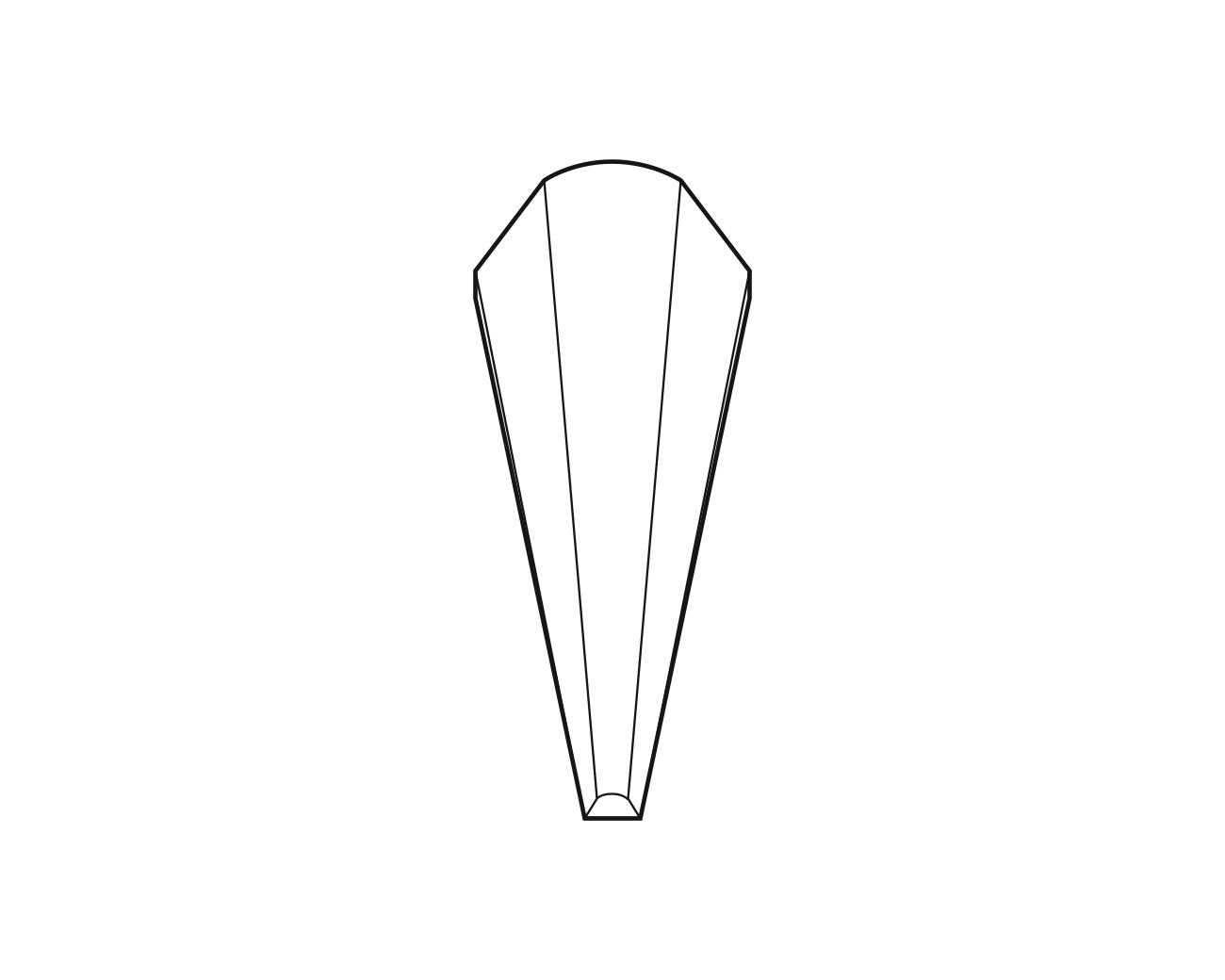

Tip style
3
Tip features
fine, pointed
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
CP
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
15.00 - 0.591
Tip length (mm - in)
25.00 - 0.984

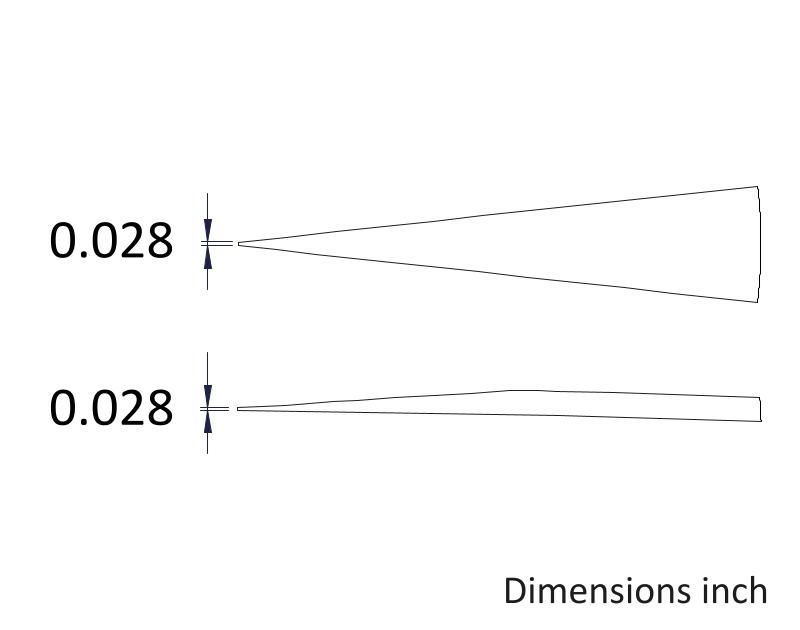

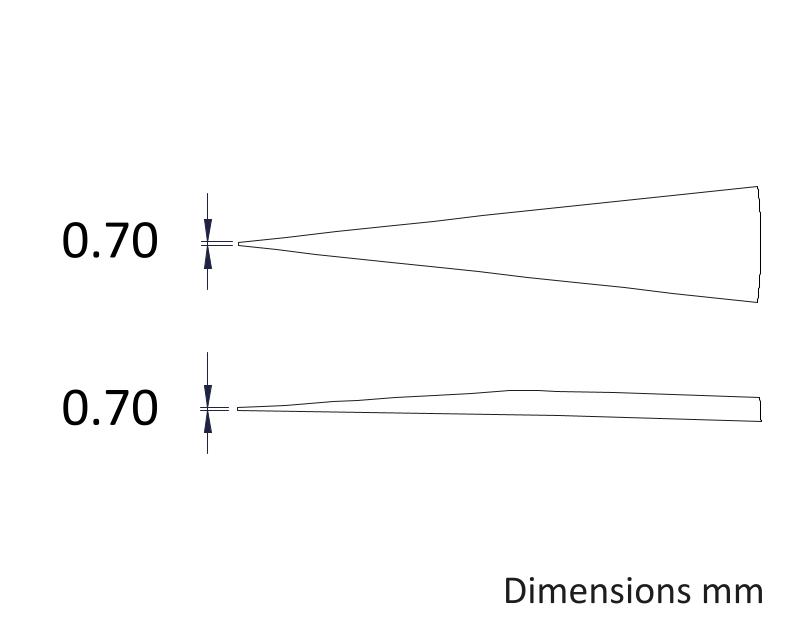

Tip thickness (mm - in)
0.70 - 0.028
Tip width (mm - in)
0.70 - 0.028
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
17.0 - 0.037
RoHS compliant
yes
