Plastic Replaceable Tip Tweezers

5CPR.SA.1

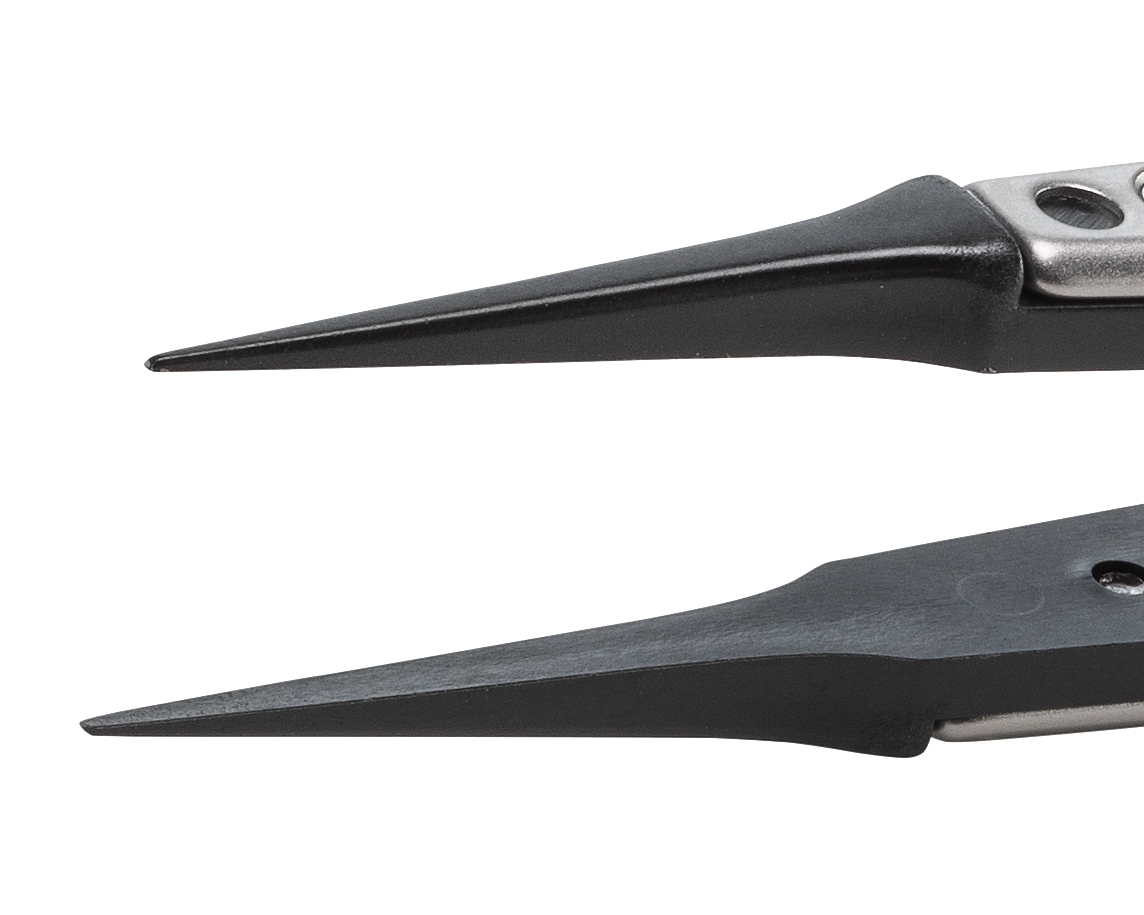

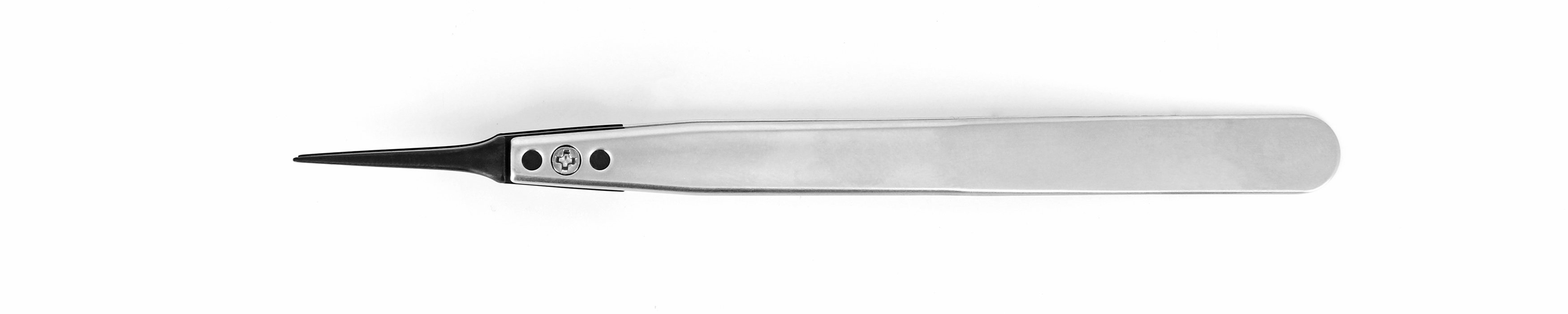

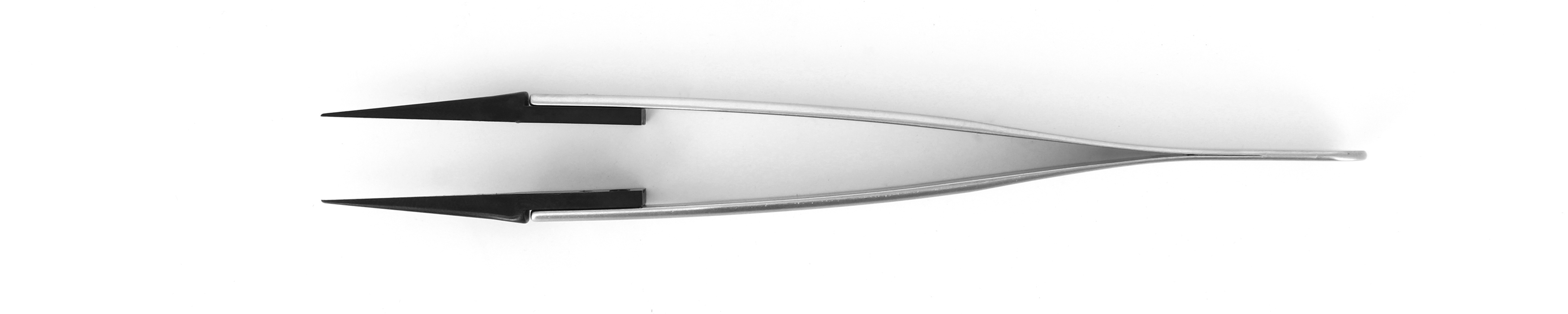

Plastic replaceable tip tweezers - Carbon PEEK - tips: straight, very fine, sharp (#A5CP). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 5CP Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers with ESD and non-scratching properties combined with excellent high temperature resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers

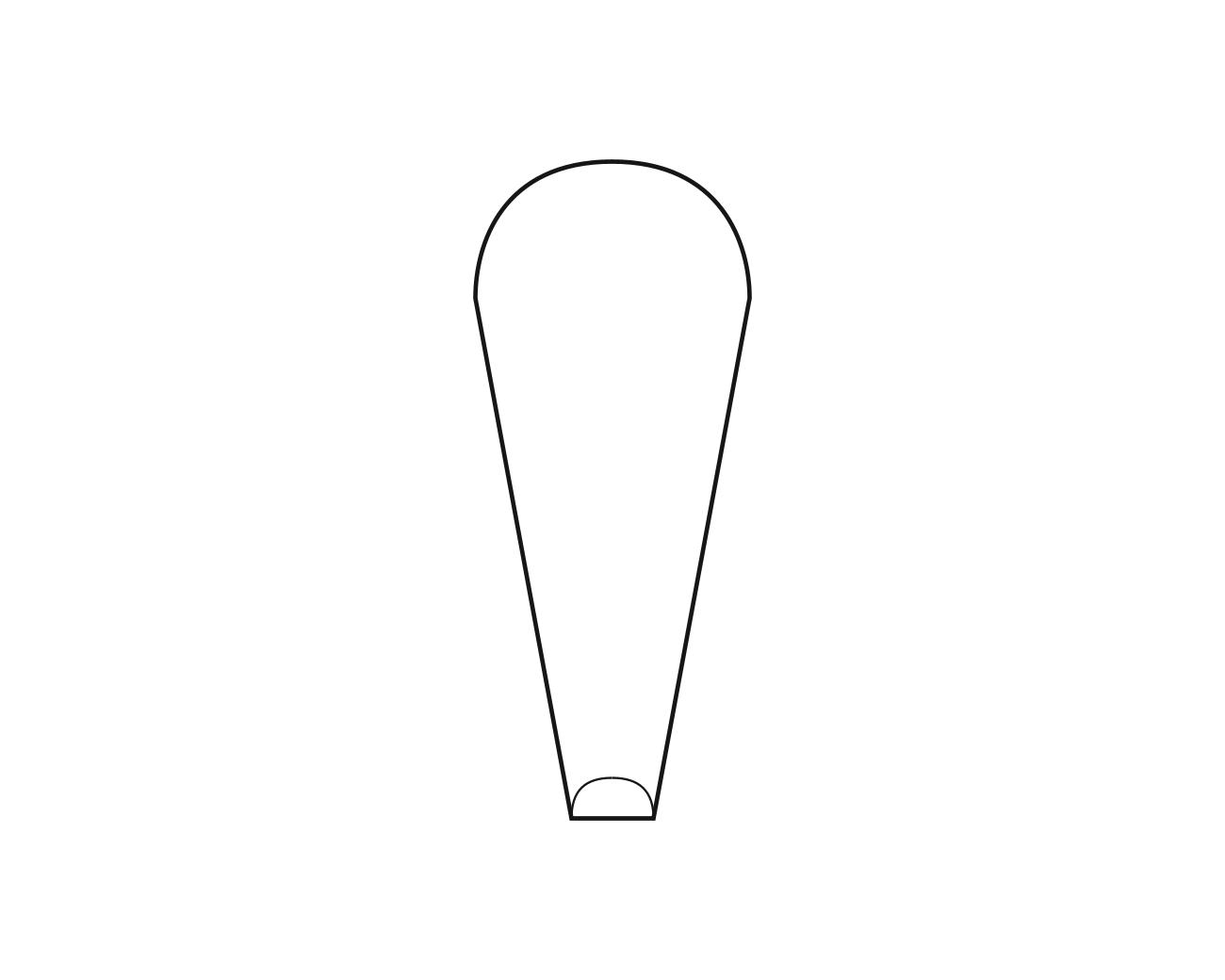

Tip style
5
Tip features
very fine, sharp
Tip type
straight
ESD safe
yes
Body material
SA
Tip material
CP
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
25.00 - 0.984

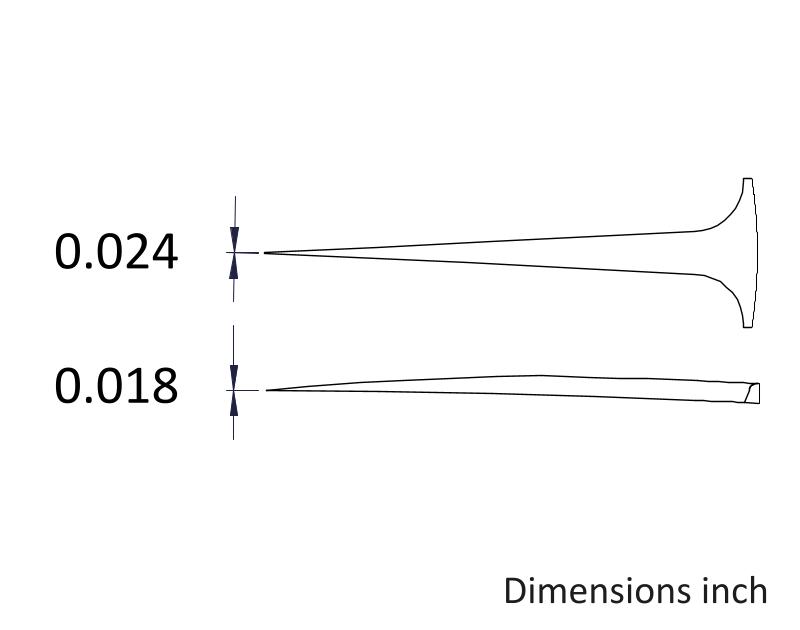

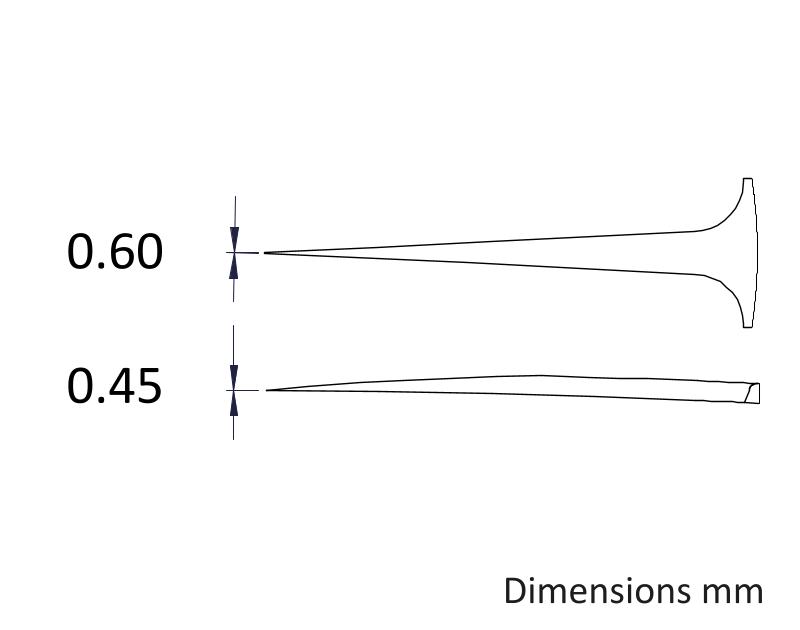

Tip thickness (mm - in)
0.45 - 0.018
Tip width (mm - in)
0.60 - 0.024
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
17.5 - 0.039
RoHS compliant
yes
