AAElectronics
Tweezers
Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

5XCFR.SA.1

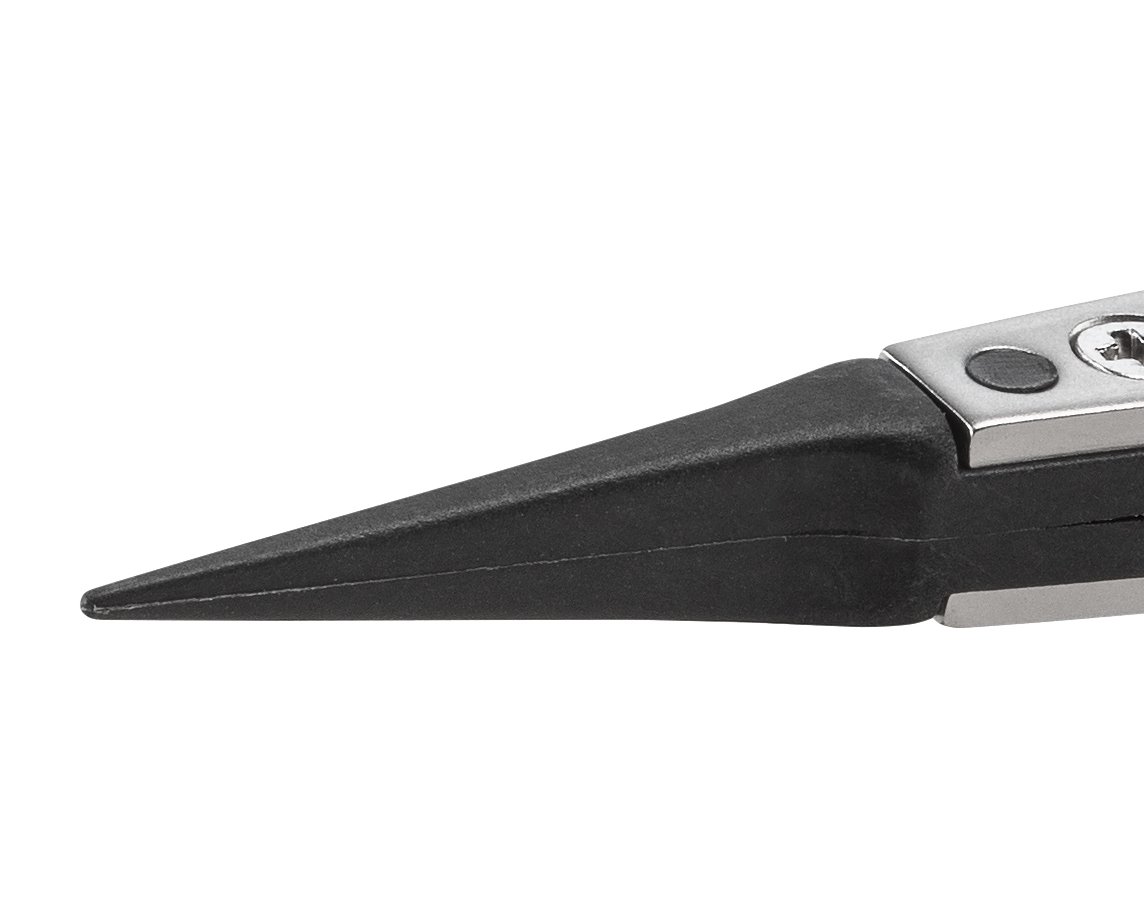

Plastic replaceable tip tweezers - Carbon fiber - Reverse action - tips: straight, very fine, sharp (#A5CF). OAL: 125mm - 4.92". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 5XCF Plastic replaceable tip tweezers are suitable to applications which require holding a flat component firmly. Reverse action helps to hold the component firmly in a resting position. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers

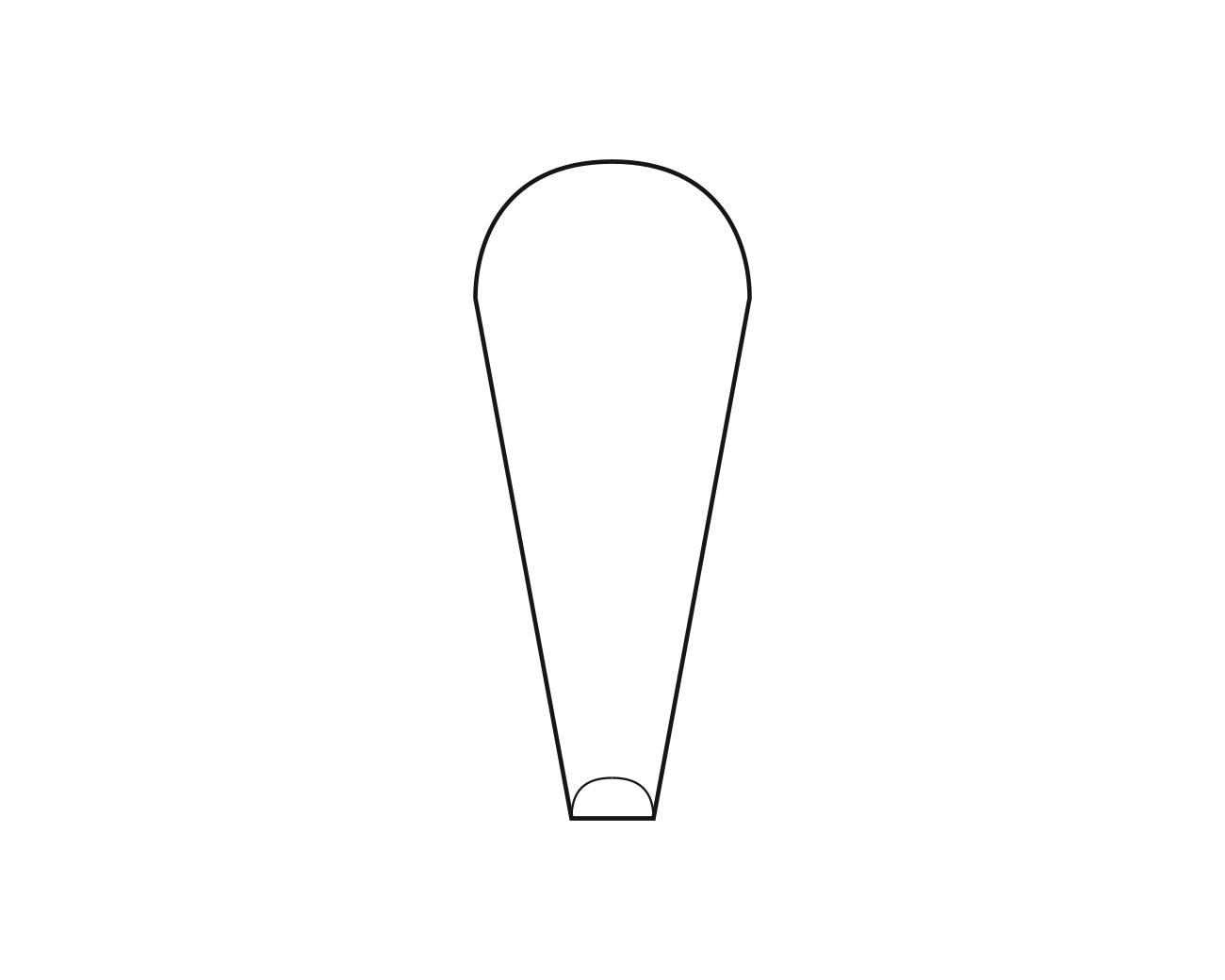

Tip style
5
Tip features
very fine, sharp
Tip type
straight
Reverse action
yes
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
125.00 - 4.921
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
14.00 - 0.551
Tip length (mm - in)
25.00 - 0.984

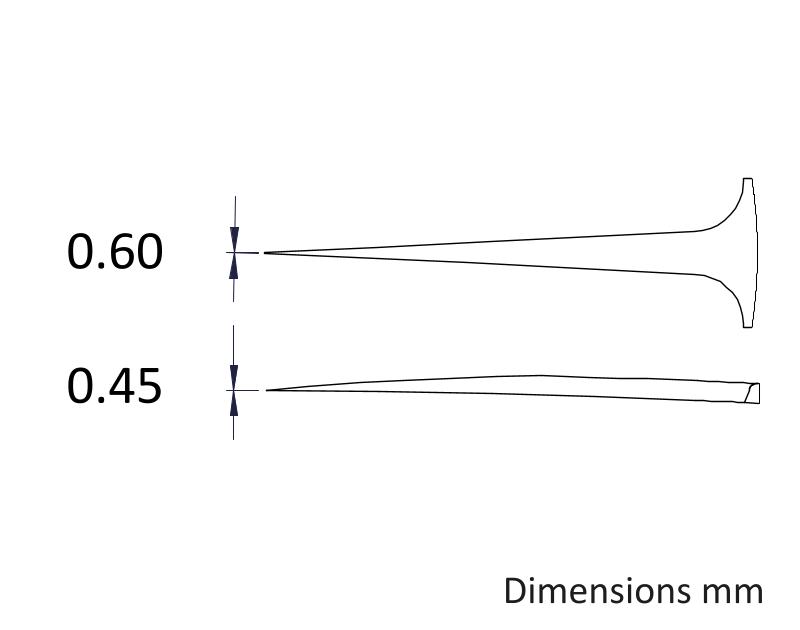

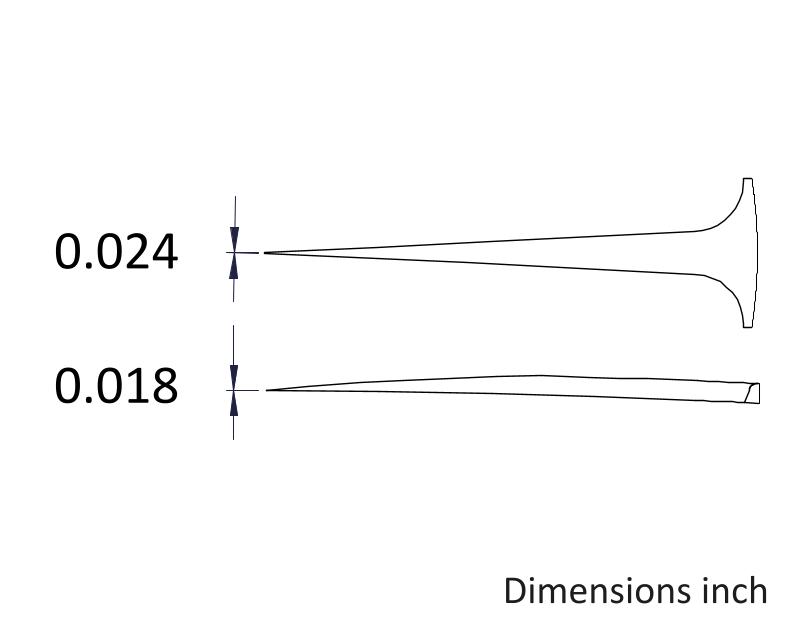

Tip thickness (mm - in)
0.45 - 0.018
Tip width (mm - in)
0.60 - 0.024
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
14.0 - 0.031
RoHS compliant
yes
