Plastic Replaceable Tip Tweezers

8WLCPRSG.SA.1

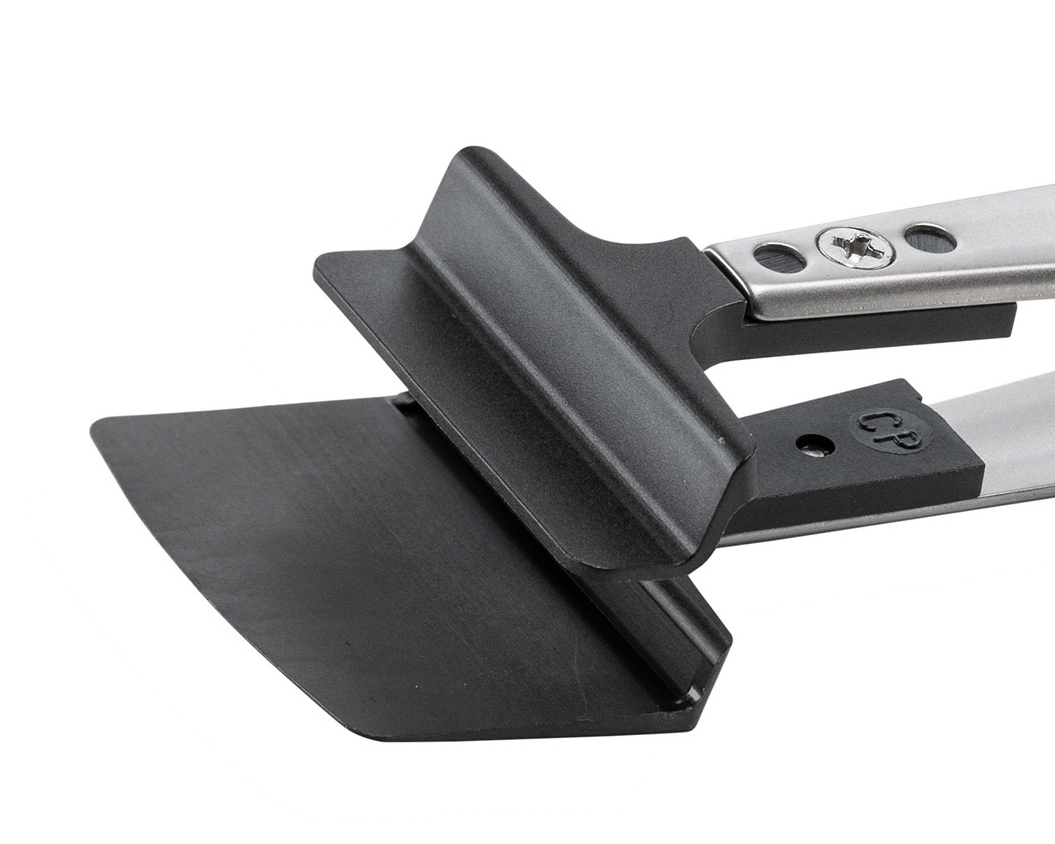

Plastic replaceable wafer tip tweezers - Carbon PEEK - serrated handles - tips: handling 6", top lip, stepped bottom paddle (#A8WLCP). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 8WLCP Plastic replaceable tip tweezers are suitable to delicate applications which require holding a 6-inch flat component firmly. The line serration provides the handles with extra grip. The bent paddle helps to hold the component still during positioning. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers ESD and non-scratching properties combined with excellent high temperature resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
8WL
Tip features
wafer
Tip type
straight
Reverse action
no
Handle serration type
Line serrated
Component diameter/ cutting capacity (mm)
6
ESD safe
yes
Body material
SA
Tip material
CP
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
27.00 - 1.063
Product height (mm - in)
14.00 - 0.551
Tip length (mm - in)
25.00 - 0.984
Tip width (mm - in)
27.00 - 1.063

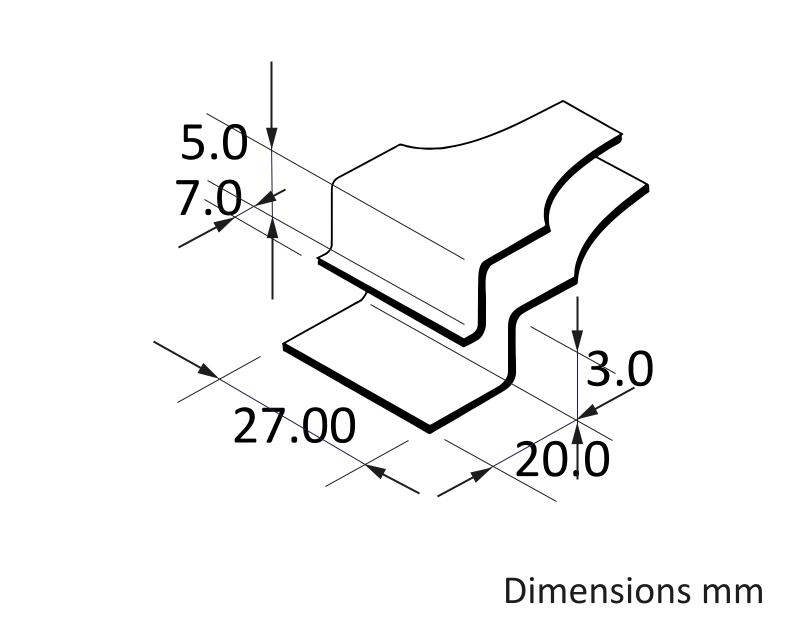

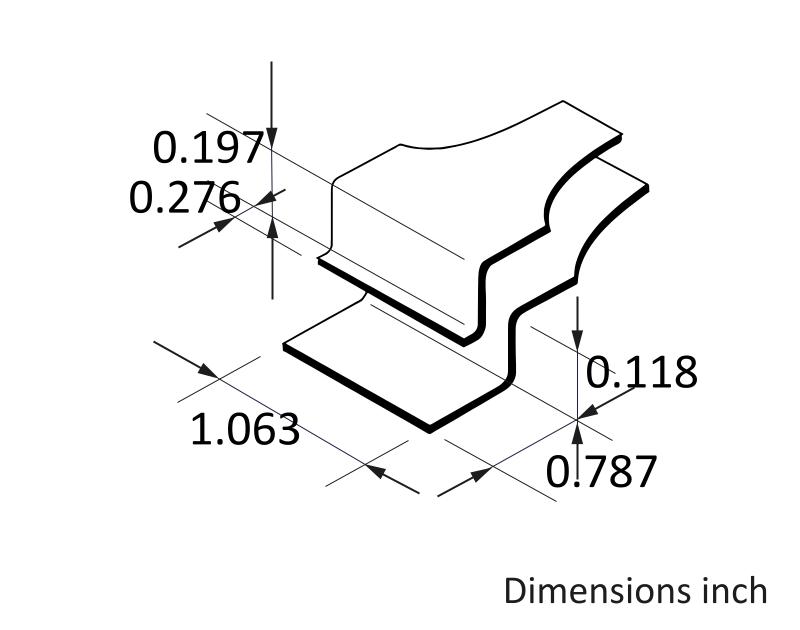

Wafer B (mm - in)
20.0 - 0.787
Wafer C (mm - in)
3.0 - 0.118
Wafer D (mm - in)
5.0 - 0.197
Wafer E (mm - in)
7.0 - 0.276
Tip opening gap (mm - in)
6.0 - 0.236
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
no
