272CFR.SA.1

Tweezers | Plastic Replaceable Tip Tweezers

Plastic replaceable tip tweezers - Carbon fiber - tips: straight, fine, squared, flat (#A272CF). OAL: 130mm - 5.12". ESD safe

Type 272CF Plastic replaceable tip tweezers are suitable to applications which require holding a big component firmly. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Documents
272CFR.SA.1 Datasheet Tip material TDS Body material TDS
Related products
Information request about this product
Product Details
Title
Value
Category
Plastic Replaceable Tip Tweezers
Tip style
272
Tip type characteristic
fine, squared, flat
Straight / Bent / angled / curved tip
straight
ESD safe
yes
Body material
SA
Tip material
CF
Full body coating/finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Title
Value
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
18.00 - 0.709
Tip length (mm - in)
27.00 - 1.063

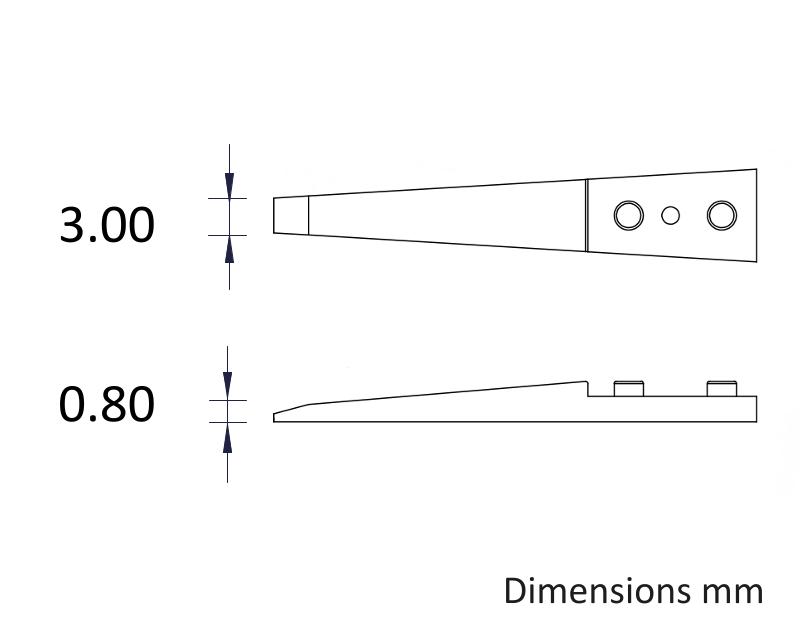

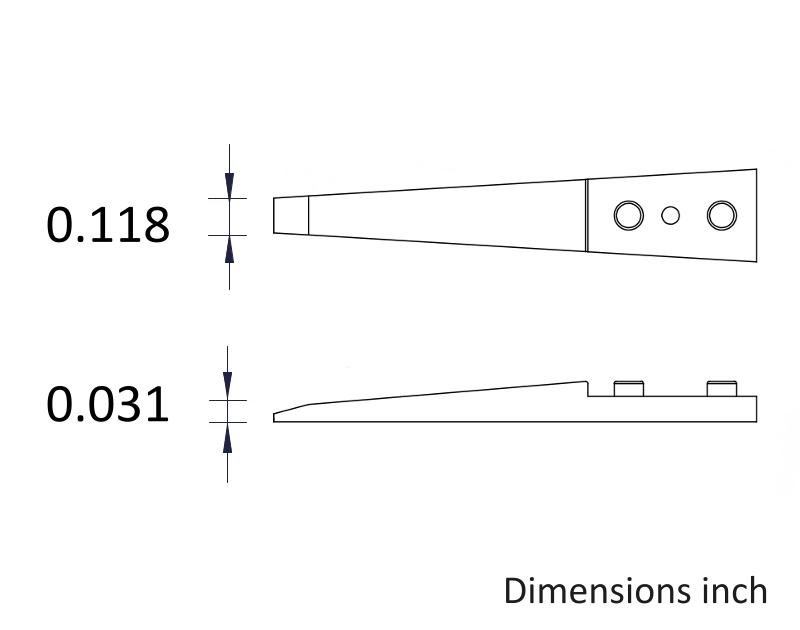

Tip thickness (mm - in)
0.80 - 0.031
Tip width (mm - in)
3.00 - 0.118
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
