279CCFR.SA.1

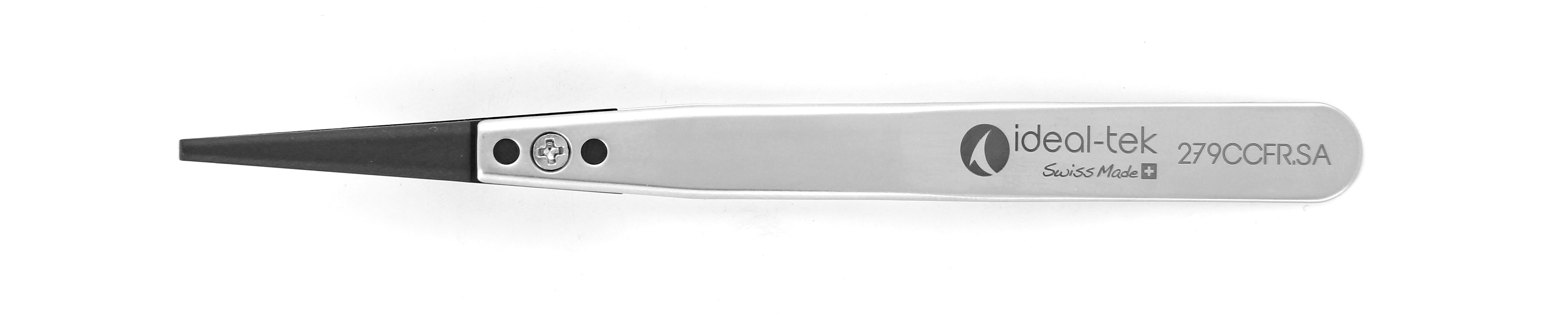

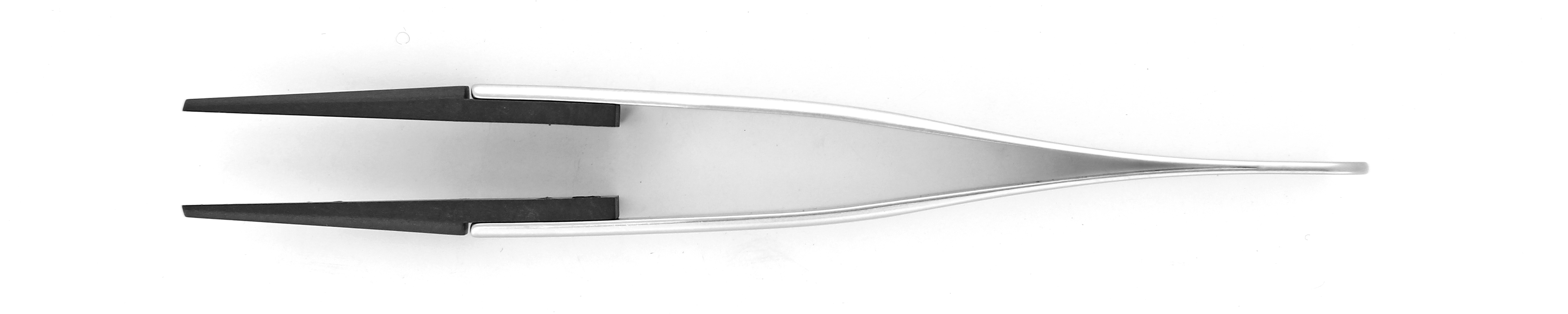

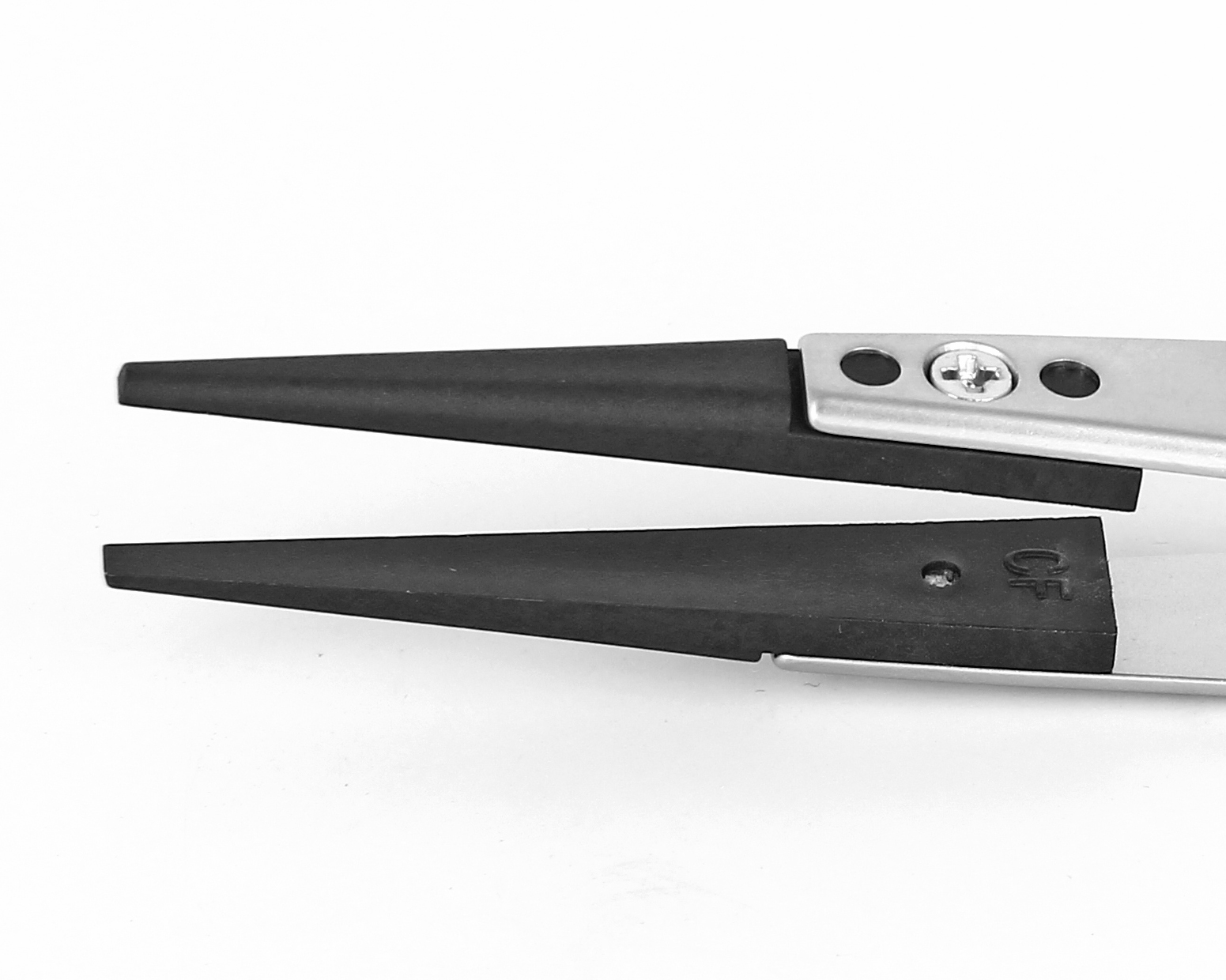

Tweezers | Plastic Replaceable Tip Tweezers

Plastic replaceable tip tweezers - Carbon fiber - tips: straight, thick, squared, flat (#A279CF). OAL: 115mm - 4.53". ESD safe

Type 279CF Plastic replaceable tip tweezers are suitable to applications which require holding a big component firmly. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Documents
279CCFR.SA.1 Datasheet Tip material TDS Body material TDS
Related products
Information request about this product
Product Details
Title
Value
Category
Plastic Replaceable Tip Tweezers
Tip style
279
Tip type characteristic
thick, squared
Straight / Bent / angled / curved tip
straight
ESD safe
yes
Body material
SA
Tip material
CF
Full body coating/finishing
Sandblasted
Product OAL (mm - in)
115.00 - 4.528
Title
Value
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63

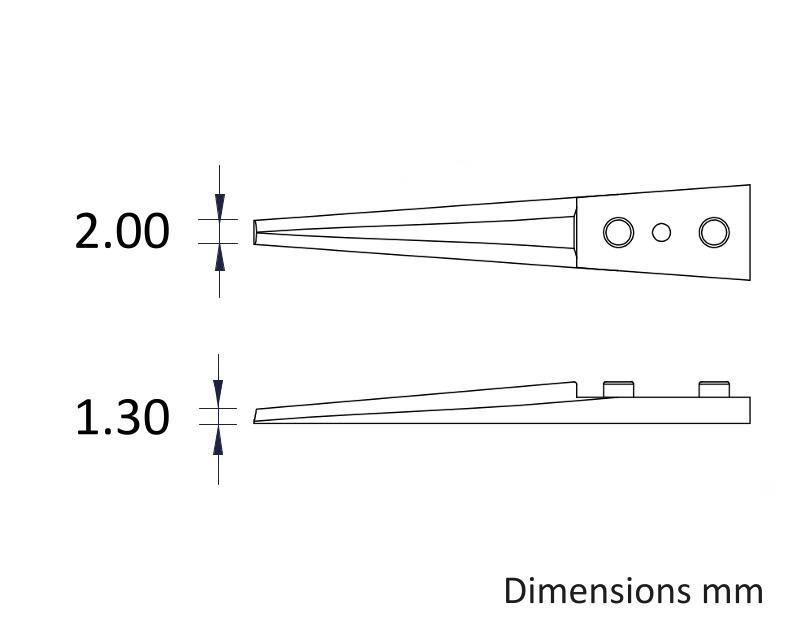

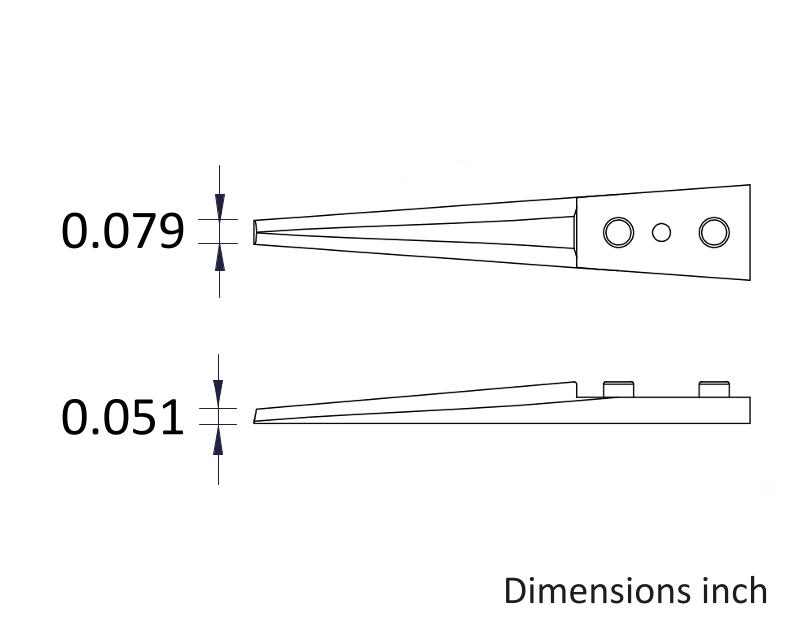

Tip length (mm - in)
27.00 - 1.063
Tip thickness (mm - in)
1.30 - 0.051
Tip width (mm - in)
2.00 - 0.079
Tip opening gap (mm - in)
8.0 - 0.315
Net weight (g-lb)
14.0 - 0.031
RoHS compliant
yes
