AAMedical device
Tweezers
Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

00SVR.SA.1

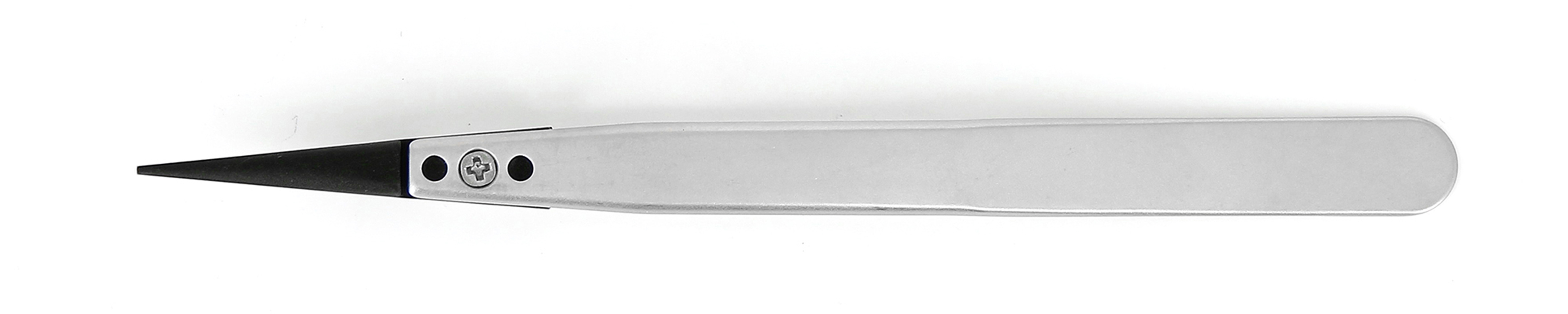

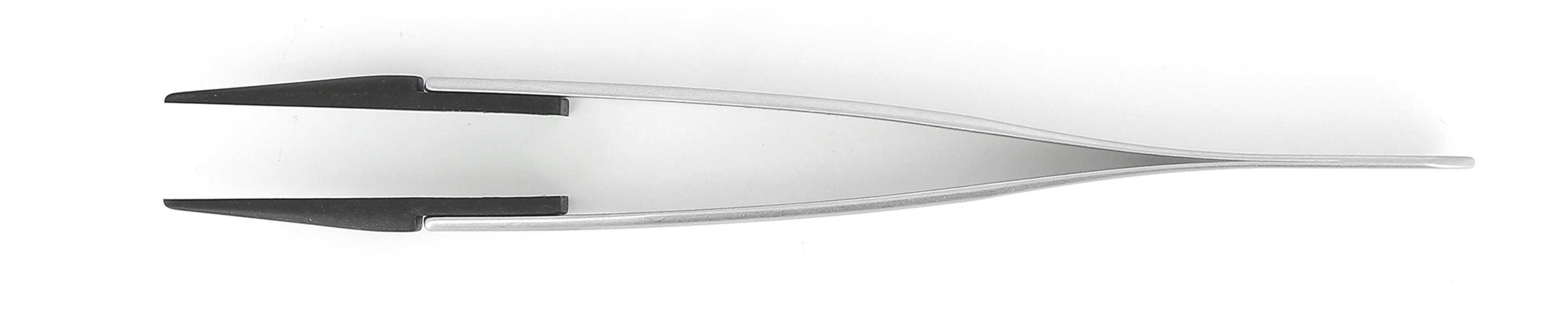

Plastic replaceable tip tweezers - PVDF - tips: straight, thick, squared, strong (#A00SV). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy

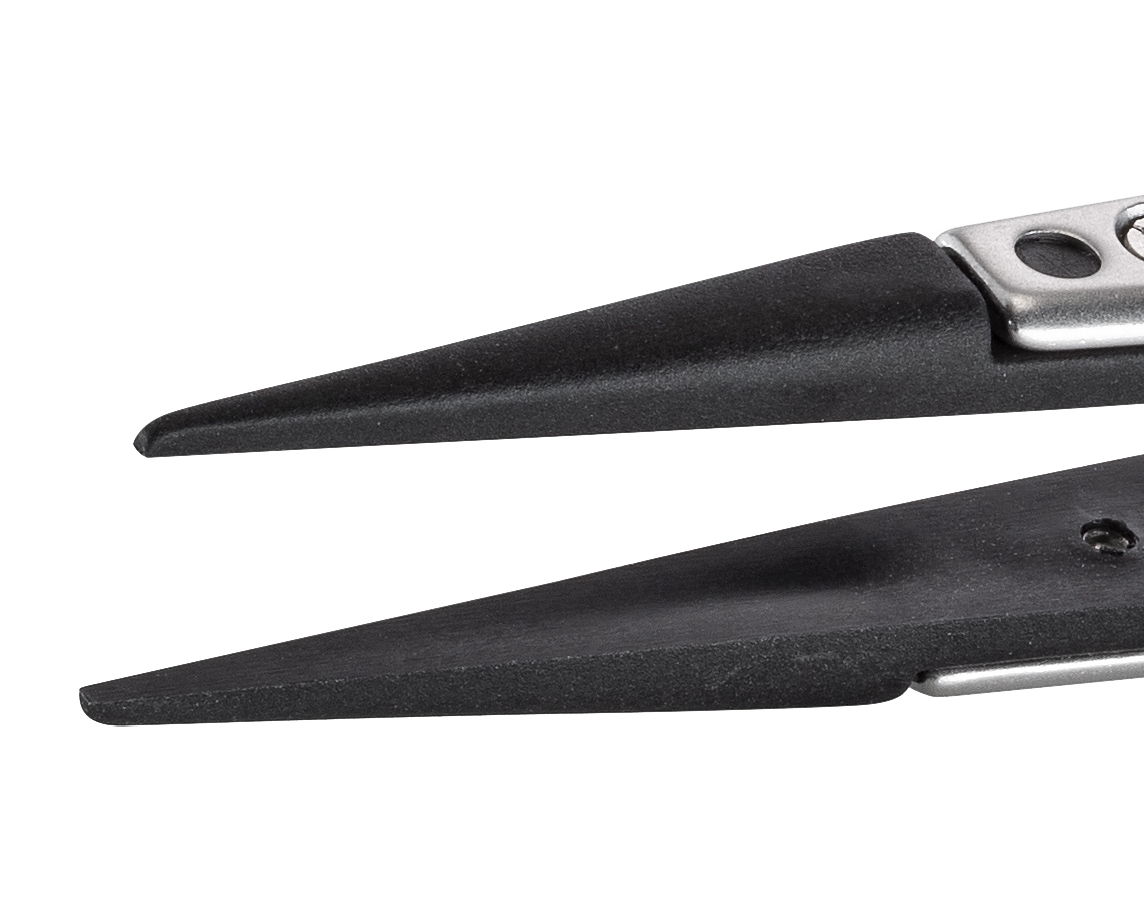

Type 00SV Plastic replaceable tip tweezers are suitable to applications which require holding a component firmly. The Carbon Fiber reinforced ESD PVDF Plastic provides the tweezers with ESD and exceptional non-scratching properties combined with excellent chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers

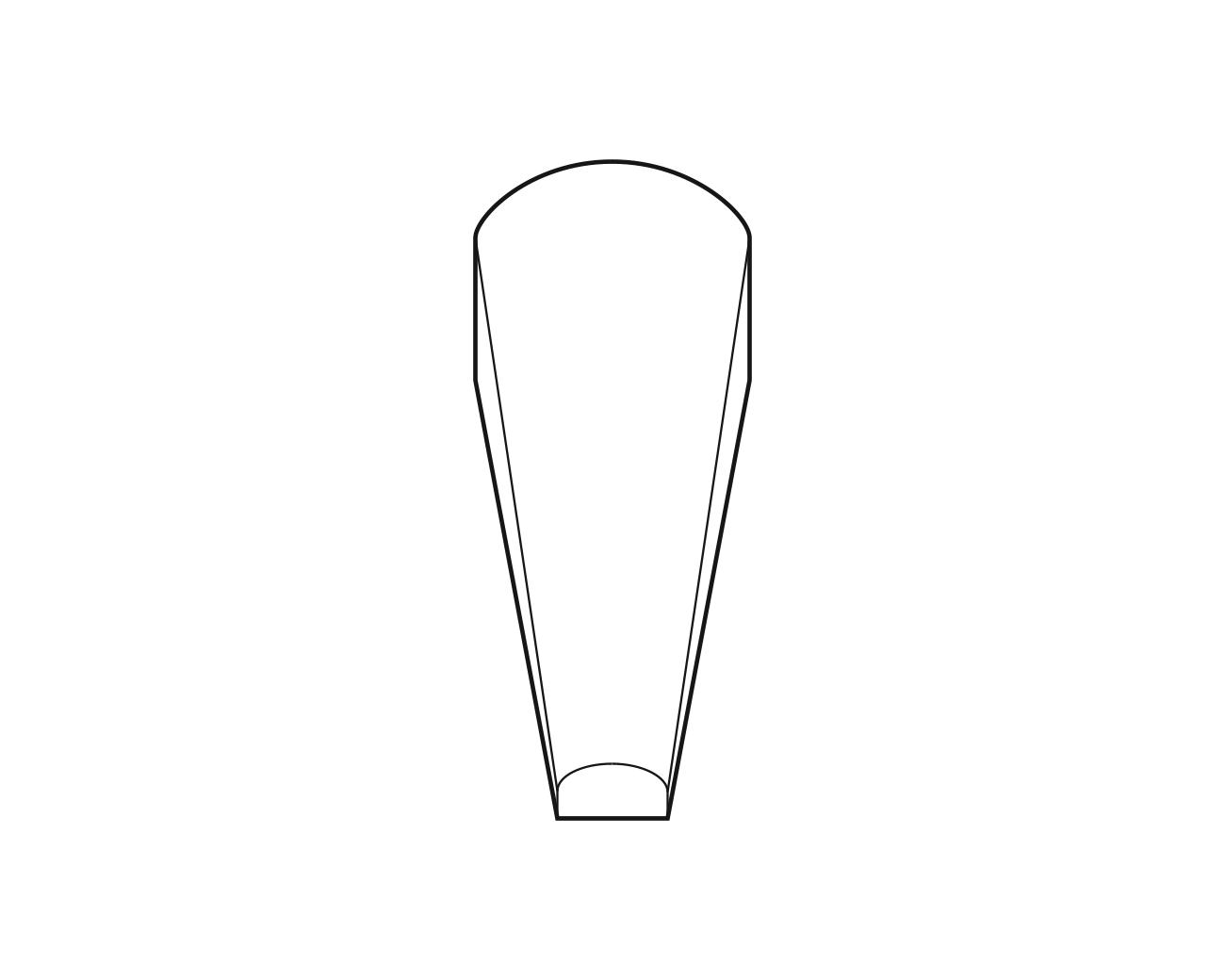

Tip style
00
Tip features
thick, squared, strong
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
SV
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63
Tip length (mm - in)
25.00 - 0.984

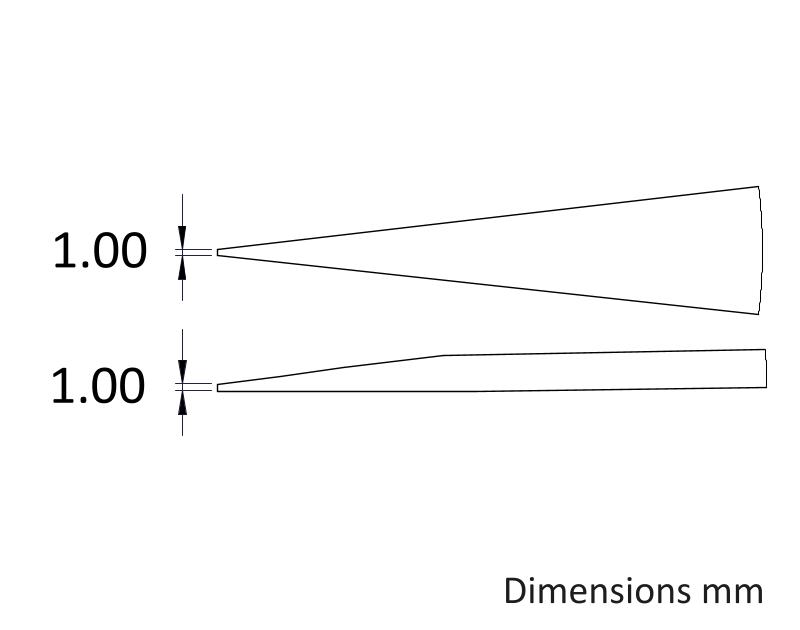

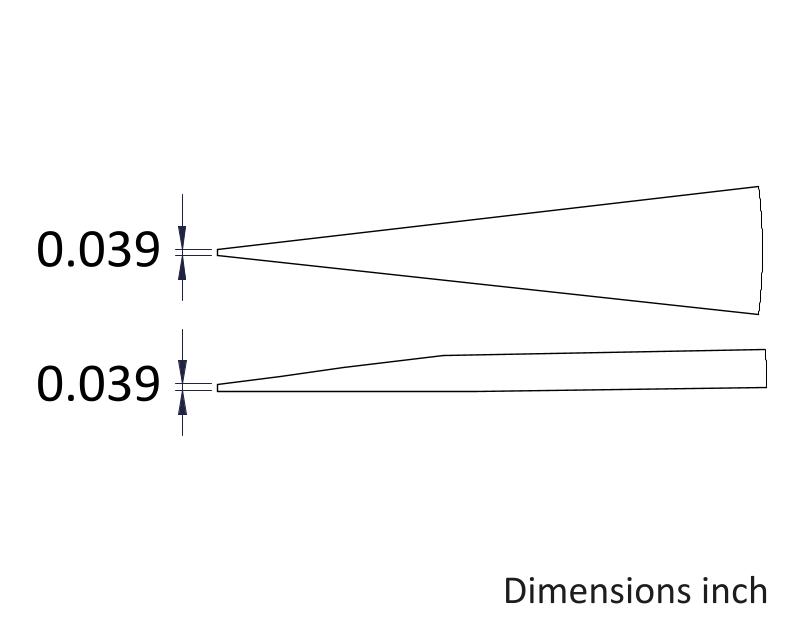

Tip thickness (mm - in)
1.00 - 0.039
Tip width (mm - in)
1.00 - 0.039
Tip opening gap (mm - in)
10.0 - 0.394
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
