Wafer Tweezers

8WNY.SA.1

Wafer tweezers - Anti-Acid/Anti-Mag SS, Nylon tips - serrated handles - tips: handling 8', top lip, stepped bottom paddle. OAL: 150mm - 5.91"

Documents

Datasheet Download Tip material TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

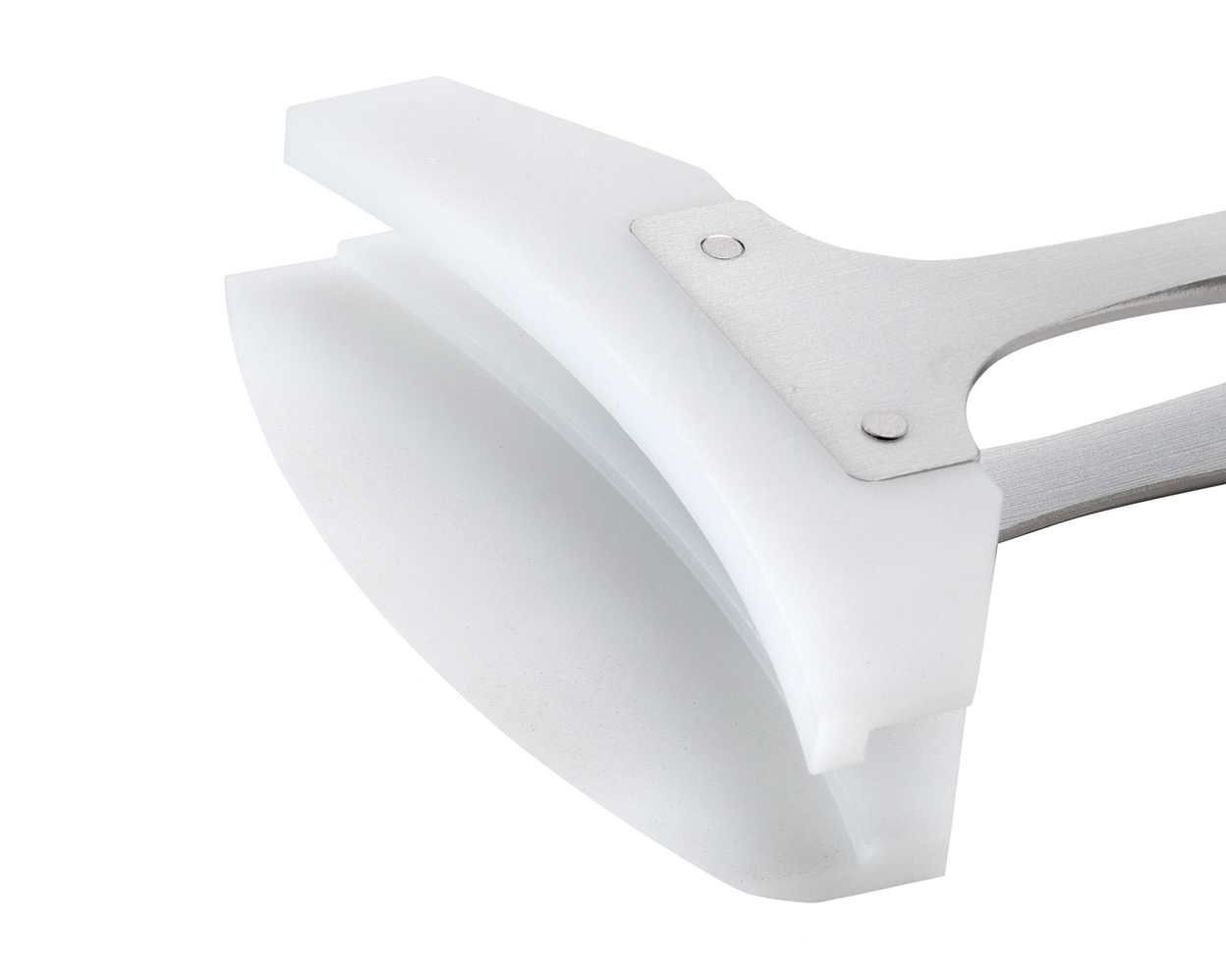

Type 8WNY Plastic tip tweezers are suitable to delicate applications which require holding a 8-inch flat component firmly. The Glass Fiber reinforced Plastic provides the tweezers with insulative and non-scratching properties combined with good chemical resistance.

Product Details

Category

Wafer Tweezers

Tip style

8W

Tip features

wafer

Tip type

straight

Reverse action

no

Handle serration type

line serrated

Component diameter/ cutting capacity (in)

8

ESD safe

no

Body material

SA

Tip material

NY

Body coating/ finishing

Sandblasted

Product OAL (mm - in)

150.00 - 5.906

Product width (mm - in)

65.00 - 2.559

Product height (mm - in)

16.00 - 0.63

Tip thickness (mm - in)

2.50 - 0.098

Tip width (mm - in)

65.00 - 2.559

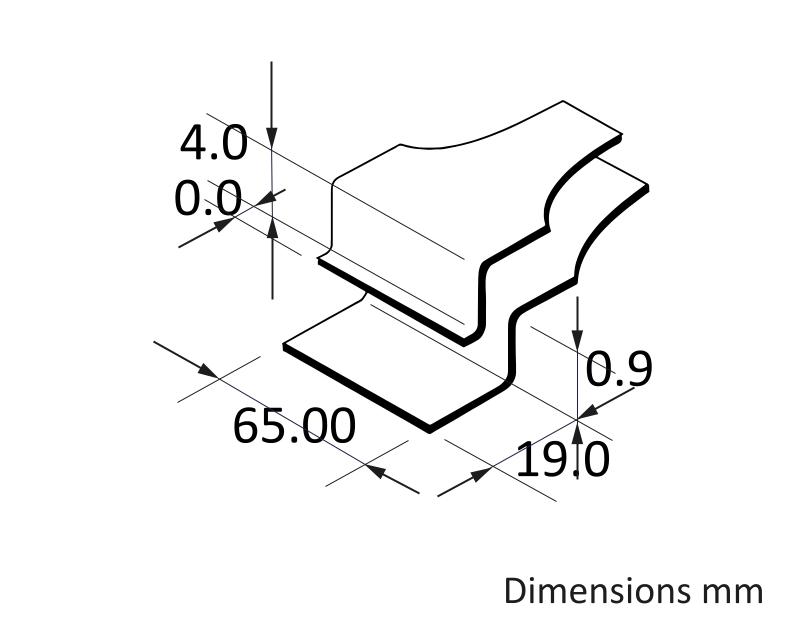

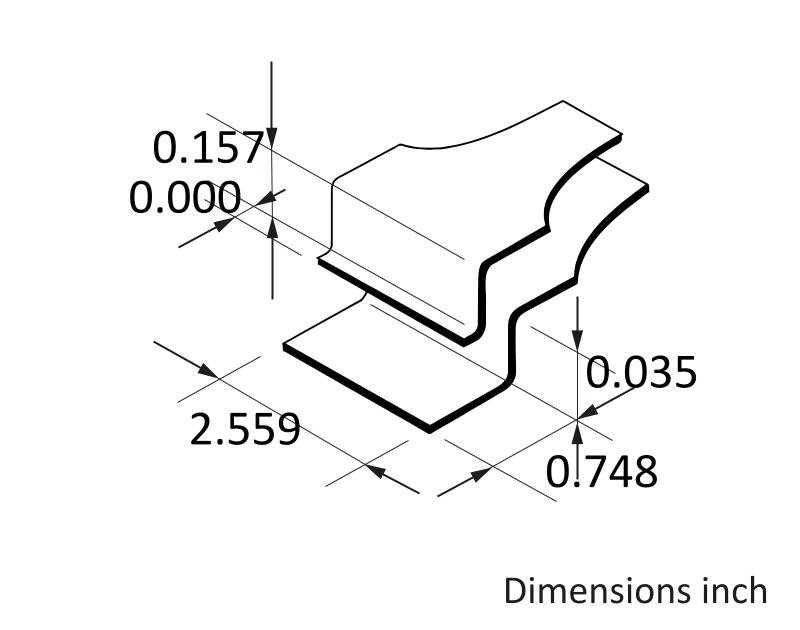

Wafer B (mm - in)

19.0 - 0.748

Wafer C (mm - in)

0.9 - 0.035

Wafer D (mm - in)

4.0 - 0.157

Tip opening gap (mm - in)

6.0 - 0.236

Net weight (g-lb)

38.0 - 0.084

RoHS compliant

yes
