Plastic Tweezer Tips

A4WFSV

Kit of 2 PVDF tips and 3 screws - tips: wafer, handling 4", top fingers, stepped bottom paddle (for #4WFSVR.SA Tweezers). OAL: 40mm - 1.57". ESD safe

Documents

Datasheet Download Tip material TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

Kit of 2 Carbon Fiber tips and 3 screws for type 4WFSV tweezers is suitable to delicate applications which require holding a 4-inch flat component firmly. The Carbon Fiber reinforced ESD PVDF Plastic provides the tweezers with ESD and exceptional non-scratching properties combined with excellent chemical resistance.

Product Details

Category

Plastic Tweezer Tips

Tip style

4WF

Tip features

wafer

Tip type

straight

Reverse action

no

Component diameter/ cutting capacity (mm)

3

ESD safe

yes

Body material

SV

Tip material

SV

Product OAL (mm - in)

40.00 - 1.575

Product width (mm - in)

12.00 - 0.472

Product height (mm - in)

10.00 - 0.394

Tip length (mm - in)

40.00 - 1.575

Tip width (mm - in)

12.00 - 0.472

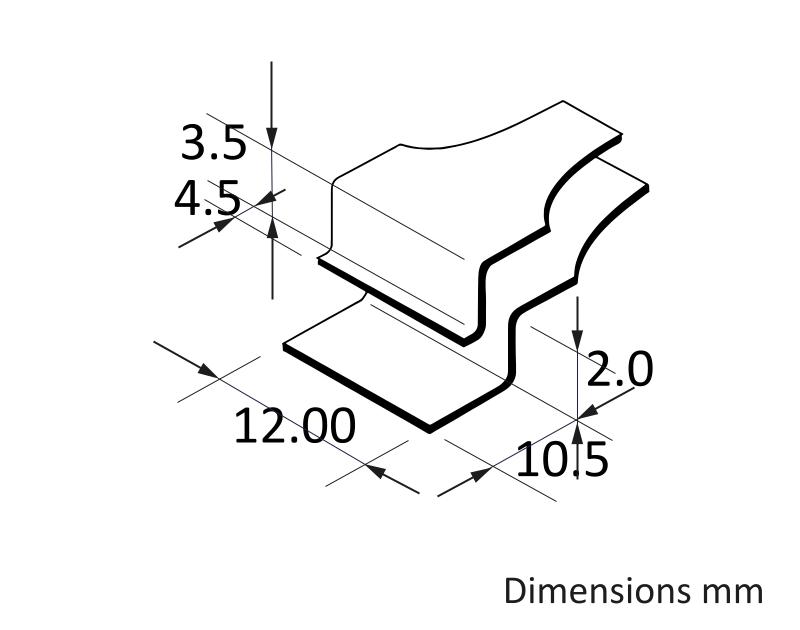

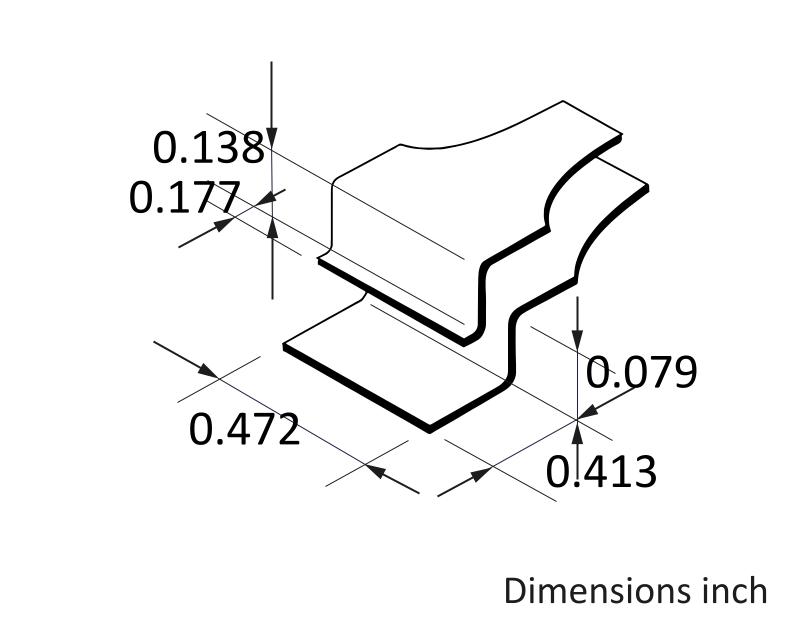

Wafer B (mm - in)

10.5 - 0.413

Wafer C (mm - in)

2.0 - 0.079

Wafer D (mm - in)

3.5 - 0.138

Wafer E (mm - in)

4.5 - 0.177

Net weight (g-lb)

2.0 - 0.004

RoHS compliant

yes
