Plastic Tweezer Tips

A8WLCP

Kit of 2 Carbon PEEK tips and 3 screws - tips: wafer, handling 6", top lip, stepped bottom paddle (for #8WLCPRSG.SA Tweezers). OAL: 40mm - 1.57". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Kit of 2 Carbon Fiber tips and 3 screws for type 8WLCP tweezers is suitable to delicate applications which require holding a 6-inch flat component firmly. The bent paddle helps to hold the component still during positioning. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers with ESD and non-scratching properties combined with excellent high temperature resistance.
Product Details
Category
Plastic Tweezer Tips
Tip style
8WL
Tip features
wide, wafer
Tip type
straight
Reverse action
no
Component diameter/ cutting capacity (mm)
6
ESD safe
yes
Body material
CP
Tip material
CP
Body coating/ finishing
Sandblasted

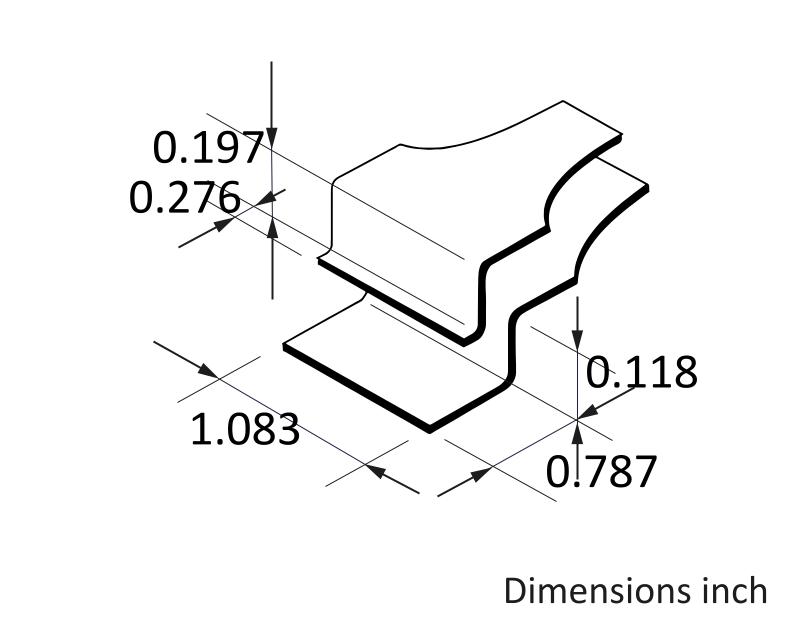

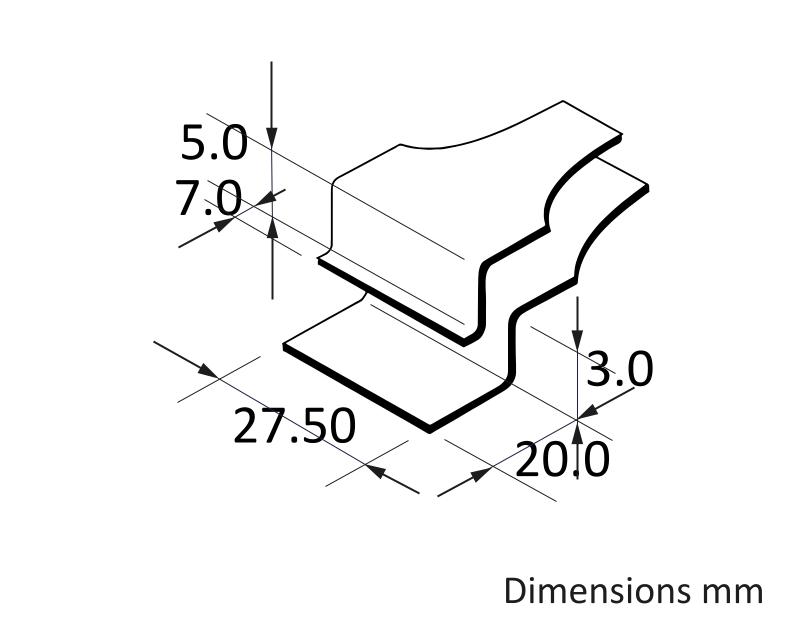

Product OAL (mm - in)
40.00 - 1.575
Product width (mm - in)
28.00 - 1.102
Product height (mm - in)
14.00 - 0.551
Tip width (mm - in)
27.50 - 1.083
Wafer B (mm - in)
20.0 - 0.787
Wafer C (mm - in)
3.0 - 0.118
Wafer D (mm - in)
5.0 - 0.197
Wafer E (mm - in)
7.0 - 0.276
Net weight (g-lb)
2.0 - 0.004
RoHS compliant
yes
