Plastic Replaceable Tip Tweezers

2ABSVR.SA.1

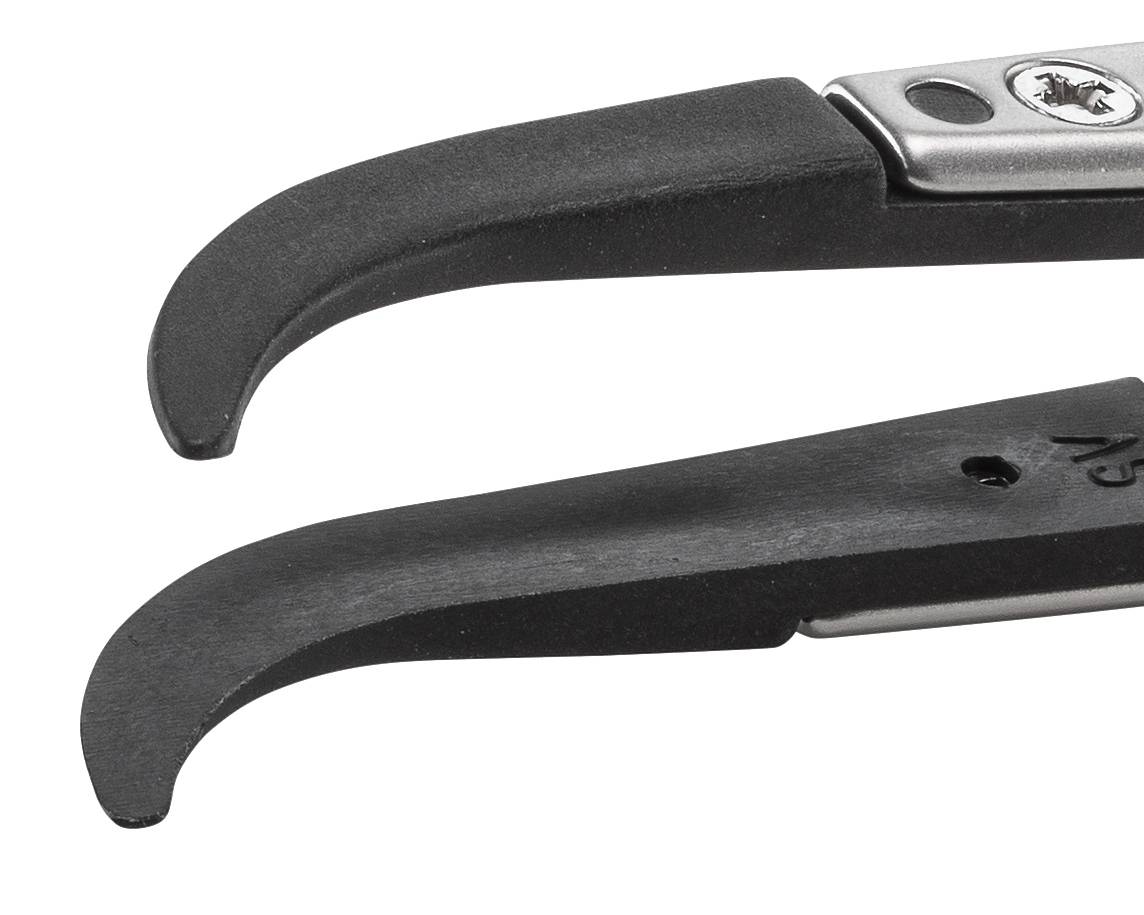

Plastic replaceable tip tweezers - PVDF - tips: curved, very fine, round, flat (#A2ABSV). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 2ABSV Plastic replaceable tip tweezers are suitable to applications which require holding a flat component firmly. The curved geometry provides maximum visibility and increased ergonomics. The Carbon Fiber reinforced ESD PVDF Plastic provides the tweezers with ESD and exceptional non-scratching properties combined with excellent chemical resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers

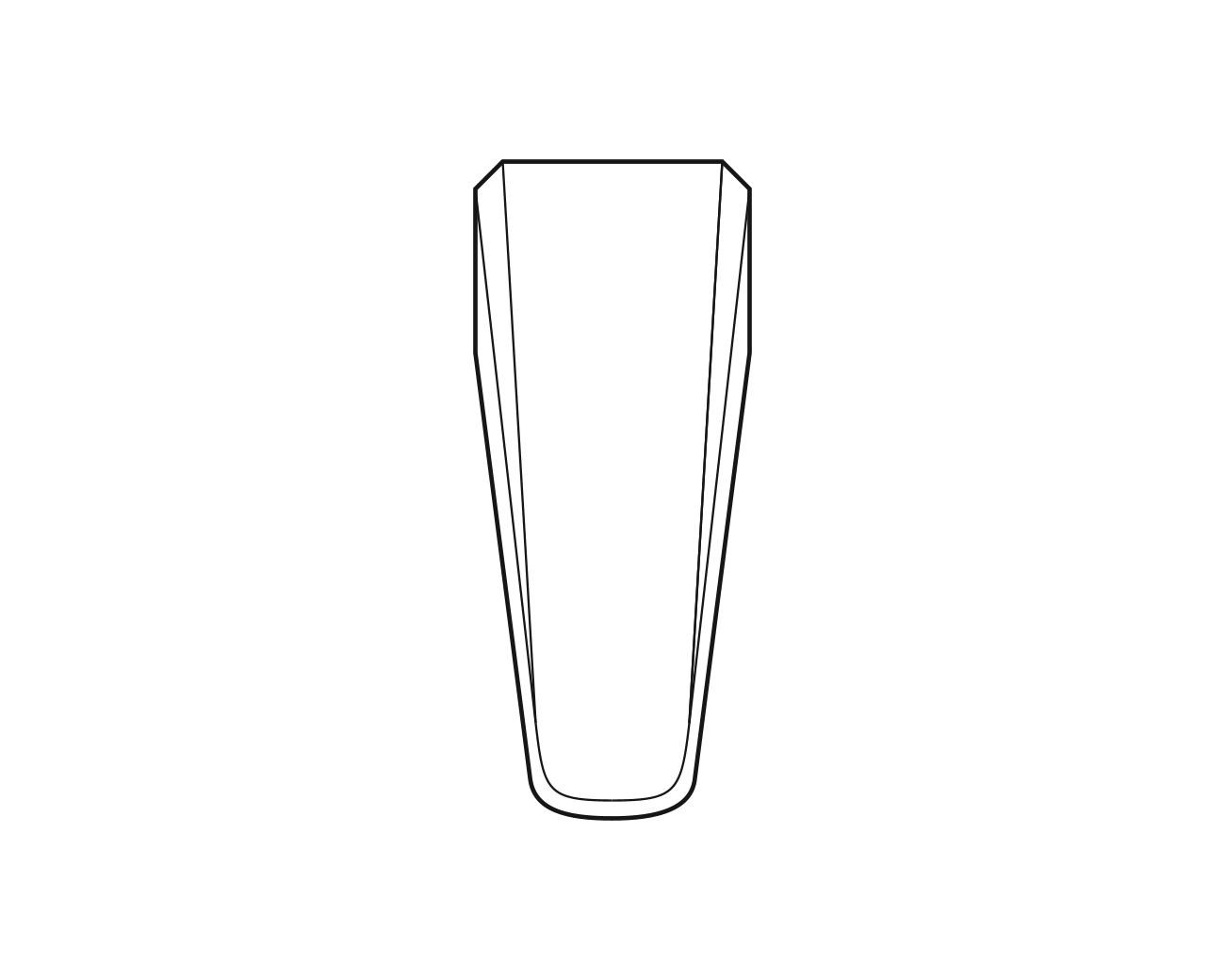

Tip style
2AB
Tip features
very fine, round, flat
Tip type
curved
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
SV
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
15.00 - 0.591
Product height (mm - in)
17.00 - 0.669

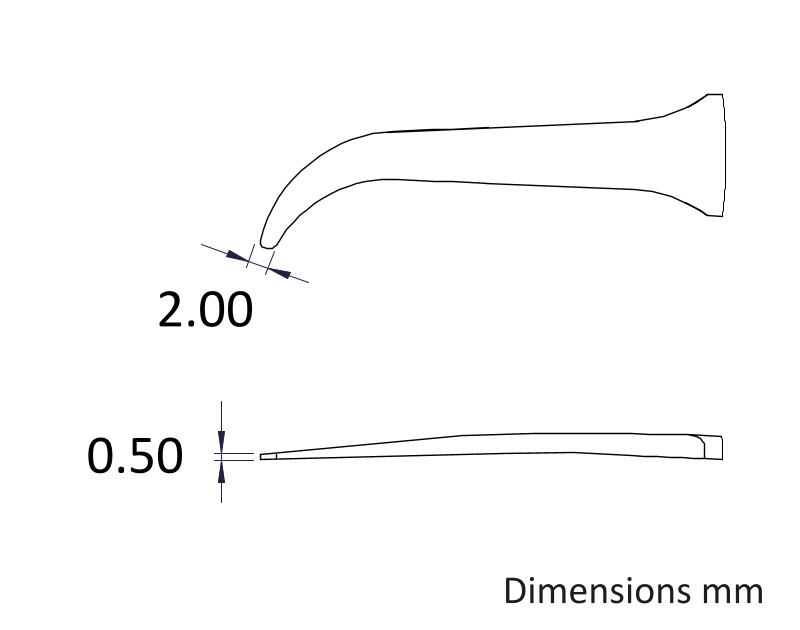

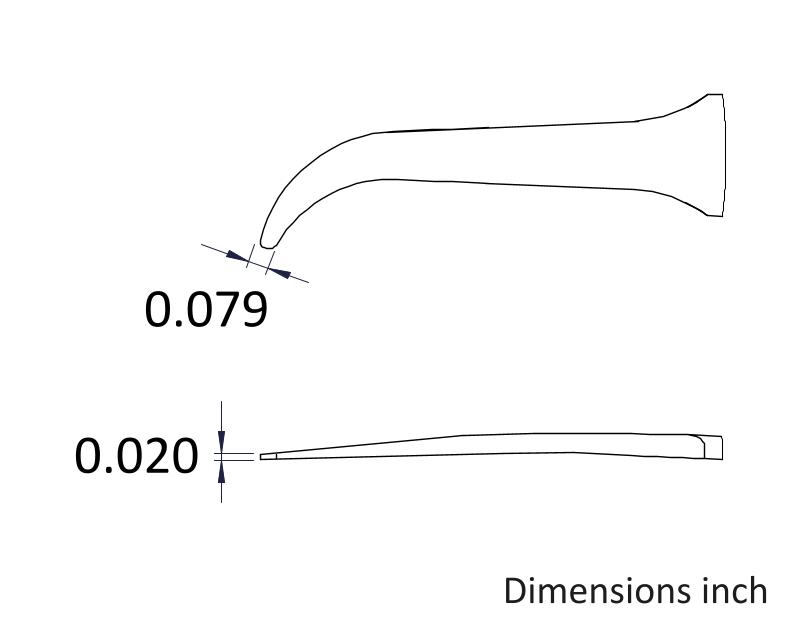

Tip length (mm - in)
26.00 - 1.024
Tip thickness (mm - in)
0.50 - 0.02
Tip width (mm - in)
2.00 - 0.079
Tip opening gap (mm - in)
10.0 - 0.394
Degree of bending
45.0
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
