Plastic Replaceable Tip Tweezers

5CCFR.SA.1

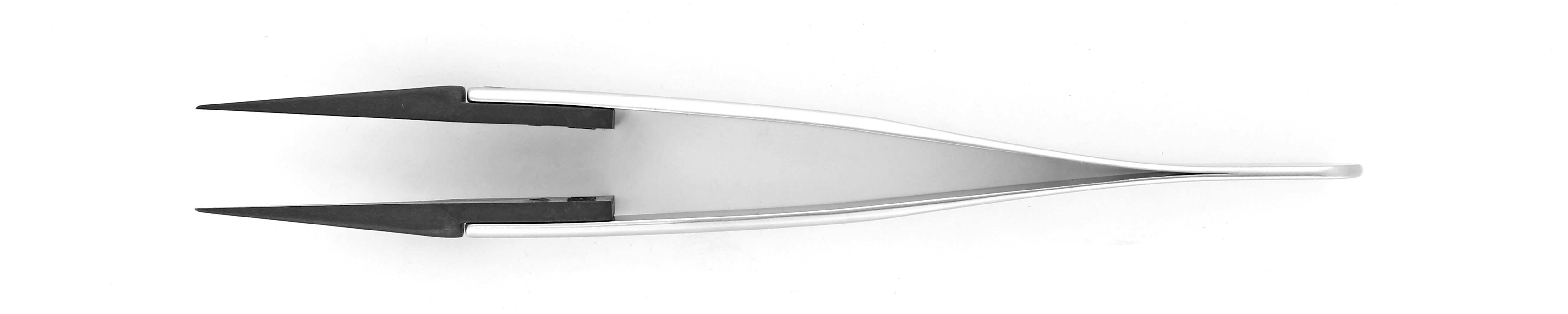

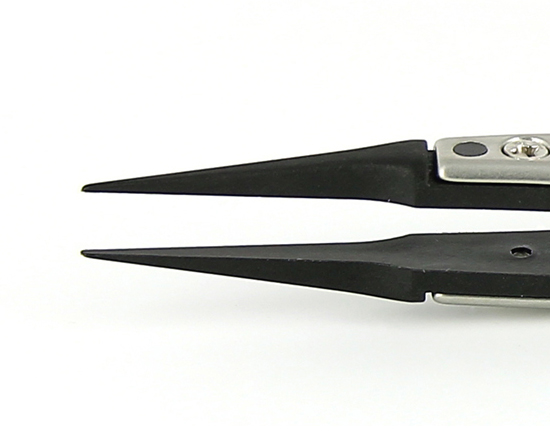

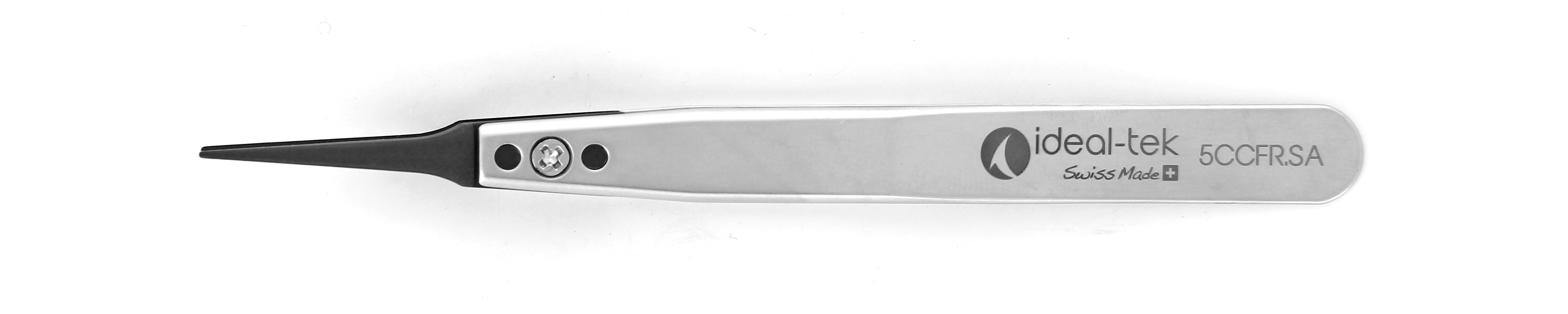

Plastic replaceable tip tweezers - Carbon fiber - tips: straight, very fine, sharp, tapered for maximum visibility (#A5CF). OAL: 115mm - 4.53". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 5CF Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
5
Tip features
very fine, sharp
Tip type
straight
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
115.00 - 4.528
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
15.00 - 0.591
Tip length (mm - in)
25.00 - 0.984

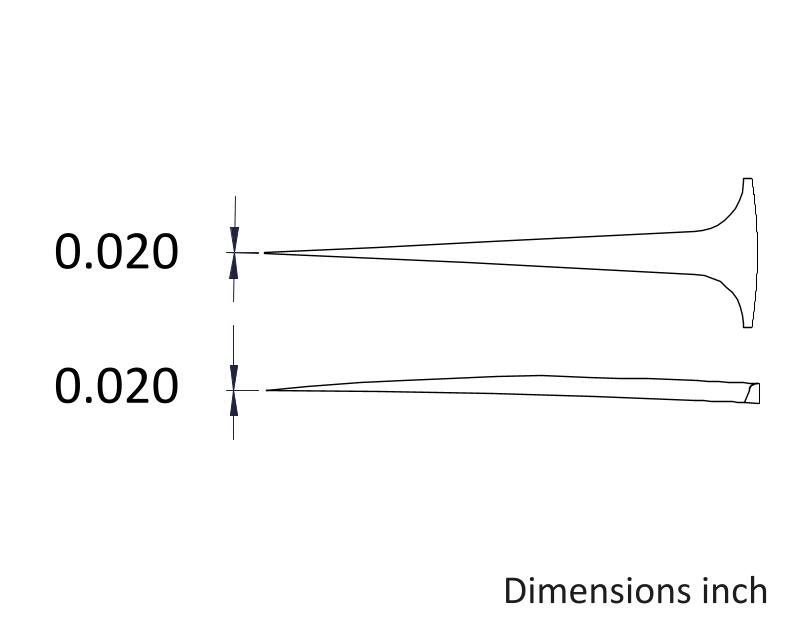

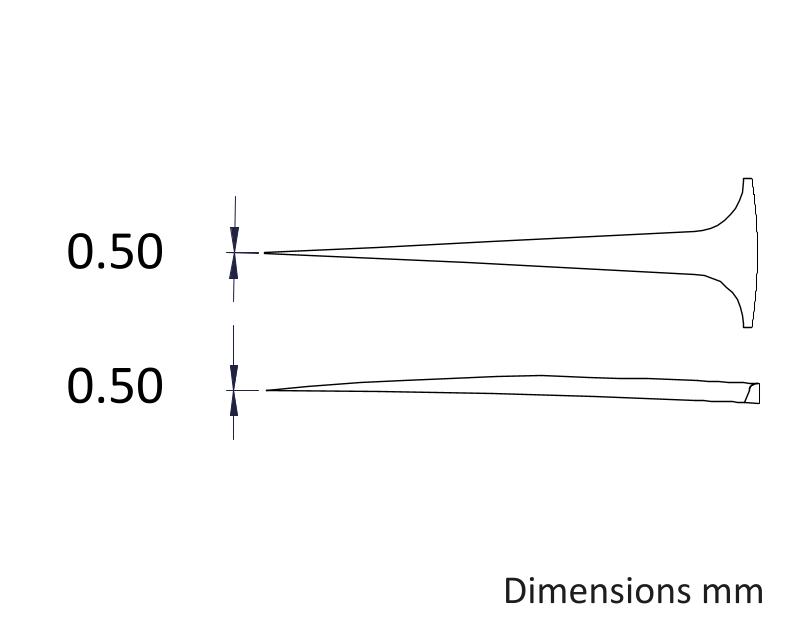

Tip thickness (mm - in)
0.50 - 0.02
Tip width (mm - in)
0.50 - 0.02
Tip opening gap (mm - in)
8.0 - 0.315
Net weight (g-lb)
14.0 - 0.031
RoHS compliant
yes
