15AGHM.SA.NE.0

Tweezers | ESD Epoxy Coated Tweezers

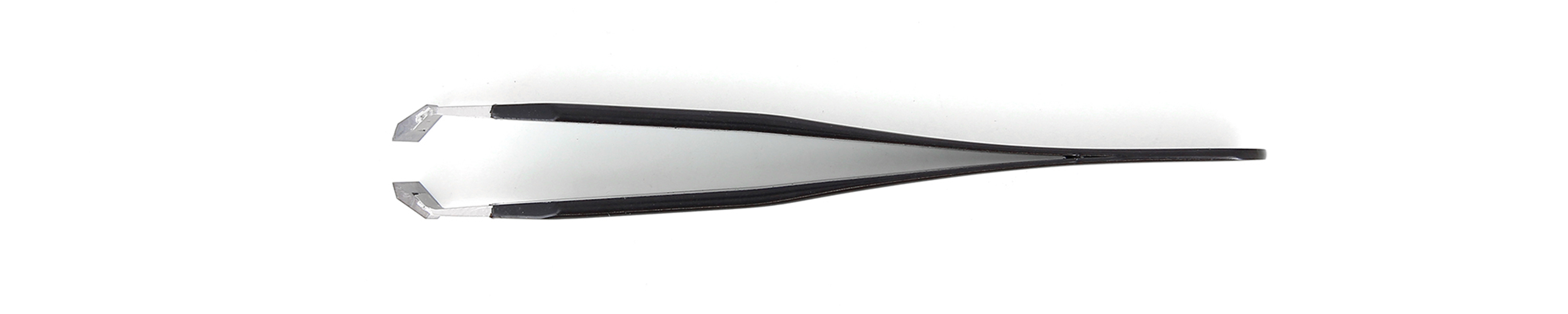

ESD epoxy coated cutting tweezers - Anti-Acid/Anti-Mag SS - tips: cutting, Tungsten carbide insert, parallel blades, superior finish. OAL: 115mm - 4.53"

Type 15AGHM high precision cutting tweezers are suitable to applications which require cutting small material or performing small cuts. The exceptionally extreme hard Tungsten Carbide blade insert is designed to cut the hardest metals. The epoxy coating provides the tweezers with ESD properties suitable to electronic components handling and to clean room use.
Documents
15AGHM.SA.NE.0 Datasheet Handle coating/finishing TDS Body material TDS
Related products
Information request about this product
Product Details
Title
Value
Category
ESD Epoxy Coated Tweezers
Tip style
15AGHM
Tip type
cutting
Straight / Bent / angled / curved tip
parallel blades
Component diameter/ cutting capacity (mm)
0.08 - 0.1
ESD safe
yes
Body material
SA
Tip material
K15
Full body coating/finishing
Sandblasted
Handle coating/finishing
NE
Special features
superior finish
Title
Value
Product OAL (mm - in)
115.00 - 4.528
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
16.00 - 0.63

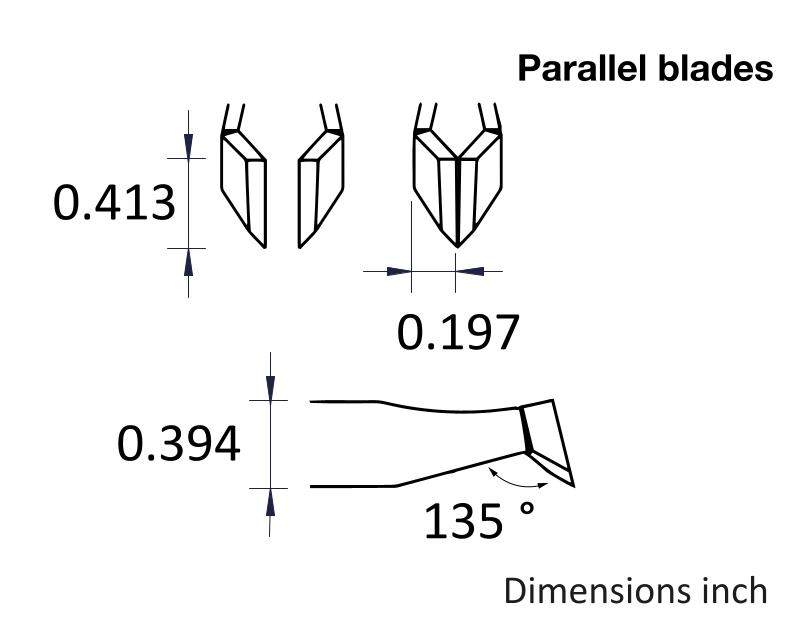

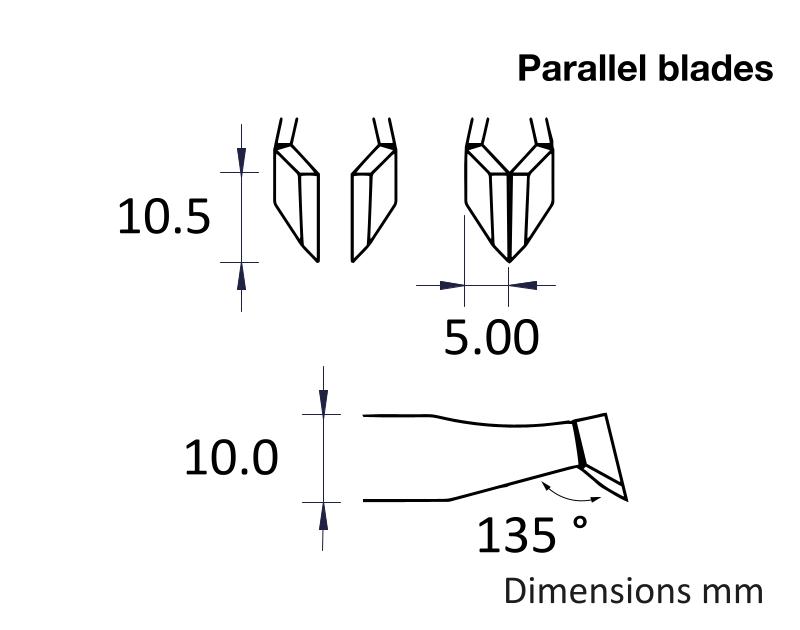

Tip length (mm - in)
10.50 - 0.413
Tip thickness (mm - in)
5.00 - 0.197
Tip width (mm - in)
0.08 - 0.003
Cutting blade touch
Parallel blades
Tip opening gap (mm - in)
4.0 - 0.157
Degree of bending
135.0
Net weight (g-lb)
27.0 - 0.06
RoHS compliant
yes
