High Precision Cutters

ES5341.CR.BG

High precision Ergo-tek Slim Cutters - Small Tapered head, flush. OAL: 120mm - 4.72". ESD safe

Documents

Datasheet Download Grip handle material TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

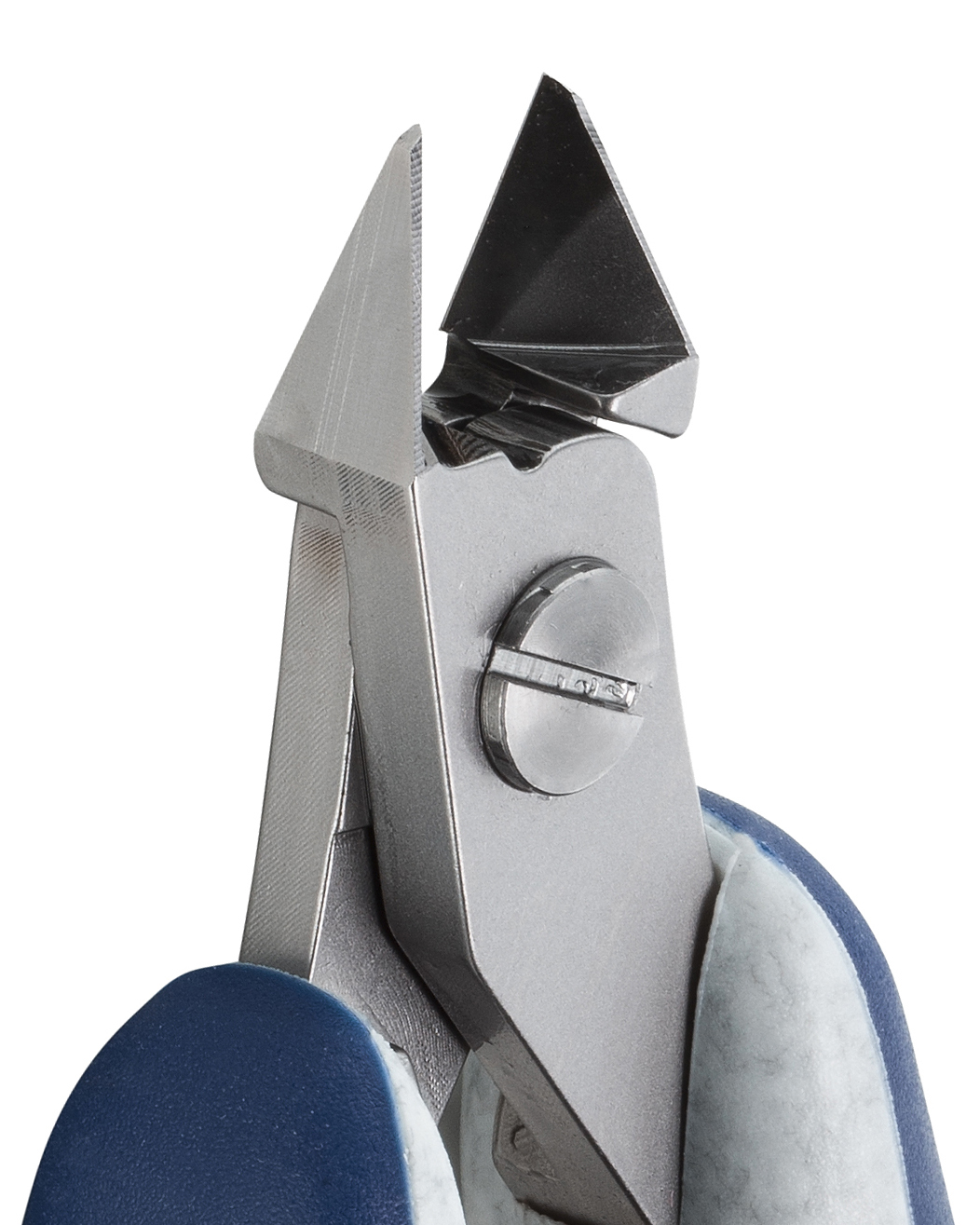

The 5341 is a high precision cutter belonging to the small tapered cutter family.This type of geometry and head dimensions offer an advantage to access small areas. The flush cutting edge is suitable to perform clean cuts with some tolerances. The 5341 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

Product Details

Category

High Precision Cutters

ESD safe

yes

Body material

100Cr6

Grip handle material

Ergo-tek Slim - TPE + PP

Body coating/ finishing

Sandblasted

Product width (mm - in)

60.00 - 2.362

Product height (mm - in)

18.00 - 0.709

Head shape

Tapered

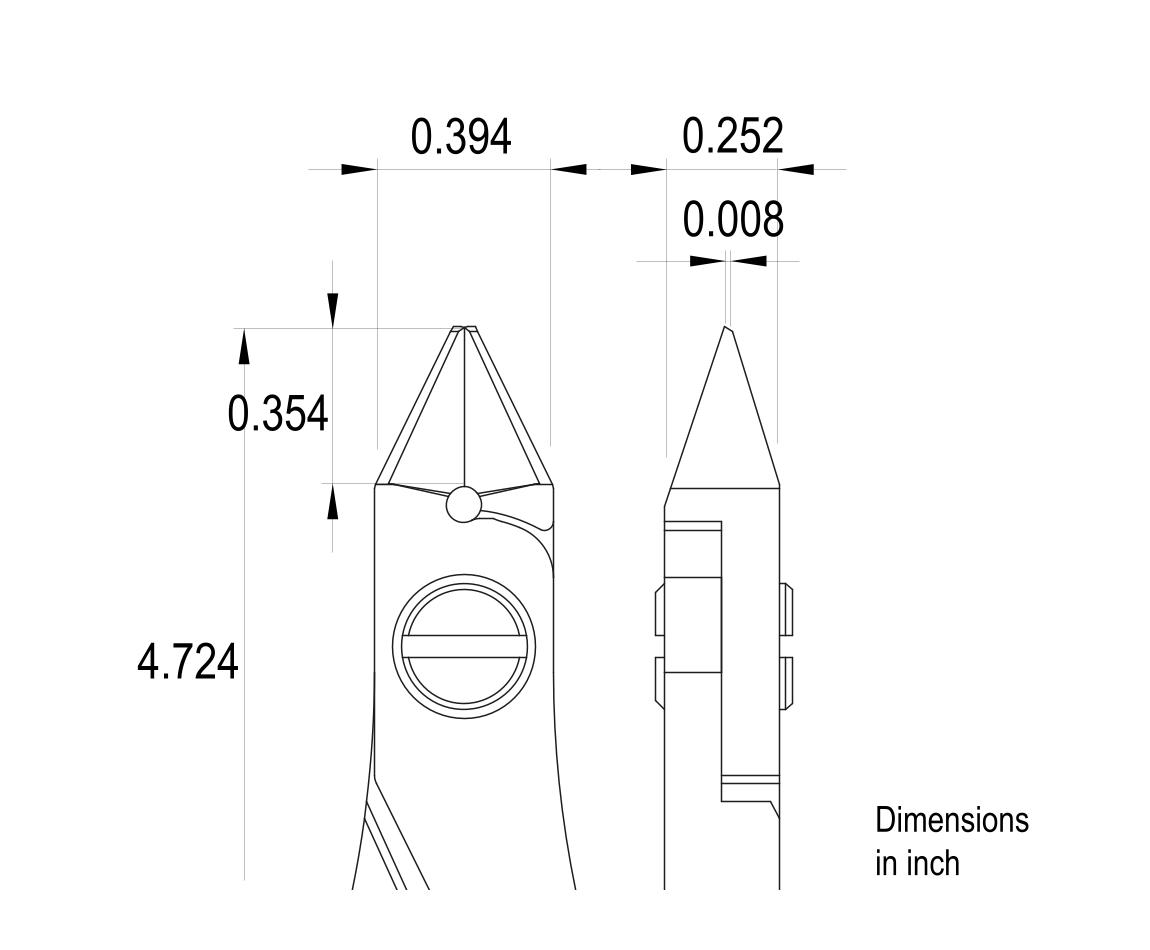

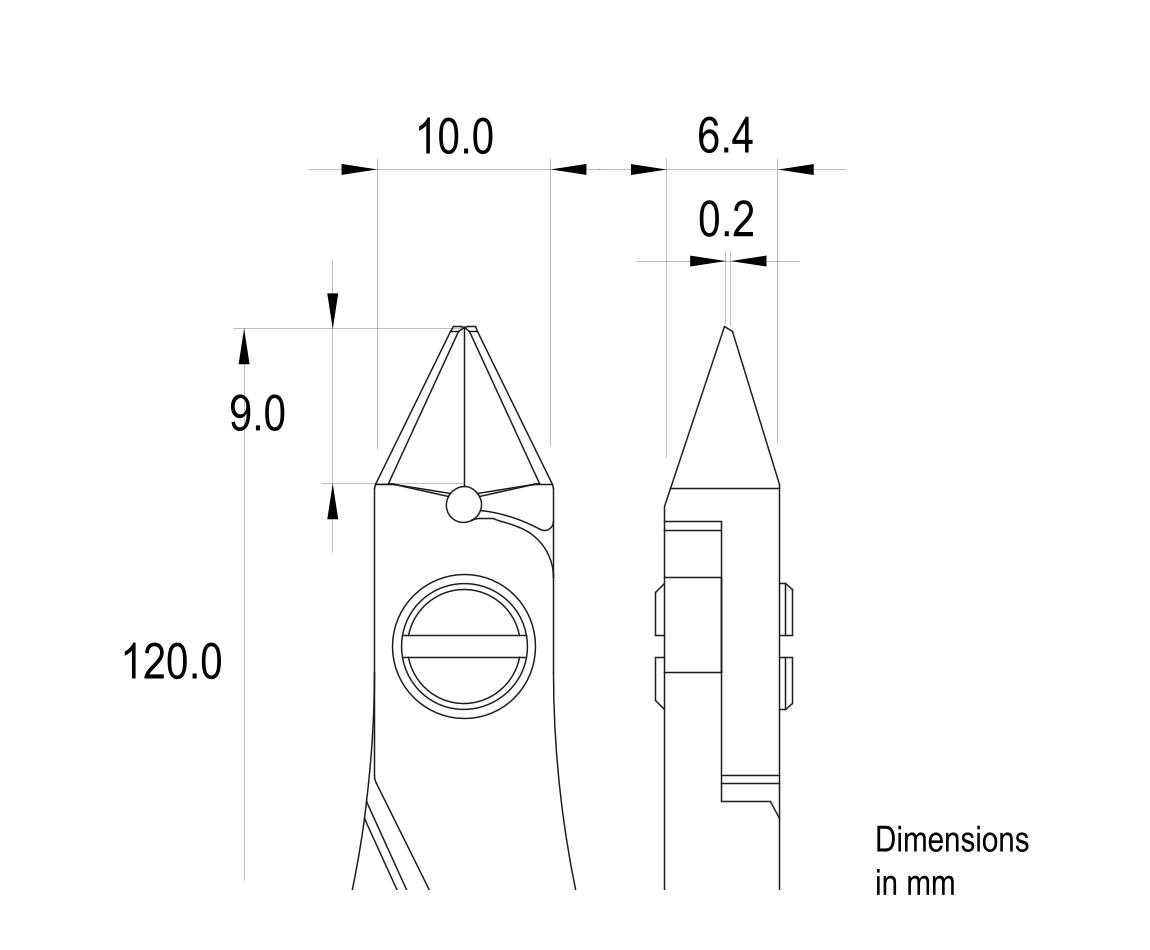

Head width (mm - in) - C

10.00 - 0.394

Size/type

Small

Cutting edges

Flush

OAL (mm - in) - A

120.00 - 4.724

Head/Jaw length - B (mm - in)

9.00 - 0.354

Head thickness (mm - in) - D

6.40 - 0.252

Tip thickness - F (mm - in)

0.20 - 0.008

Cutting capacity soft (mm)

0.10-1.20

Cutting capacity soft (AWG)

38-17

Cutting capacity medium (mm)

0.10-1.00

Cutting capacity medium (AWG)

38-18

Net weight (g-lb)

81.0 - 0.179

RoHS compliant

yes
