TEK-SCOPE-PLUS Visual inspection | HD inspection system Full High definition desk optical inspection system, 46-460x, built-in LED lights, ergonomics. ESD safe

TEK-SCOPE PLUS VIDEO       TEK-SCOPE PLUS TUTORIAL VIDEO



Ideal-tek’s TEK-SCOPE PLUS auto focus FHD camera provides optical magnification of 46x (27” monitor), and digital magnification up to 460x (92x recommended - 27’’monitor). TEK-SCOPE PLUS produces high quality distortion free up to 1080p FHD images with no delay and with excellent depth of field.

LED lights give users shadow-free illumination. The large 310 mm working distance enables inspection of a wide variety of objects. TEK-SCOPE PLUS has to be connected to a monitor.*

DisplayPort Output: Live-streaming images on your Monitor (FHD 1920x1080)

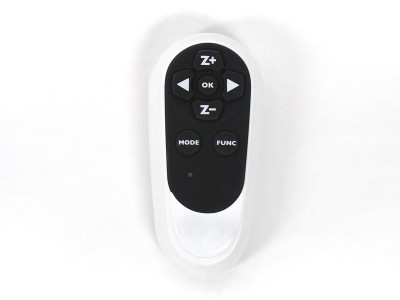

Use the remote control to zoom in and out, turn auto focus on or off, fine tune your focus, and much more all with a touch of a button. Simply connect the DisplayPort cable and run.

Save your images directly on USB stick
Snap shot mode. No computer needed. Just connect a USB stick to your TEK-SCOPE PLUS and press MODE button for few seconds on the remote.

USB Output: Live-streaming images on your PC (FHD 1920x1080)
Use the software toolbar to draw, take measurements, make image comparison and more. The software is preinstalled on the included USB flash drive or can be downloaded from www.ideal-tek.com. No drivers, no product keys necessary, simply install and run.

Ethernet Connection
Ethernet connection enables simultaneous screen sharing using the same IP address.


MAIN TEK-SCOPE ADVANTAGES

  • Less physical stress than binocular microscopes
  • User friendly system
  • Longer working distances no risk of board contact. Sufficent clearance for assembly, repair and rework
  • Auto focus frees hands and allows quick inspection of objects at different heights and magnifications
  • Larger depth of field for easier and quicker work
  • Remote control of magnification, focus, brightness, etc.
  • Save images directly on USB stick, no PC needed
  • Ethernet connection to share screens simultaneously

SOFTWARE
TEK-SCOPE PLUS software download
No drivers, no product keys necessary, simply install and run.

With TEK-SCOPE PLUS software you can control the unit from the PC, capture pictures and video, take measurements and draw on the  items being inspected. For detailed information read the complete user manual.

TEK-SCOPE PLUS leaflet
TEK-SCOPE PLUS User manual

*Monitor not included

Documents
Related products
Information request about this product
Market segment
Electronics
Watchmaking & Jewellery
Microscopy & Laboratory
Medical Device
Beauty
Product Details
Title
Value
Market - MEDICAL DEVICE
yes
Market - LIFE SCIENCE & MICROSCOPY
yes
Market - ELECTRONICS
yes
Market - WATCHMAKING & JEWELRY
yes
Market - BEAUTY
yes
Category
HD inspection system
Kit
no
ESD safe
yes
Product OAL (mm - in)
450.00 - 17.717
Title
Value
Product width (mm - in)
170.00 - 6.693
Product height (mm - in)
370.00 - 14.567
tip thickness 2 (mm)
65
tip width 2 (mm)
170
Net weight (g-lb)
4500 - 9.921
RoHS compliant
yes
230 V AC / power supply
yes
Euro plug
yes
