Plastic Replaceable Tip Tweezers

272CCFR.SA.1

Plastic replaceable tip tweezers - Carbon fiber - tips: straight, fine, squared, flat (#A272CF). OAL: 115mm - 4.53". ESD safe

Documents

Datasheet Download Tip material TDS: Download Body material TDS: Download

Where to buy

Information Request

Information request about This product

Where to buy

Type 272CF Plastic replaceable tip tweezers are suitable to applications which require holding a big component firmly. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.

Product Details

Category

Plastic Replaceable Tip Tweezers

Tip style

272

Tip features

fine, squared, flat

Tip type

straight

Reverse action

no

ESD safe

yes

Body material

SA

Tip material

CF

Body coating/ finishing

Sandblasted

Product OAL (mm - in)

115.00 - 4.528

Product width (mm - in)

10.00 - 0.394

Product height (mm - in)

16.00 - 0.63

Tip length (mm - in)

27.00 - 1.063

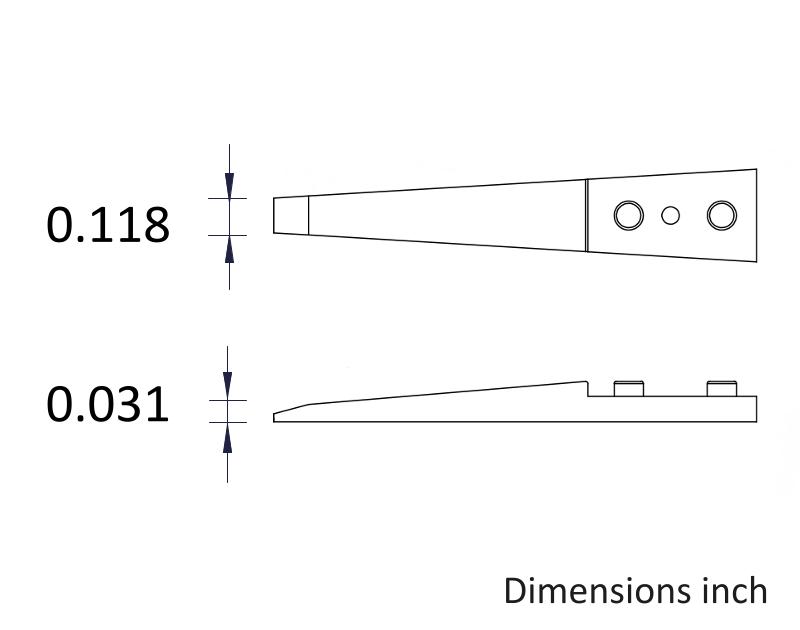

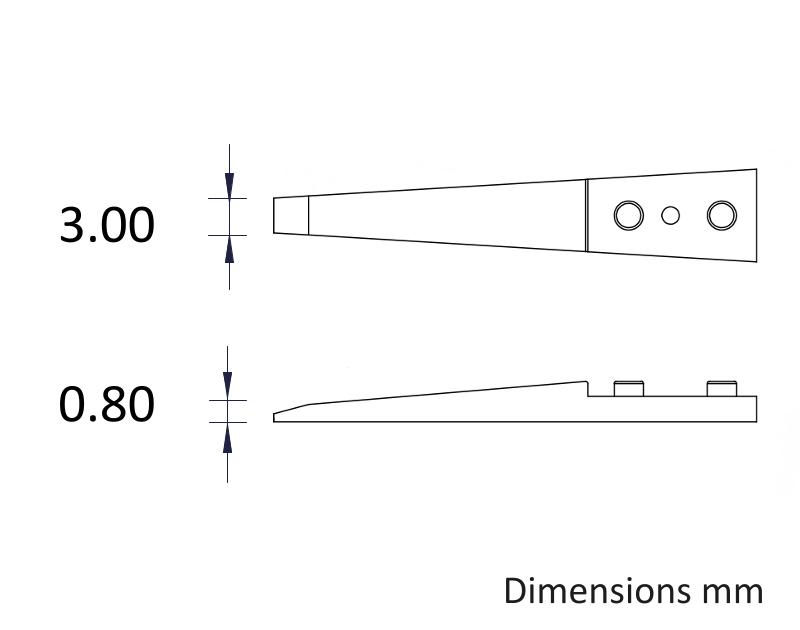

Tip thickness (mm - in)

0.80 - 0.031

Tip width (mm - in)

3.00 - 0.118

Tip opening gap (mm - in)

8.0 - 0.315

Net weight (g-lb)

14.0 - 0.031

RoHS compliant

yes
