Home
Tweezers
Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

3XCPR.SA.1

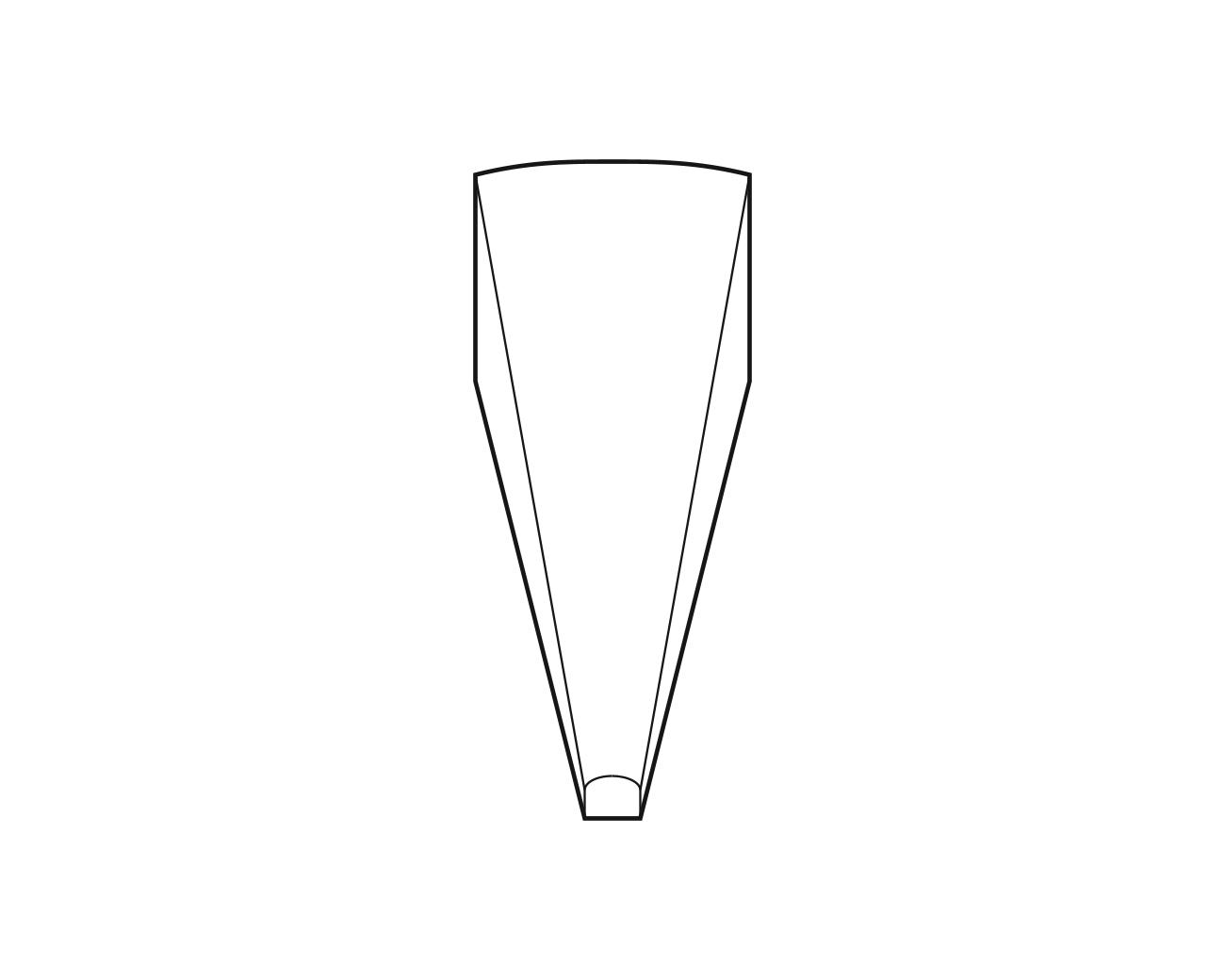

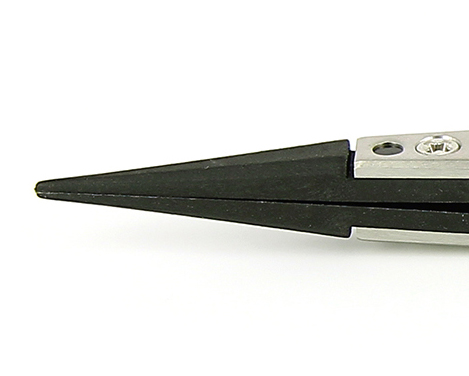

Plastic replaceable tip tweezers - Carbon PEEK - Reverse action - tips: straight, fine, pointed (#A3CP). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 3XCF Plastic replaceable tip tweezers are suitable to applications which require holding a flat component firmly. Reverse action helps to hold the component firmly in a resting position. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers ESD and non-scratching properties combined with excellent high temperature resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
3
Tip features
fine, pointed
Tip type
straight
Reverse action
yes
ESD safe
yes
Body material
SA
Tip material
CP
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
10.00 - 0.394
Product height (mm - in)
10.00 - 0.394
Tip length (mm - in)
26.00 - 1.024

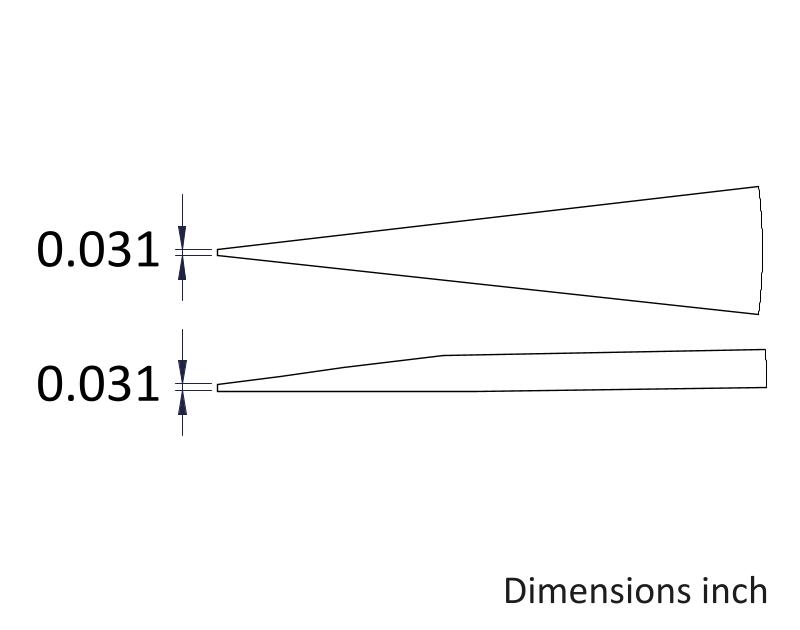

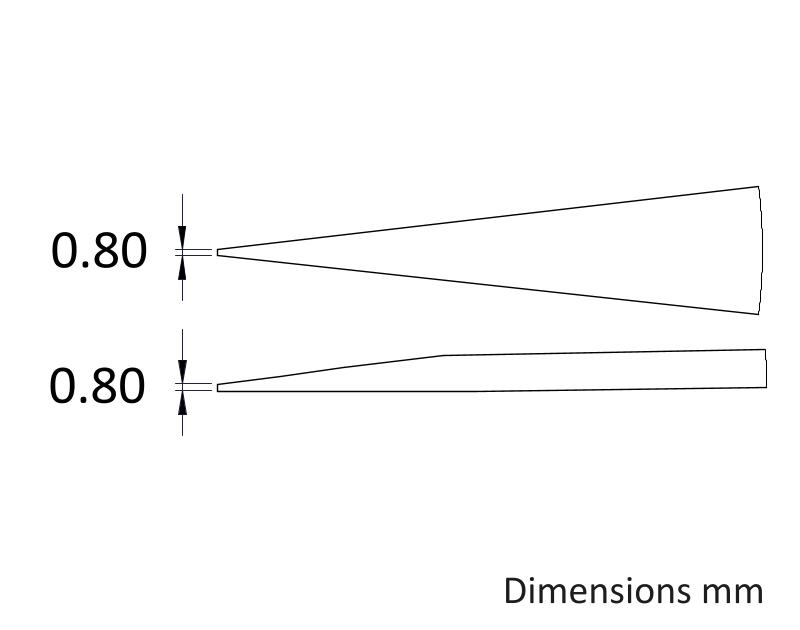

Tip thickness (mm - in)
0.80 - 0.031
Tip width (mm - in)
0.80 - 0.031
Tip opening gap (mm - in)
8.0 - 0.315
Net weight (g-lb)
14.0 - 0.031
RoHS compliant
yes
