Plastic Replaceable Tip Tweezers
Where to buy

Plastic Replaceable Tip Tweezers

242BCCFR.SA.1

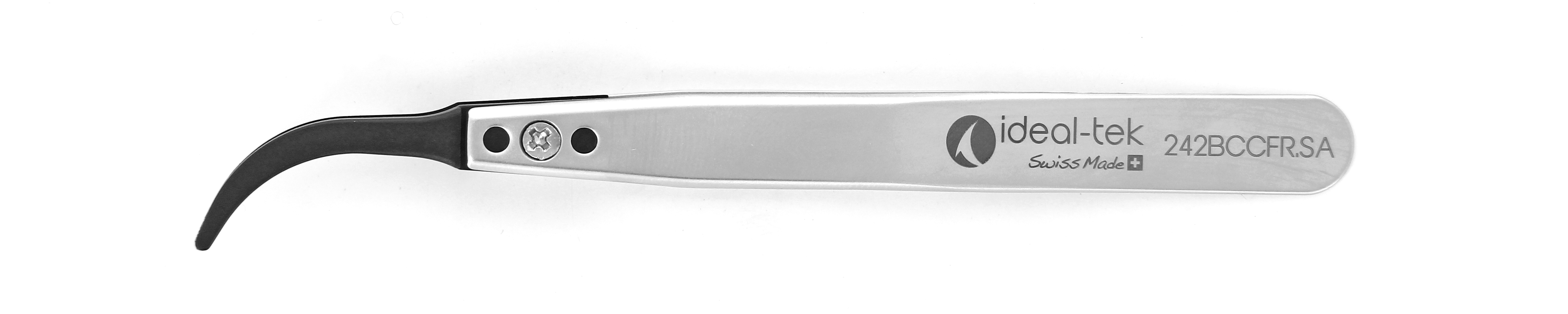

Plastic replaceable tip tweezers - Carbon fiber - tips: curved, fine, round, flat (#A242BCF). OAL: 115mm - 4.53". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy

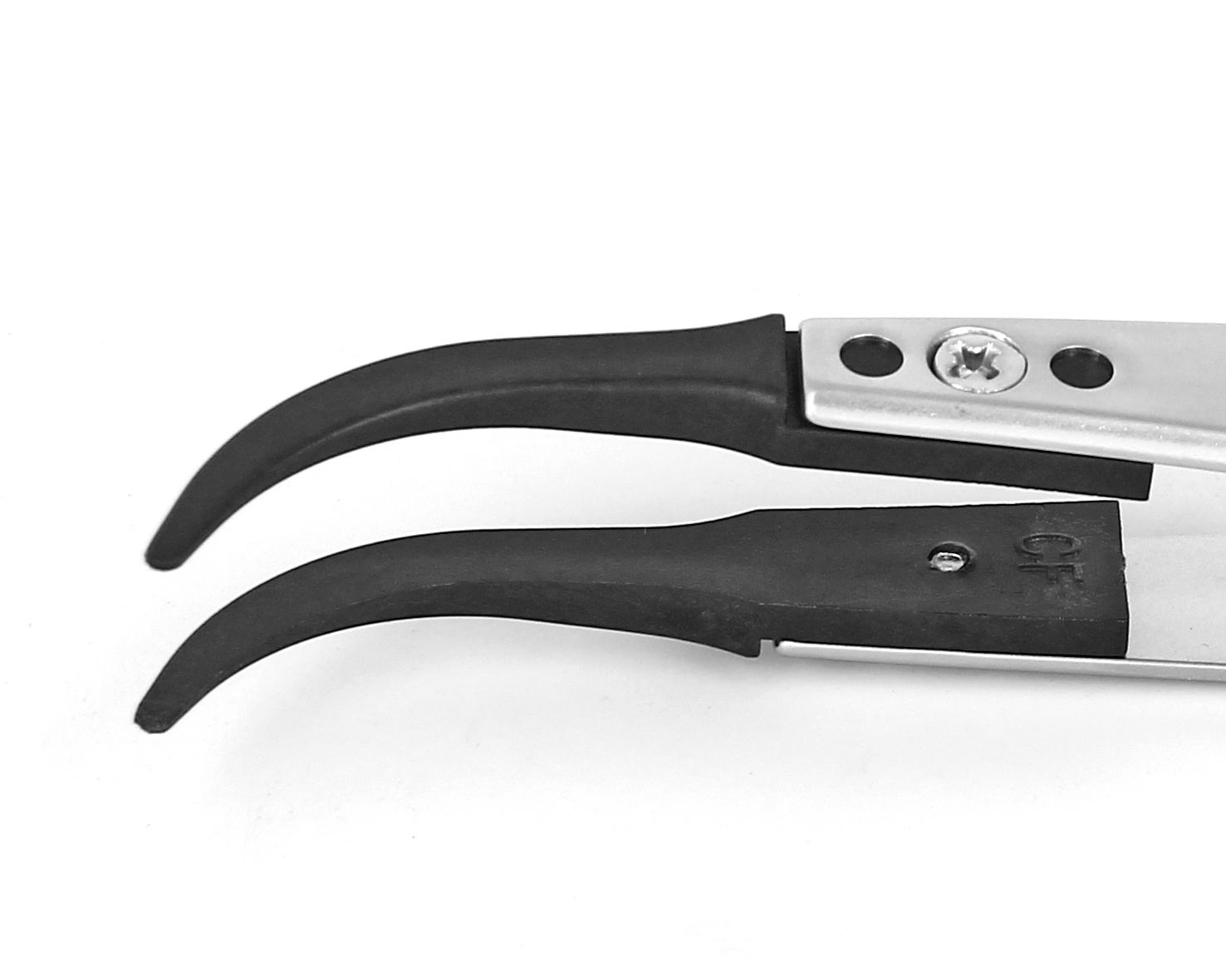

Type 242BCF Plastic replaceable tip tweezers are suitable to applications which require holding a small component firmly. The curved geometry provides maximum visibility and increased ergonomics. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
242B
Tip features
fine, round, flat
Tip type
curved
Reverse action
no
ESD safe
yes
Body material
SA
Tip material
CF
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
115.00 - 4.528
Product width (mm - in)
14.00 - 0.551
Product height (mm - in)
15.00 - 0.591

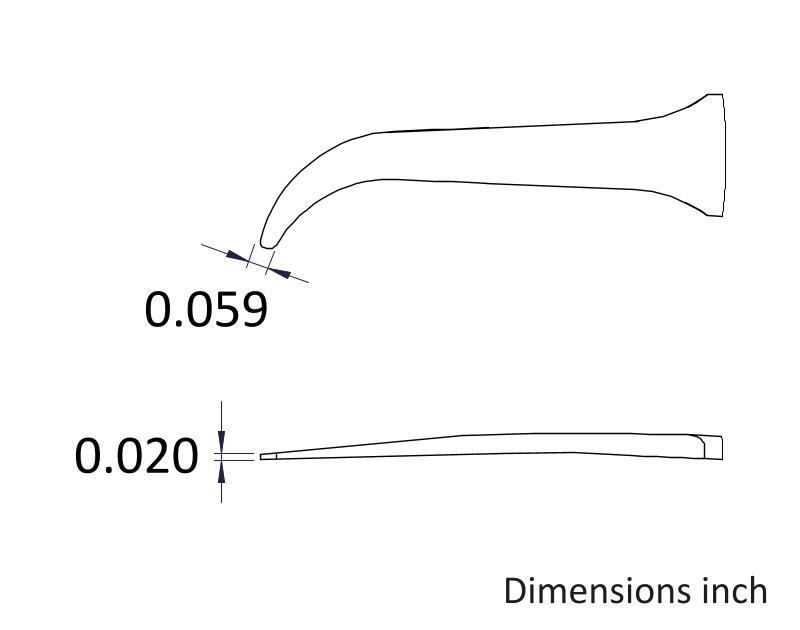

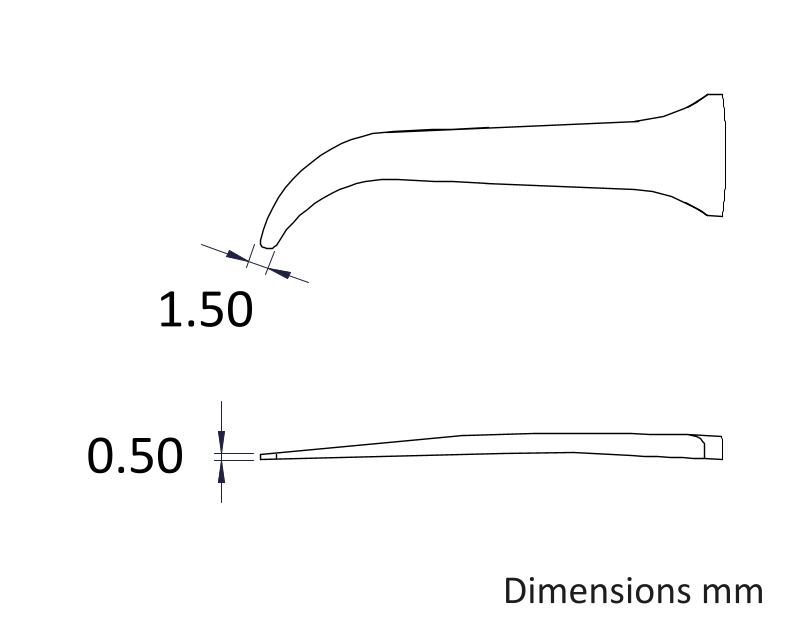

Tip length (mm - in)
25.00 - 0.984
Tip thickness (mm - in)
0.50 - 0.02
Tip width (mm - in)
1.50 - 0.059
Tip opening gap (mm - in)
8.0 - 0.315
Degree of bending
30.0
Net weight (g-lb)
14.5 - 0.032
RoHS compliant
yes
