Plastic Replaceable Tip Tweezers

[email protected]

Plastic replaceable wafer tip tweezers - Carbon PEEK - tips: handling 4", top fingers, stepped bottom paddle (#A4WFCP@). OAL: 130mm - 5.12". ESD safe
Documents
Datasheet Download Tip material TDS: Download Body material TDS: Download
Where to buy
Information Request
Information request about This product
Where to buy
Type 4WFCP Plastic replaceable tip tweezers are suitable to delicate applications which require holding a 4-inch flat component firmly. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers ESD and non-scratching properties combined with excellent high temperature resistance.
Product Details
Category
Plastic Replaceable Tip Tweezers
Tip style
4WF
Tip features
wafer
Tip type
straight
Reverse action
no
Component diameter/ cutting capacity (mm)
3
ESD safe
yes
Body material
SA
Tip material
CP
Body coating/ finishing
Sandblasted
Product OAL (mm - in)
130.00 - 5.118
Product width (mm - in)
12.00 - 0.472
Product height (mm - in)
18.00 - 0.709
Tip length (mm - in)
25.00 - 0.984
Tip width (mm - in)
12.00 - 0.472

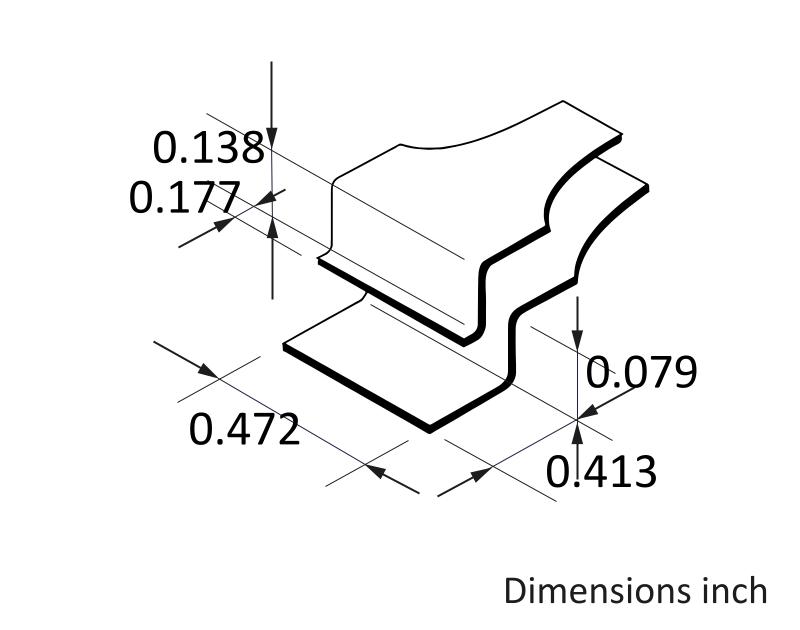

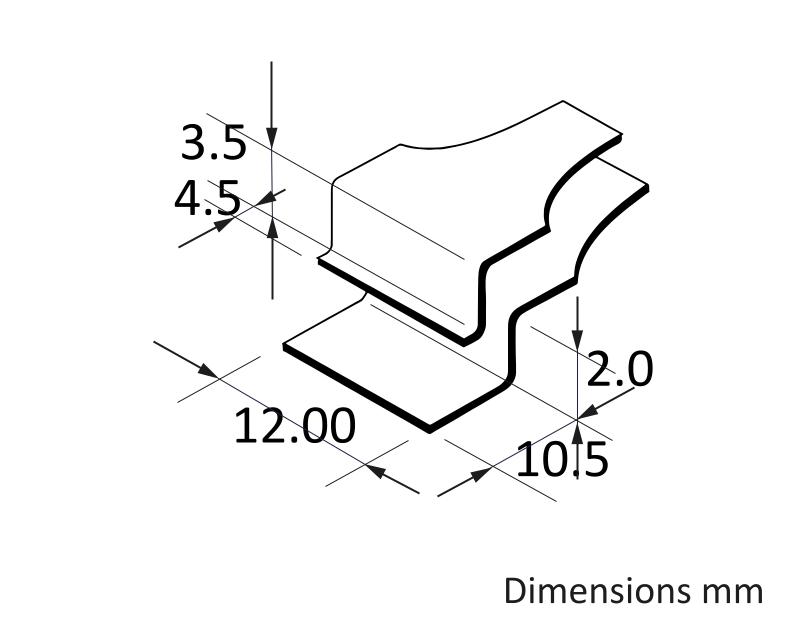

Wafer B (mm - in)
10.5 - 0.413
Wafer C (mm - in)
2.0 - 0.079
Wafer D (mm - in)
3.5 - 0.138
Wafer E (mm - in)
4.5 - 0.177
Tip opening gap (mm - in)
8.0 - 0.315
Net weight (g-lb)
18.0 - 0.04
RoHS compliant
yes
